Pullmaster M12 Series - Page 111

PAGE 26
I1017-1-E
245 REV.051117

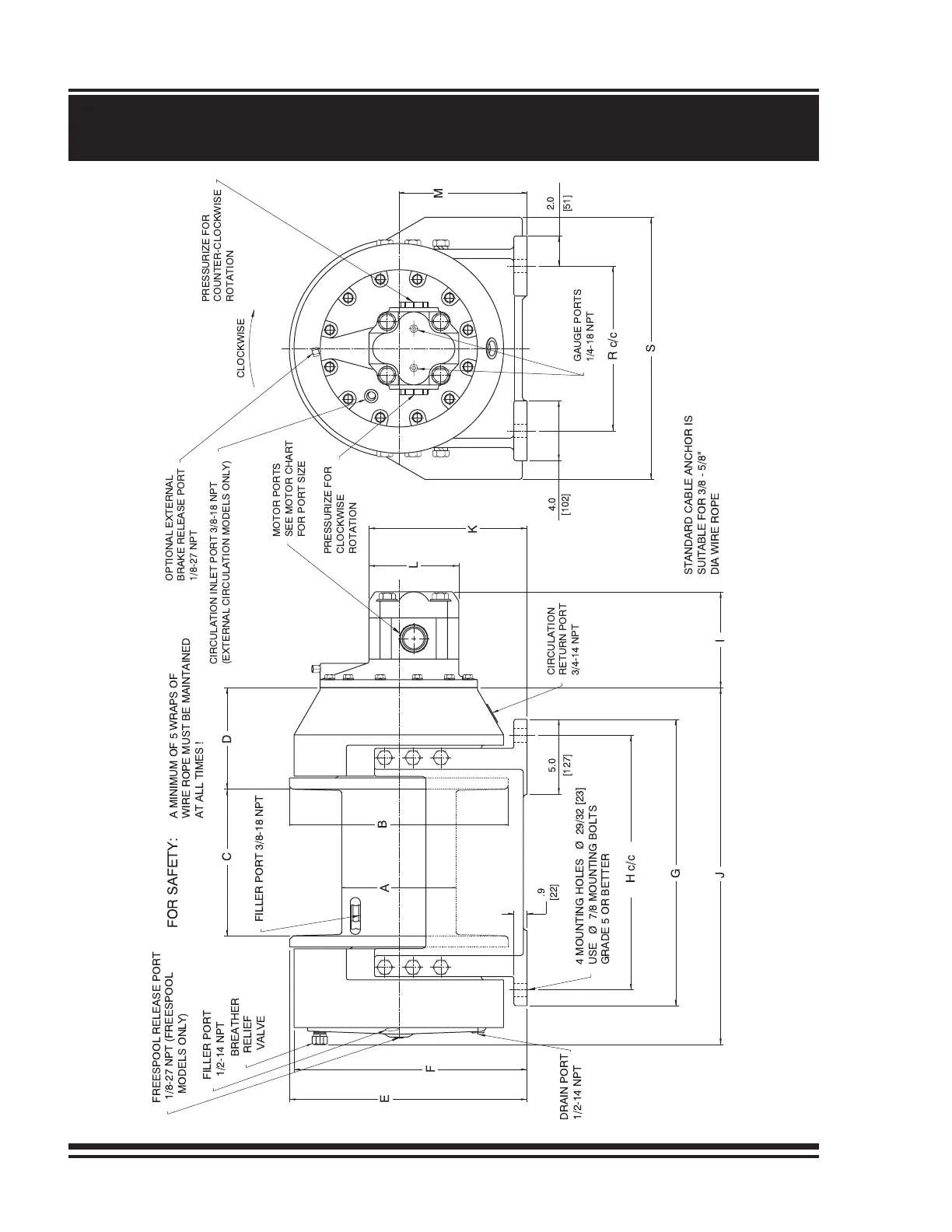

INSTALLATION DIMENSIONS
[51]
2.0
[127]
5.0
[102]
4.0
.9
[22]
CIRCULATION INLET PORT 3/8-18 NPT (EXTERNAL CIRCULATION MODELS ONLY)
J I
G
H c/c
C D
B
A
F
E
K
L
M
R c/c
S
A MINIMUM OF 5 WRAPS OF WIRE ROPE MUST BE MAINTAINED AT ALL TIMES !
4 MOUNTING HOLES Ø 29/32 [23] USE Ø 7/8 MOUNTING BOLTS GRADE 5 OR BETTER
MOTOR PORTS SEE MOTOR CHART FOR PORT SIZE
GAUGE PORTS 1/4-18 NPT
CIRCULATION RETURN PORT 3/4-14 NPT
FILLER PORT 3/8-18 NPT
FILLER PORT
1/2-14 NPT
BREATHER
RELIEF
VALVE
FREESPOOL RELEASE PORT
1/8-27 NPT (FREESPOOL
MODELS ONLY)
DRAIN PORT 1/2-14 NPT
OPTIONAL EXTERNAL BRAKE RELEASE PORT 1/8-27 NPT
PRESSURIZE FOR COUNTER-CLOCKWISE ROTATION
PRESSURIZE FOR CLOCKWISE ROTATION
CLOCKWISE
FOR SAFETY:
STANDARD CABLE ANCHOR IS SUITABLE FOR 3/8 - 5/8" DIA WIRE ROPE
