17
2.09.21.RH.rev A
ADJUSTING THE TURNTABLE CAM ARM ASSEMBLY
This adjustment will need to be made periodically. If you are experiencing a bump or “clunk” when starting or stopping,
or if the hitch is sliding up and down the way tubes when you are not hooked up to the trailer you can perform this
adjustment to reduce the noise and keep the hitch in the forward towing position when not trailering.
1. The Turntable Cam Arm Roller needs to be kept snug against the rear edge of the of the Cam Slot (see below).
2. To adjust, loosen the Jam Nut located on the Threaded Stop Assembly, under the Fifth Wheel Plate (on the side facing
the front of your truck).
3. Adjusting the Threaded Stop Assembly’s hex-shaped plate, will remove excessive play from between the Low Friction
Polymer Wear Plates and the Turntable Cam Arm Roller.
4. Turn the hex-shaped plate of the Threaded Stop Assembly by hand, adjusting incrementally, until resistance is felt
when pulling the Turntable Cam Arm Assembly aligned straight from front to back. While holding the hex-shaped
plate in place, tighten the Jam Nut with a wrench. The Cam Arm Assembly should be tight enough on Threaded Stop
Assembly that you can barely move it by hand.

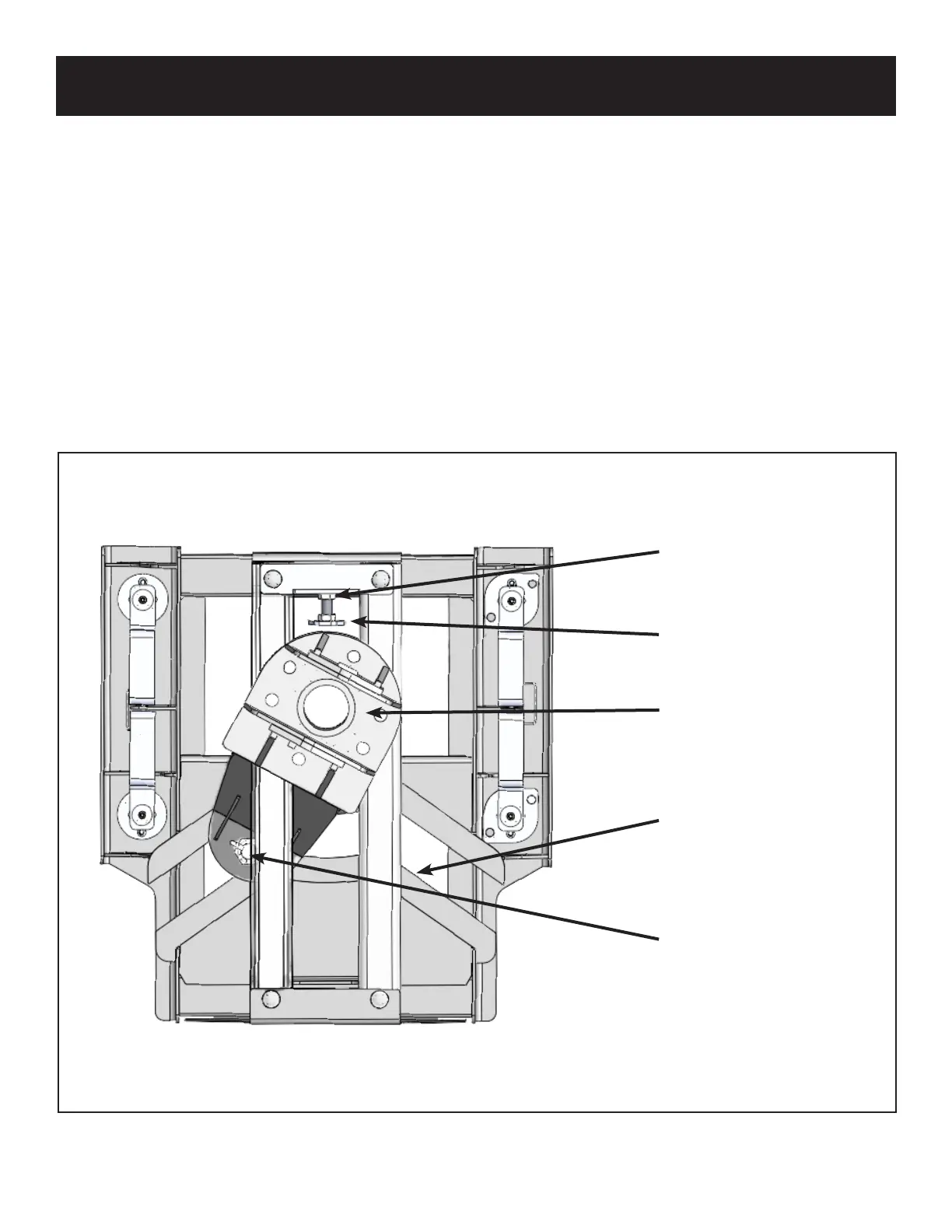

ROLLER
REAR EDGE OF
CAM SLOT
TURNTABLE CAM ARM
ASSEMBLY
THREADED STOP
ASSEMBLY
THREADED STOP
ASSEMBLY JAM NUT
