Cable Entry
The IMP+
IMP+IMP+
IMP+ Series has two M16 cable entries, fitted with a suitable gland, to
ensure moisture protection is maintained.
Terminal Connection Details
The IMP+
IMP+IMP+
IMP+’s unique design allows for both 3 wire and 2 wire (loop powered)
configuration within the same unit the terminal connections for both
configurations are as detailed below. Wiring details are also given on the
terminals under the access cover.

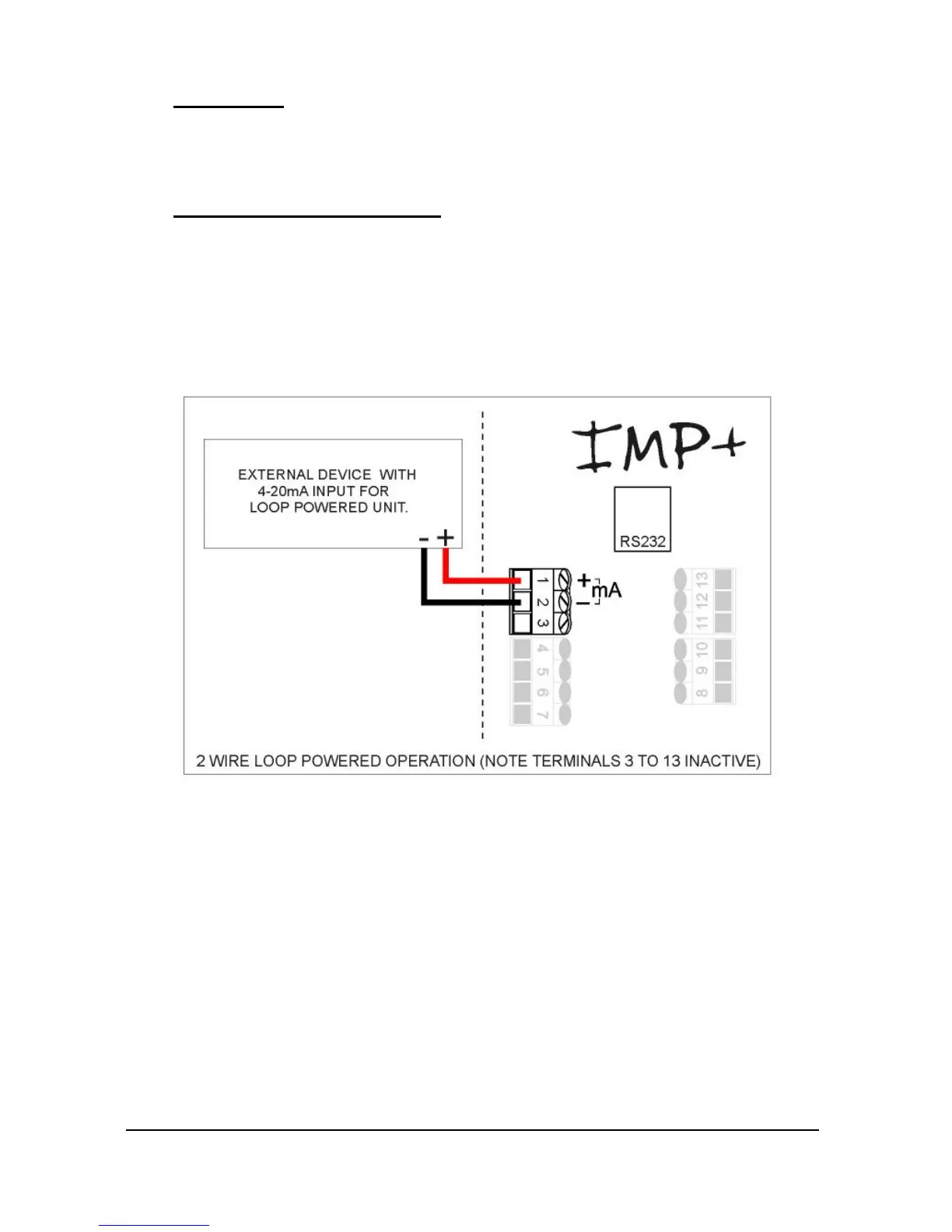

2 Wire (loop powered)
