MAINTENANCE
Instructions for replacing the tube set
13

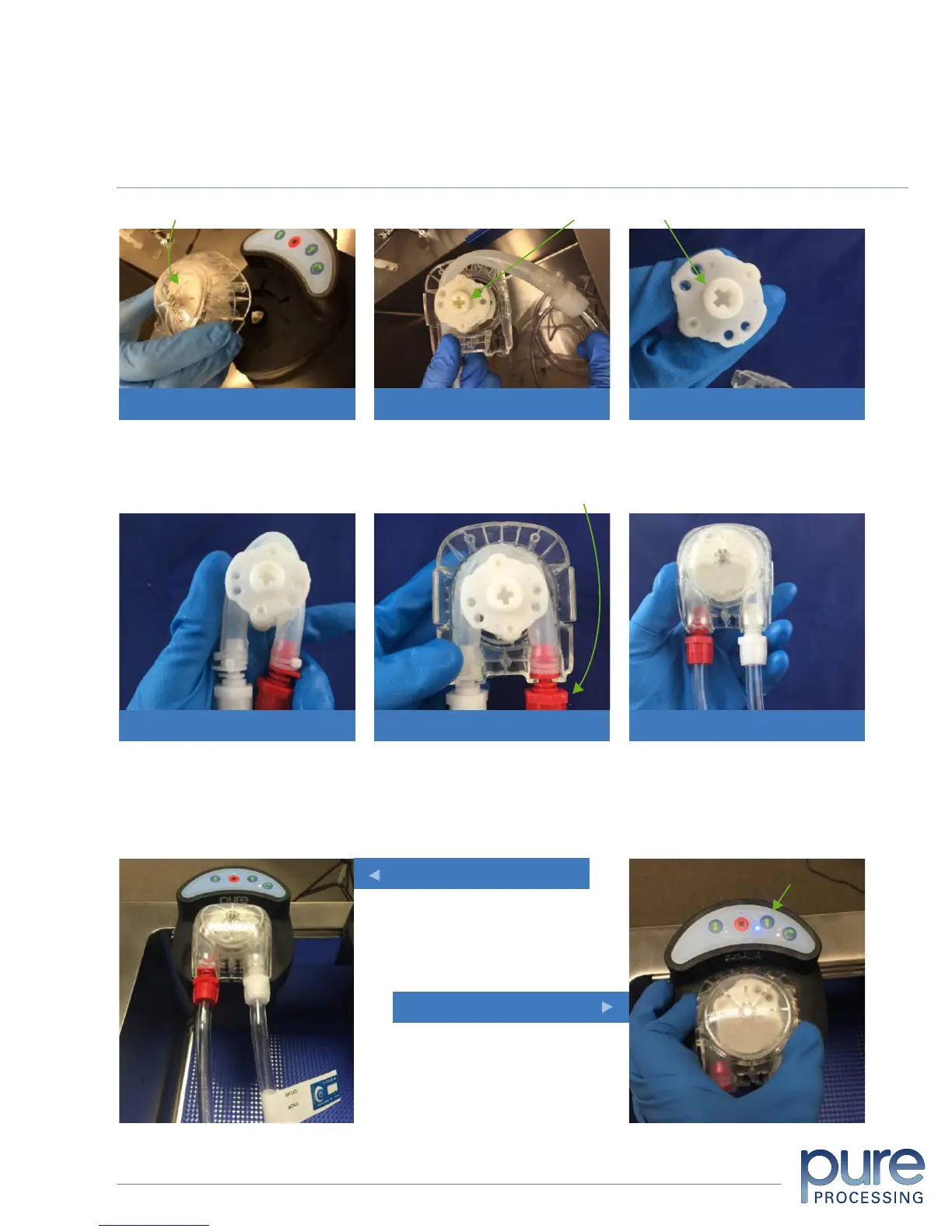

Step-by-Step Instructions for Replacing a Tube Set
PHONE 877.718.6868 WEB www.pure-processing.com
Thread your new tube set
around the Tube Rotor (as
pictured above). It is important
that the red tube component is
on the right side in this step.
STEP 4
Place the new tube set and rotor
inside the pump cap. Properly
align the tube set fittings so that
they are properly situated in the
cap fittings.
STEP 5
Flip the Cap right-side up.
Notice the red component is on
the left side now.
STEP 6
TUBE SET/CAP FITTINGS
Remove the Pump Cap by
pressing on both side tabs and
pulling gently.
STEP 1
Flip the Pump Cap upside down
(as pictured above) and unthread
the tubing from the Tube Rotor.
STEP 2
Now that the old set has been
taken out, remove the Tube
Rotor from the Pump Cap.
STEP 3
PUMP CAP TUBE ROTOR
Press on both sides of the
Pump Cap and place it back
onto the base, making sure
that it snaps down fully.
FINAL STEP
If you experience difficulty
snapping the cap into place, try
activating the “forward flush”
button and then proceed to
push the cap down until it
fastens into place properly.
TIP
FORWARD FLUSH
FlexiPump™ Independent Flushing System User Manual
© Pure Processing, LLC. 2017. All rights reserved.
