Purelogic SMC4-4-16A16B User Manual

SMC4-4-16A16B. Four-axis motion controller
Edition of 03.08.2016
23
www.purelogic.ru8 (800) 555 63 74
On XYZ axes simultaneously cleared: G54P * (except 1,2,3,4,for any value , not fill P also)

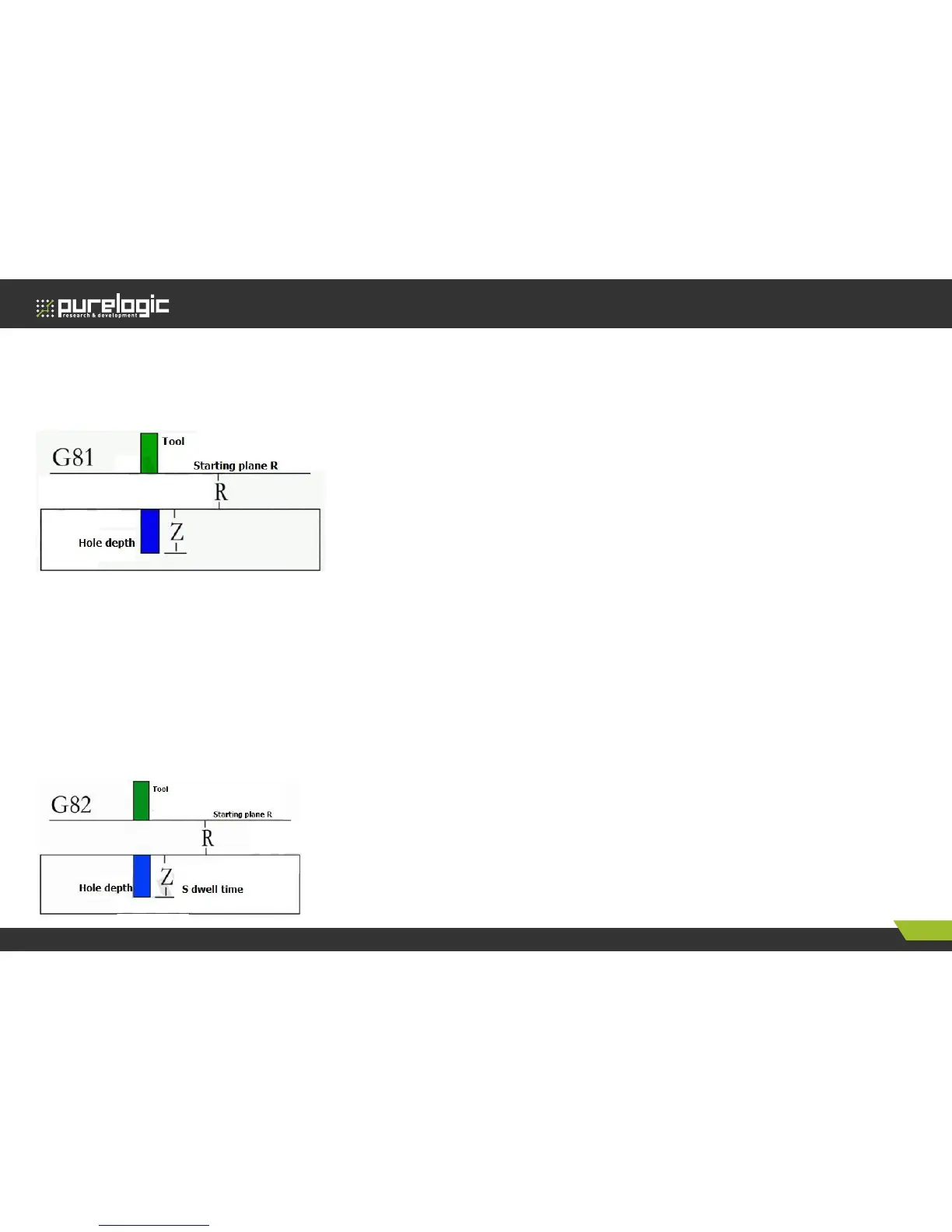

G81: (drill instruction)
Format: G81X .. Y.. Z.. R.. F..
X.Y represent end coordinates, Z represents the depth of machining F processing speed
R represent operating plane (safe altitude) at the beginning, represent and Z Terminal point after returned
Case: (coordinates (20.0), (20.20), (0.20), (0,0) four drill holes 5mm in depth, the two safety plane, a speed of 200)
G0X0Y0Z5
G81X20YOR2Z-5F200
G81X20Y20R2Z-5F200
G81X0Y20R2Z-5F200
G81X0Y0R2Z-5F200
G0X0Y0Z5
G82: (drilling instruction)
Format: G83X .. Y.. Z.. R.. P.. F....
X, Y represent Terminal point coordinates,Z represents the depth of machining, S represents dwell time at the hole bottom.
F processing speed
R represent theoperating plane of the beginning,and represent Z terminal point after returned.
