Purelogic SMC4-4-16A16B User Manual

SMC4-4-16A16B. Four-axis motion controller
Edition of 03.08.2016
24
www.purelogic.ru8 (800) 555 63 74
Case: (coordinates (20.0), (20.20), (0.20), (0,0) four drill holes 5mm in depth, the two safety plane, and one second stay at the hole bottom, a speed of
200)
G0X0Y0Z5
G82X20YOR2Z-5P1000F200
G82X20Y20R2Z-5P1000F200
G82X0Y20R2Z-5P1000F200
G82X0Y0R2Z-5P1000F200
G0X0Y0Z5

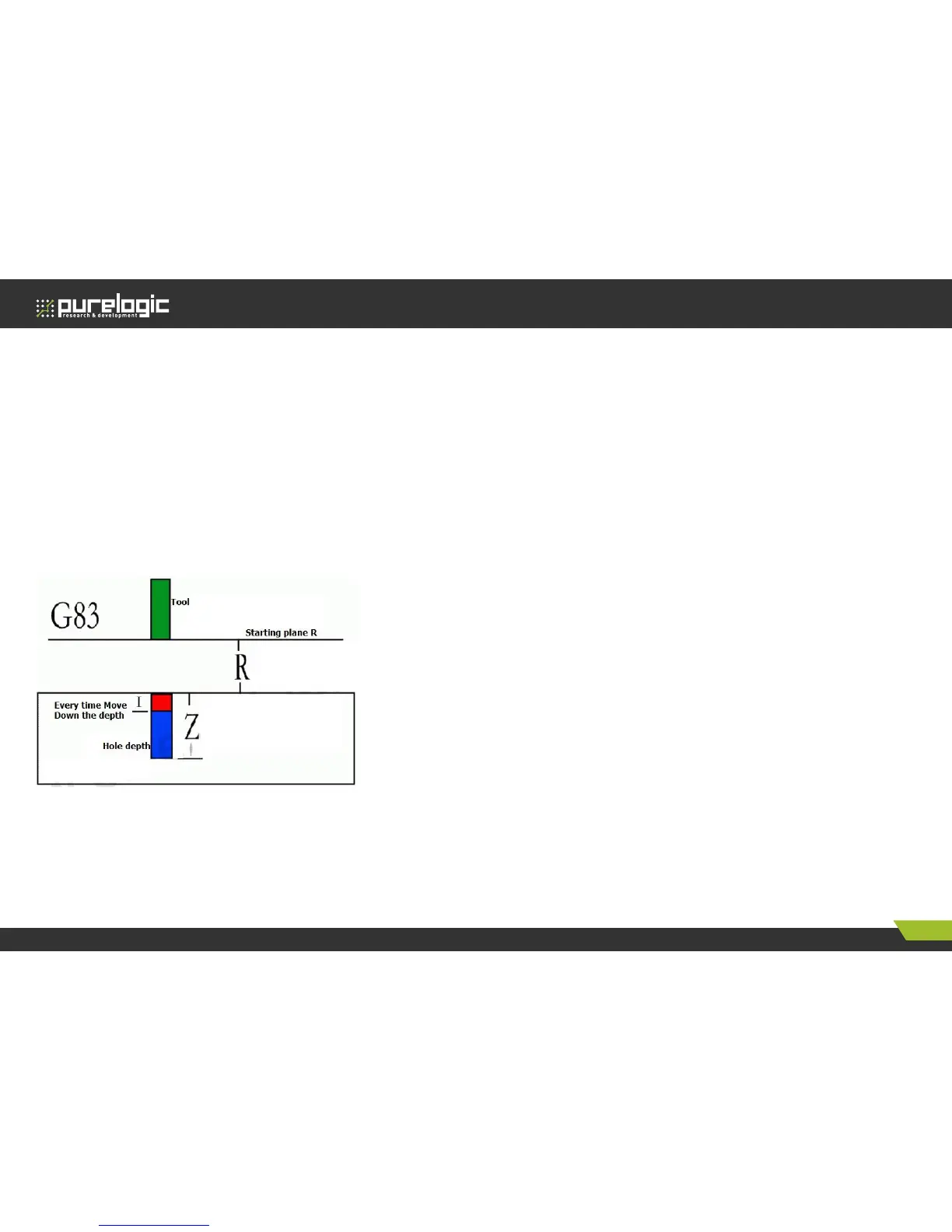

G83: (canned cycle drilling instruction)
Format: G83X .. Y. Z. R. I. F....
X, Y represent end coordinates, Z represents the depth of processing,I represents the displacement of each fall,it will be cut back action When
processed to I depth.
F processing speed
R represents the beginning of the start plane and said Z end after returned
