Purkeys DIRECT PLUS - Interior Light Power from 7-way Auxiliary Circuit

13
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
DIRECT NOSEBOX INSTALLATION GUIDE
ese interior light instructions apply if your preferred power source is the
7-way auxiliary circuit.
Refer to the images in this section to see how to wire the connections.
• e connection wires MUST be 10 AWG or larger.
• Connections MUST be made with ring terminals or eyelets.
• Make sure each fastened connection is torqued to at least 48 in-lbs.
• It is required that you insulate each terminal crimp.
INTERIOR LIGHT POWER FROM THE
7-WAY AUXILIARY CIRCUIT
DIRECT PLUS 7WAY INT LIGHT SOURCE CONNECTION

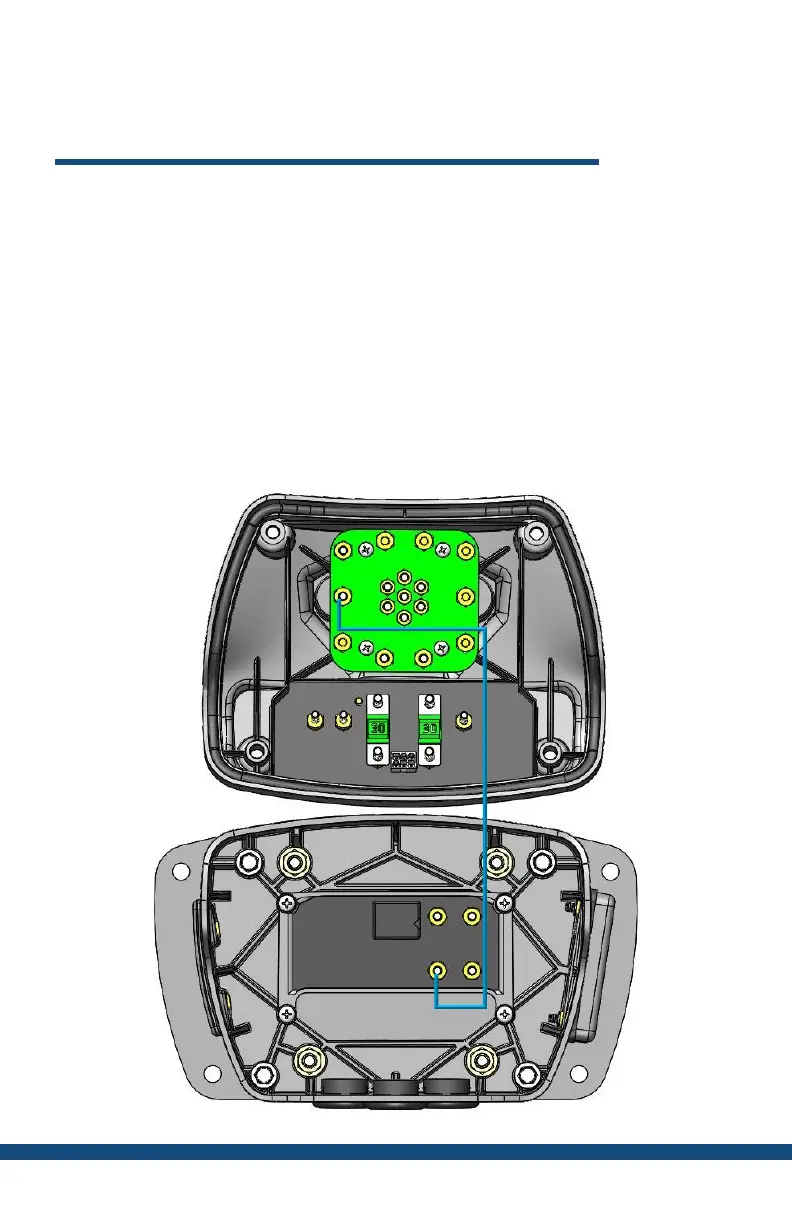

Direct Plus Diagram: 7-way Interior Light Connection
