Purkeys DIRECT PLUS - Main Harness Installation

7
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
DIRECT NOSEBOX INSTALLATION GUIDE

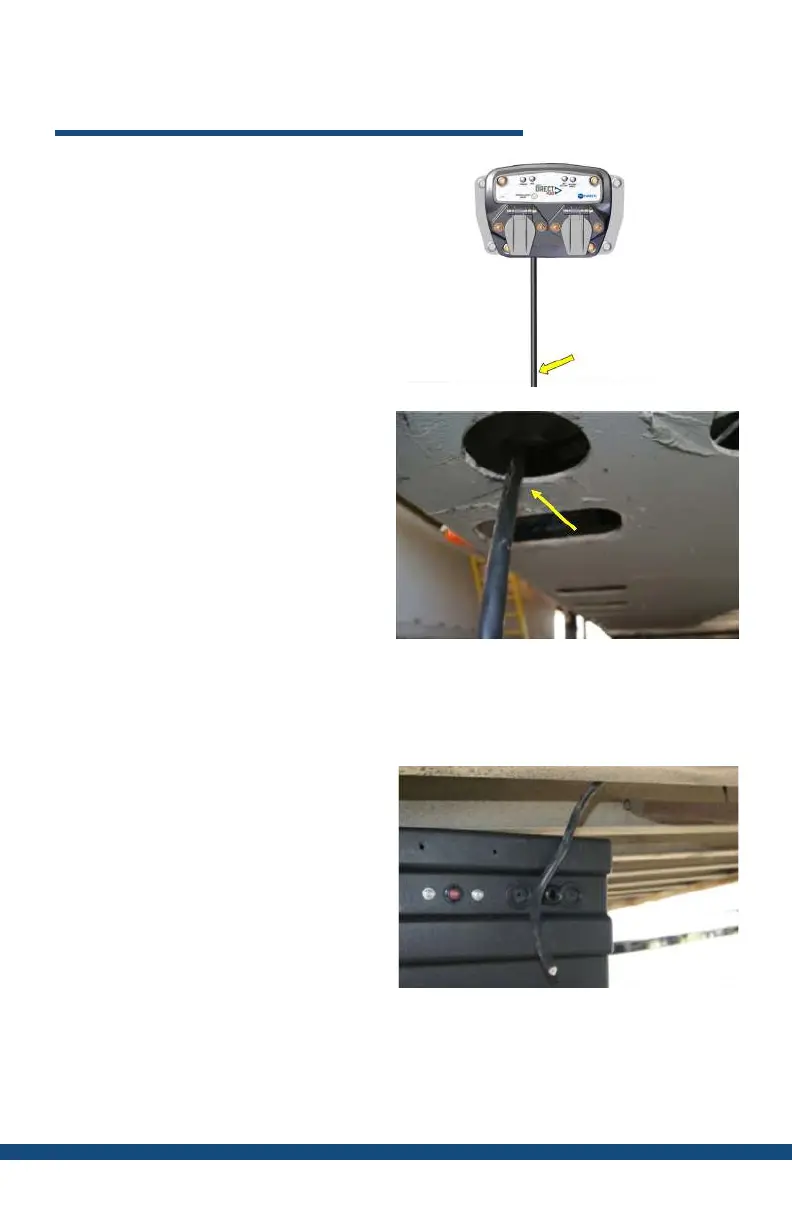

Step 1: Route the Direct jacketed
4-conductor main harness for
the DC/DC converter behind the
front plate then behind the header
plate through the air/electrical
tube to the center channel.
Step 2: Route the Direct jacketed
4-conductor main harness in the
center channel toward the back of
the trailer. Secure with wire ties or
cable clamps as you go.
Step 3: Once you are near the ligate
battery box, begin routing the
Direct jacketed 4-conductor main
harness into the ligate battery
box through a dome nut or rubber
grommet.
MAIN HARNESS INSTALLATION
Note: Place the cable clamps along the 4-conductor jacketed main harness
every 6 inches to ensure proper support for the cable. Avoid sharp edges
and possible chang points.
Note: Ensure that the jacketed 4-conductor main harness enters the ligate
battery box through a dome nut or rubber grommet to prevent chang the
harness, which could result in a possible electrical short in the system.
