DIRECT NOSEBOX INSTALLATION GUIDE
INTERIOR LIGHT INSTALLATION
WITHOUT SEVERE SERVICE
Step 2: Terminate the positive input with a #10 ring terminal and connect to
the Interior light input power stud inside the nosebox (see Figure 1).
ese interior light instructions apply if you are installing the Purkeys interior
light harness (Purkeys Part Number H-00522: 50  Interior Light Harness) to
power interior lights o of the ligate or auxiliary battery.

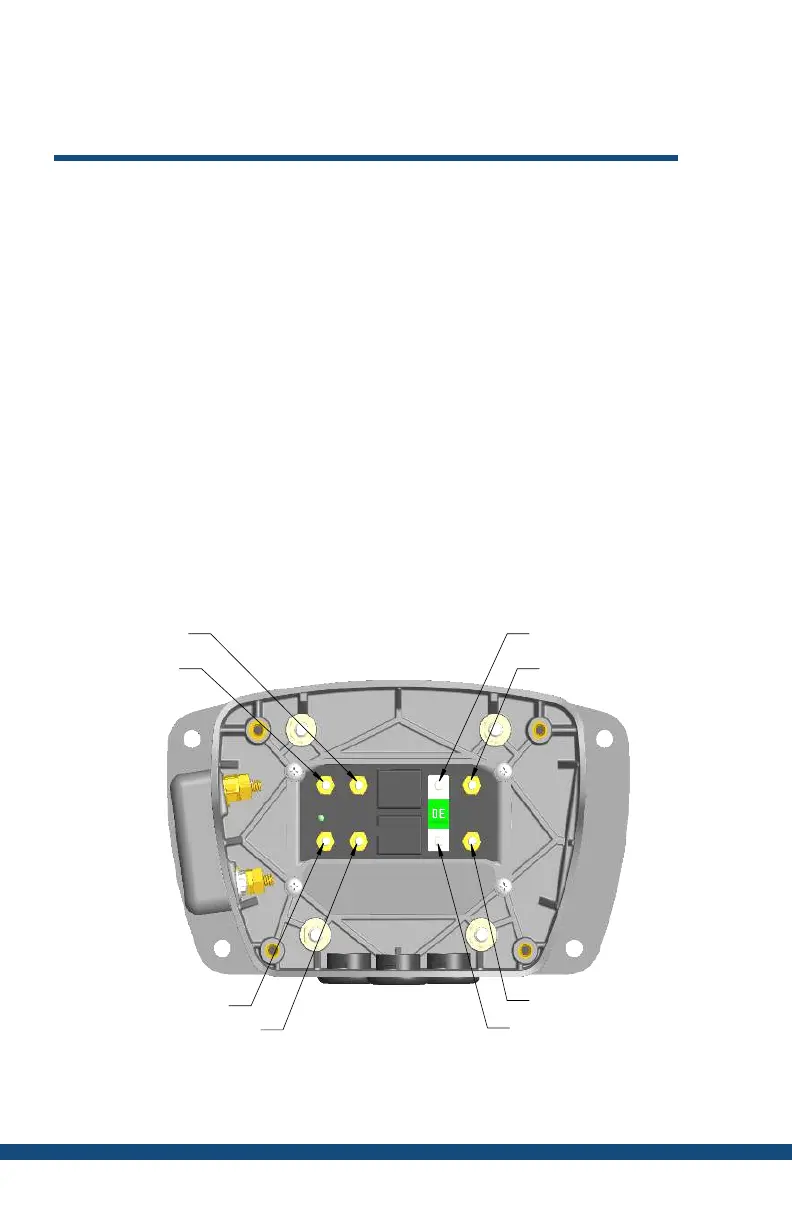

Reefer positive
Ground
Dual pole positive
Source
Interior light input power
Interior light output power
Light control
Fused power
Figure 1
Step 1: Route the Interior light input harness from the ligate/aux battery to
the nosebox and cut to length.
Installation Connections Inside the Nosebox:
Step 3: Terminate the negative input with a #10 ring terminal and connect to
the Ground pin inside the nosebox (see Figure 1).
Note: e Purkeys interior light harness (Purkeys Part Number H-00522:
50  Interior Light Harness) is sold separately as it is an optional device.
Note: Do NOT connect to the batteries until the interior light installation is
complete. Doing so may result in coming in contact with a live wire.
