Step 11: Position the heat shrink
over the crimps and apply heat to
the 4 terminals.

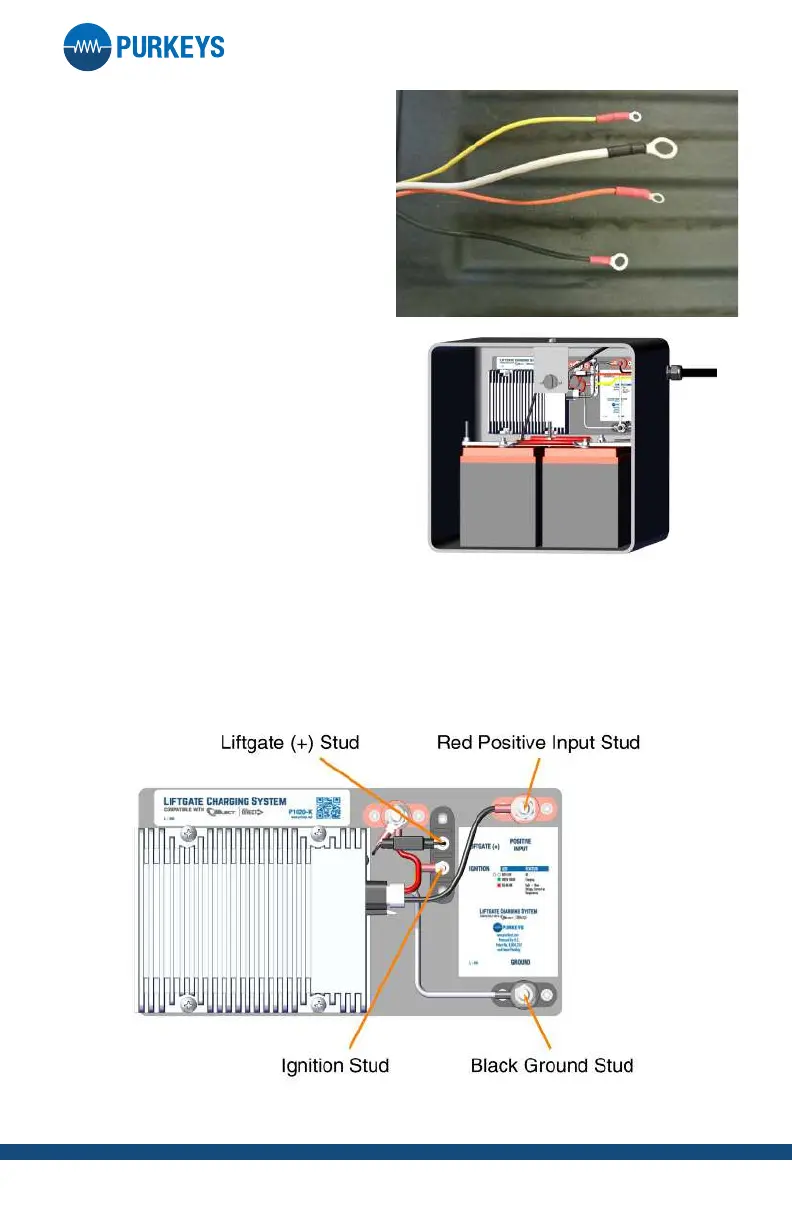

• Connect the 8-gauge black wire to the red positive input stud.
• Connect the 8-gauge white wire to the black ground stud.
• Connect the 14-gauge orange wire to the ligate (+) stud.
• Connect the 16-gauge yellow wire to the ignition stud.
Main Harness Installation Complete.
Step 12: Re-route the jacketed
4-conductor main harness back
into the battery box.
