DIRECT NOSEBOX INSTALLATION GUIDE

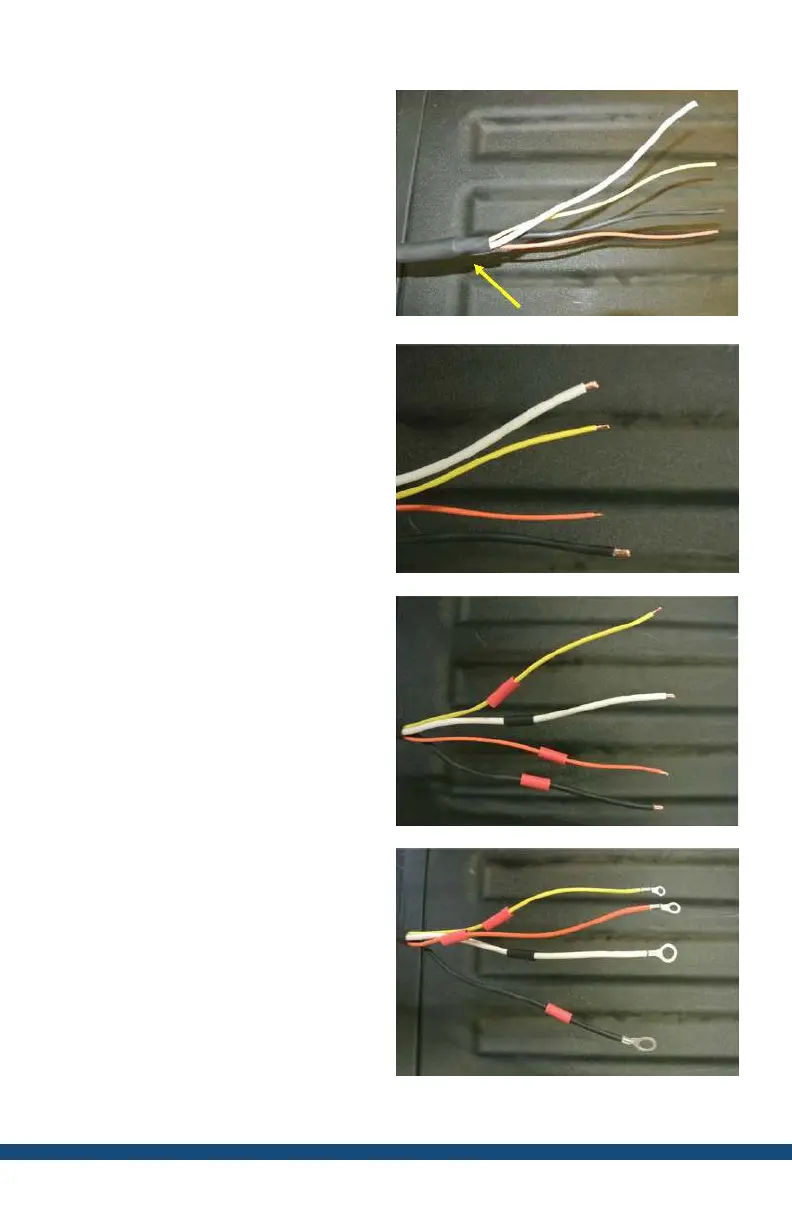

Step 7: Apply the supplied 3/4 inch
black heat shrink where the jacket
was stripped o.
Step 8: Strip 3/8 inch of insulation
o all 4 wires.
Step 9: Slide the supplied red 1/4
inch heat shrink over the orange,
yellow, and black wires. Slide
the supplied black 1/4 inch heat
shrink over the white wire.
Step 10: Crimp 3/8 ring terminals
onto the white and black 8-gauge
wires. Crimp #10 ring terminals
onto the 14-gauge orange and
16-gauge yellow wires.
