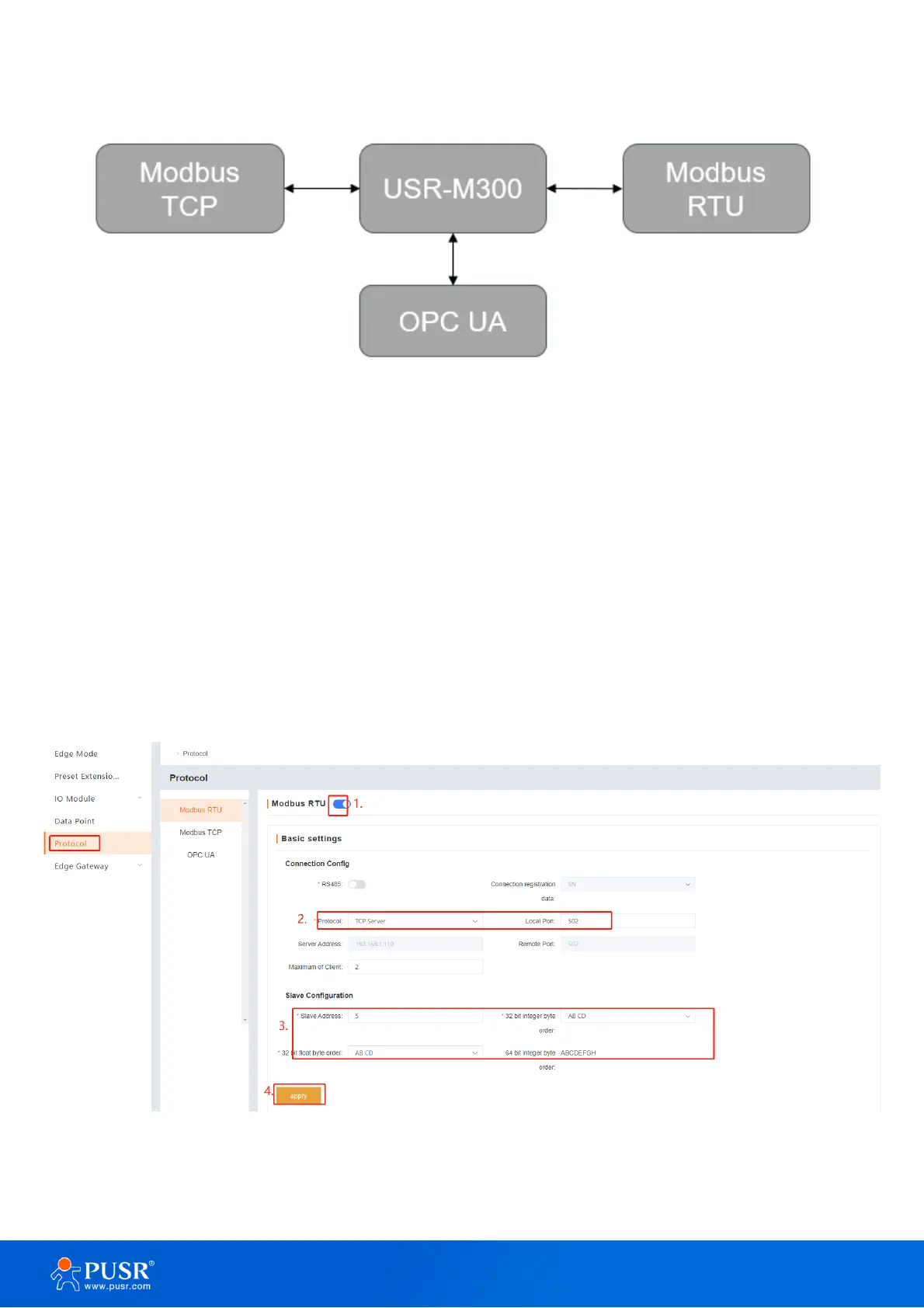

We have added Modbus TCP slave in section 5.4. In this section, will convert Modbus RTU to Modbus TCP
using the protocol conversion function.
➢ Basic settings:
1> Enable Modbus RTU function,
2> Set protocol and local port, in this case, keep them the default patameters
3> Set the Slave address to 5, we add the 16 bit points in Section 5.4, so keep the 32 bit data the default
parameters.
4> Click “Apply”, then the window will pop up prompting you to reboot M300 device. We can reboot device
after setting all parameters.
Then continue to set mapping point table parameters.
➢ Node mapping table
1> Click “Add” button,
2> Select the register type and enter the initial register address,
