13.

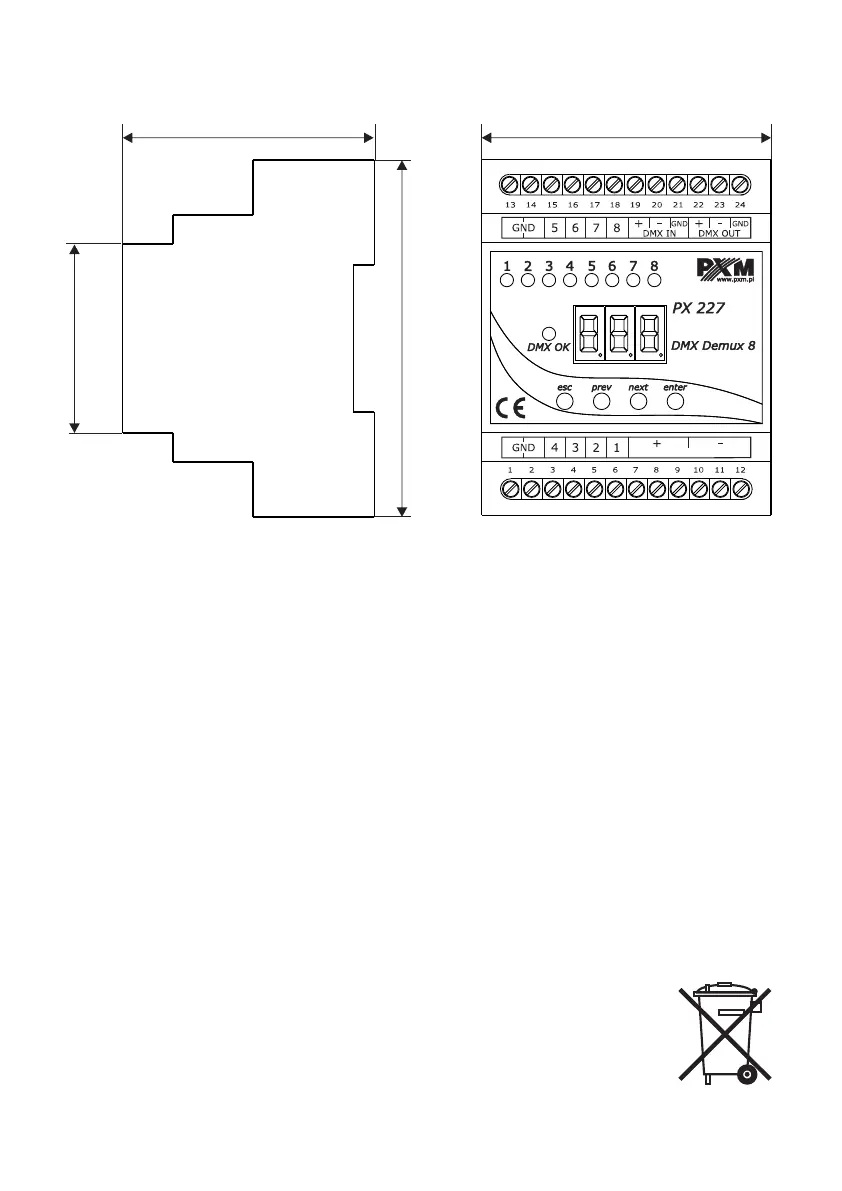

DIMENSIONS
60mm
86 mm
70 mm
46 mm
12-24V DC
512
12-24 V DC
max. 250 mA
8
max. 30 mA
/ channel
0-10
V
(+/- 3%)
screw terminals
70 mm (
4 rail modules
)
86 mm
60 mm
- DMX channels
:
- power supply
:
- current consumption
:
- number of output channels
:
- output carrying capacity
:
- voltage on outputs
- output slots
:
- dimensions:
- width
- height
- depth
14.
TECHNICAL DA
T
A
14
13
15
Table of Contents
Default Chapter
2
Table of Contents
2
1 General Description
3
2 Safety Conditions
3
3 Description
4
4 Connection Scheme
5
5 DMX Signal Connection
5
6 Programming
6
7 Programming of Group Parameters
6
Setting the DMX Address
7
Feature of Output Channels
7
Response to Loss of DMX Signal
7
Smoothing Function
8
8 Programming of Individual Parameters
9
9 Defining, Setting the Scenes and Programs
9
Scenes
10
Programs
10
10 Screen Blanking
11
11 Mounting
12
12 Programming
13
13 Dimensions
14
14 Technical Data
14
Declaration of Conformity
15
