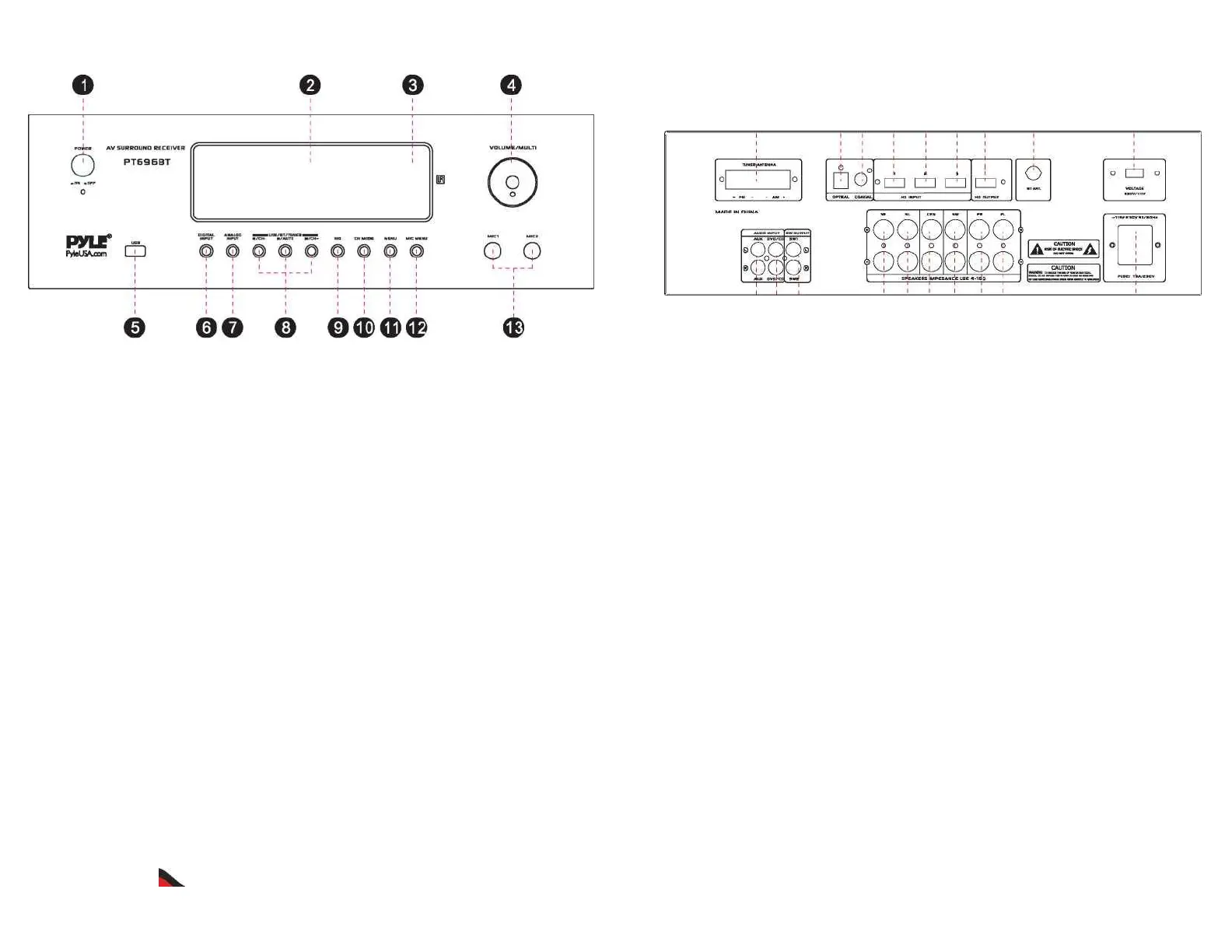

1. POWER SWITCH: Press to switch the power unit ON or OFF
2. DISPLAY: Function displayed fluorescent window
3. REMOTE: Infrared remote receiver
4. MASTER VOLUME/MULTI:
• Adjust the volume level.
• Select mume or MIC mume function, adjust the corresponding function by this knob.
5. USB INPUT JACK: USB flash disk connect to this jack.
6. DIGITAL INPUT KNOB: This is used to select the input sources such as HDMI1,
HDMI2, HDMI3,coaxial,optical.
7. ANALOG INPUT BUTTON: This is used to select the input sources such as
DVD/CD,AUX,USB,BLUETOOTH.
8. USB/BT and AM/FM programs adjust button:
•
i« This button is used to select the previous station is USB/BT/AM/FM.
•
MI This button is used to USB/bluetooth pause ,or play, or long press this button to
automatically scan AM/FM programs
• » This button is used to select the next station is USB/BT/AM/FM.
9. HD(ARC) ON/OFF button：This function must be in a HDMI state. When ARC is on , the
sound of a TV program is output through the power amplifier to the speakers.
10. CHANNEL MODE button: Select 2.1channel or5.1channel output mode by knob
11 .MENU button: This music menu function includes treble, bass, balance, display, DSP.
before, select these function, and then adjust the corresponding function by volume /multi
knob.
12. MIC MENU button: This microphone menu function includes: MIC volume, treble, bass,
echo and delay.
before, select these function, and then adjust the corresponding function by volume /multi
knob.
KARAOKE Microphone connect to these jacks.
0O0 0GO00®
1. TUNNER ANTENNAL JACK: Properly connected AM/FM antennal
2. DVD/CD INPUT JACK: Connect the audio output jacks of DVD/CD to these jacks
3. AUX INPUT JACK: Connect the audio output jacks of AUX to these jacks. 4.SUBWOOT
OUTPUT JACK: Connect the audio input jacks of other power
amplifier.
5.SURROUND RIGHT SPEAKER OUTPUT JACK
6.SURROUND LEFT SPEAKER OUTPUT JACK
7.CEN SPEAKER OUTPUT JACK
8.SUBWOOT SPEAKER OUTPUT JACK
9. MASTER RIGHT SPEAKER OUTPUT JACK
10. MASTER LEFT SPEAKER OUTPUT JACK
11. POWE SUPPLY: Connect to AC 110V/60HZ or 220V/50Hz outlet.
12. COAXIAL INPUT JACK：
Connect the coaxial signal source output of other sound equipment.
13.OPTICAL INPUT JACK
Connect the optical signal output of othersound equipment.
14. HDMI 1 INPUT JACK
Connect the HDMI signal output of other sound equipment.
15. HDMI2INPUTJACK
Connect the HDMI signal output of other sound equipment.
16. HDMI 3 INPUT JACK
Connect the HDMI signal output of other sound equipment.
17. HDMI OUTPUT JACK: Connect to HDMI(arc) input jack of TV
18. BLUETOOTH ANTENNAL
19. AC110V/AC220V SWITCH: According to power voltage push this button
to switch between 110V and 220V
