Home Theater / Multi-Room Example (Diagram 7)
This conguration allows the user to access the sources connected to a home
theater receiver for use in a multi-room installation. It relies on the home theater
receiver having a multi-room or similar output.
The Input Selection switch on each channel is set to “BUS” with adjacent channels
assigned left and right.

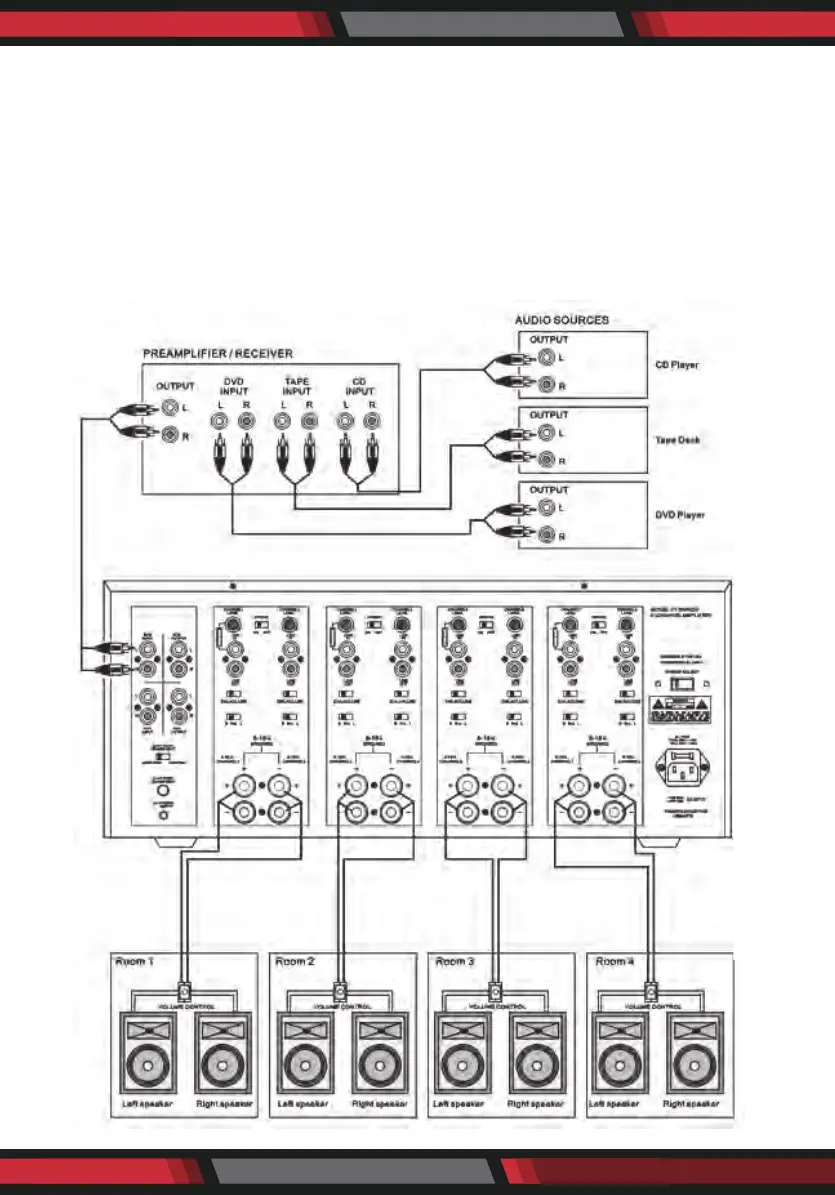

DIAGRAM 4 - MULTI-ROOM INSTALLATION
