Pylontech US2000C Product Presentation

Page 31
Contact SegenSolar (PTY) Ltd | e: info@segensolar.co.za | t: 08780 20663
CAN BAT Inverter
Pin1
Pin2
Pin3
Pin4 CAN-H
Pin5 CAN-L
Pin6
Pin7 CAN-H
Pin8 CAN-L
** Comm. Cable PINOUT
**
*
* ADD Switch
You must use the VE.Can to
CAN-bus BMS type B Cable,
part number ASS030720018
for connection with
US2000/US3000/UP2500;
and VE.Can to CAN-bus BMS
type A Cable, part number
ASS030710018 for
connection with
US2000C/US3000C/UP500
0/Force-L, you cannot use
the cable supplied by
Pylontech.
-Victron

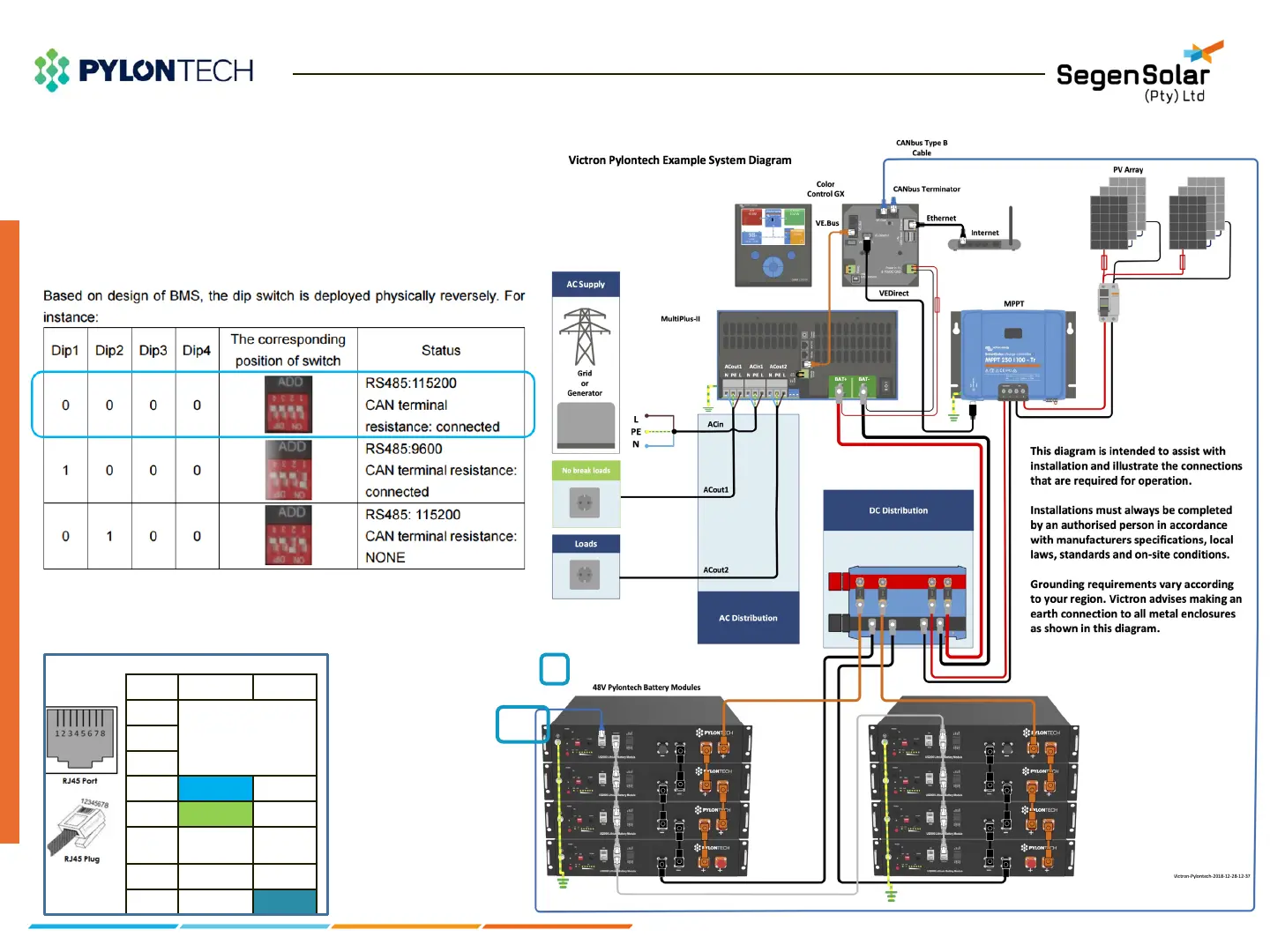

Connection Diagram
