TIMETRAX™ SYNC 7000/7000BDL110 MASTER CONTROL
Installation Instructions

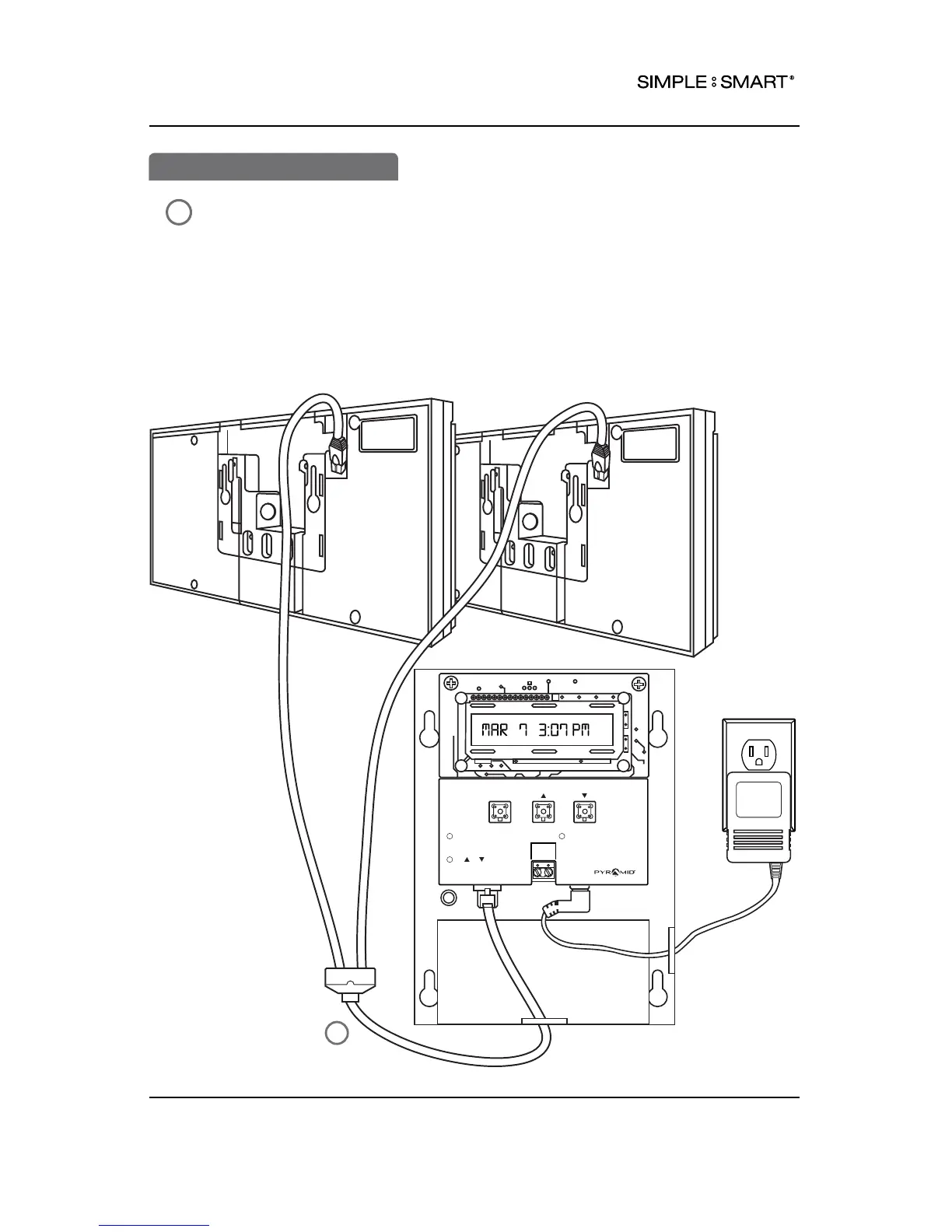

Use RJ45 Splitter Cable (part # 41270) to add more clocks. Up to 200 clocks may
be added to the system, however clocks should be located within 300 feet of 7000
unit to receive the synchronization time data.
1
CLOCK CONNECTION
1
SELECT
SET-UP INSTRUCTIONS
To change or set feature,
press SELECT until desired
feature is displayed.
Use or to change
feature.
1
2
DATA POWER
After displayed feature is
changed, press SELECT to
change other feature &
return to main display.
3
24 VDC
+ -
41301A
pyramidtimesystem.com
1
10CLOCK CONNECTION
