TIMETRAX™ SYNC 7000/7000BDL110 MASTER CONTROL
Installation Instructions

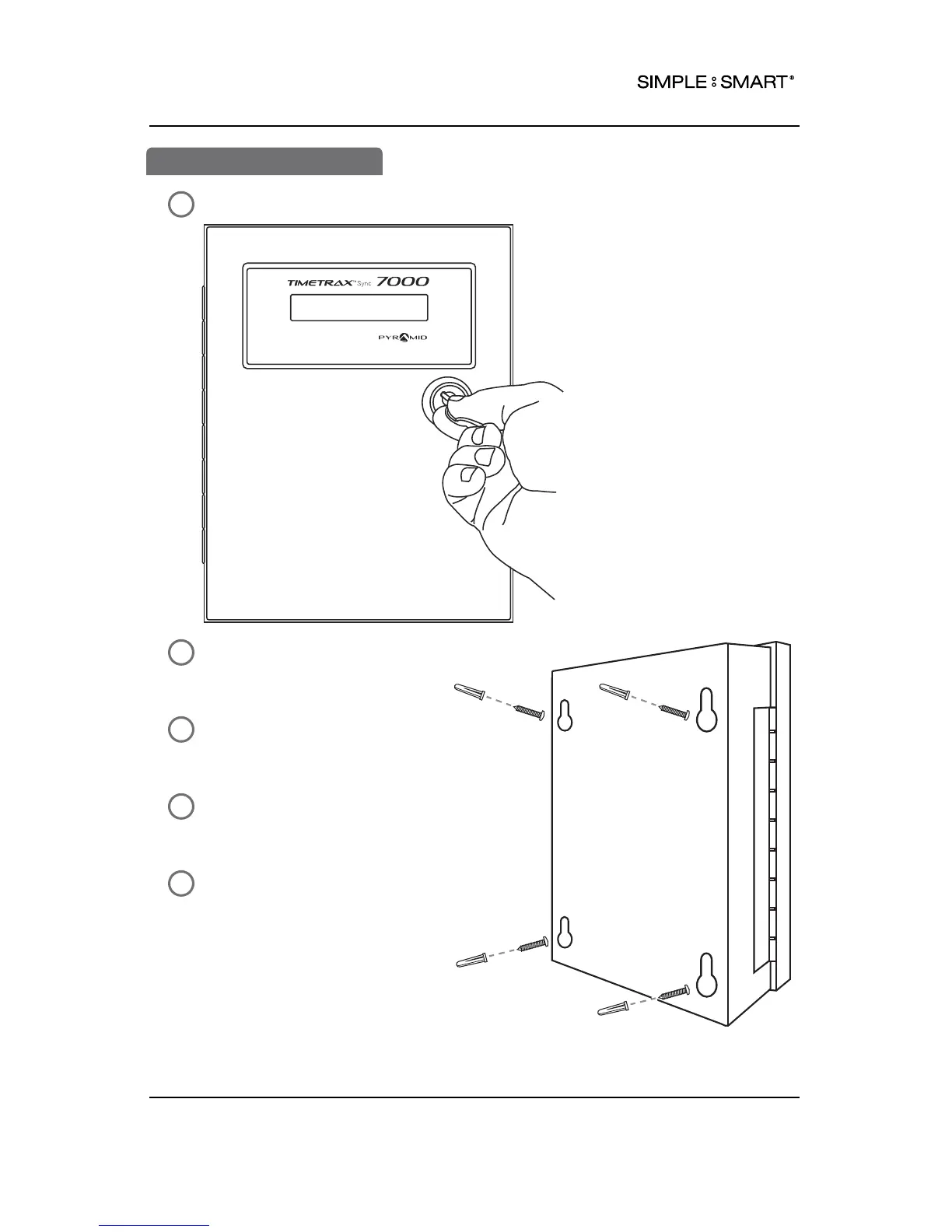

Use key to unlock and open front cover.
Select a location for mounting.
Power outlet should be within 5 feet of
mounting location.
With door, open, hold the case in desired
location and mark holes for drilling.
Drill holes for mounting.
Install screws in wall, leaving approximately
3/16 inch of screws exposed. For sheet rock
walls, use plastic anchors.
Hang TimeTrax Sync™ 7000 on wall, aligning
keyholes on the rear with screw heads.
Press downward on case until it lowers
onto screws.
1
WALL MOUNTING
1
2
3
4
5
5 WALL MOUNTING 888.479.7264
