Connecting Modems
1. Insert the modems into the PCX.

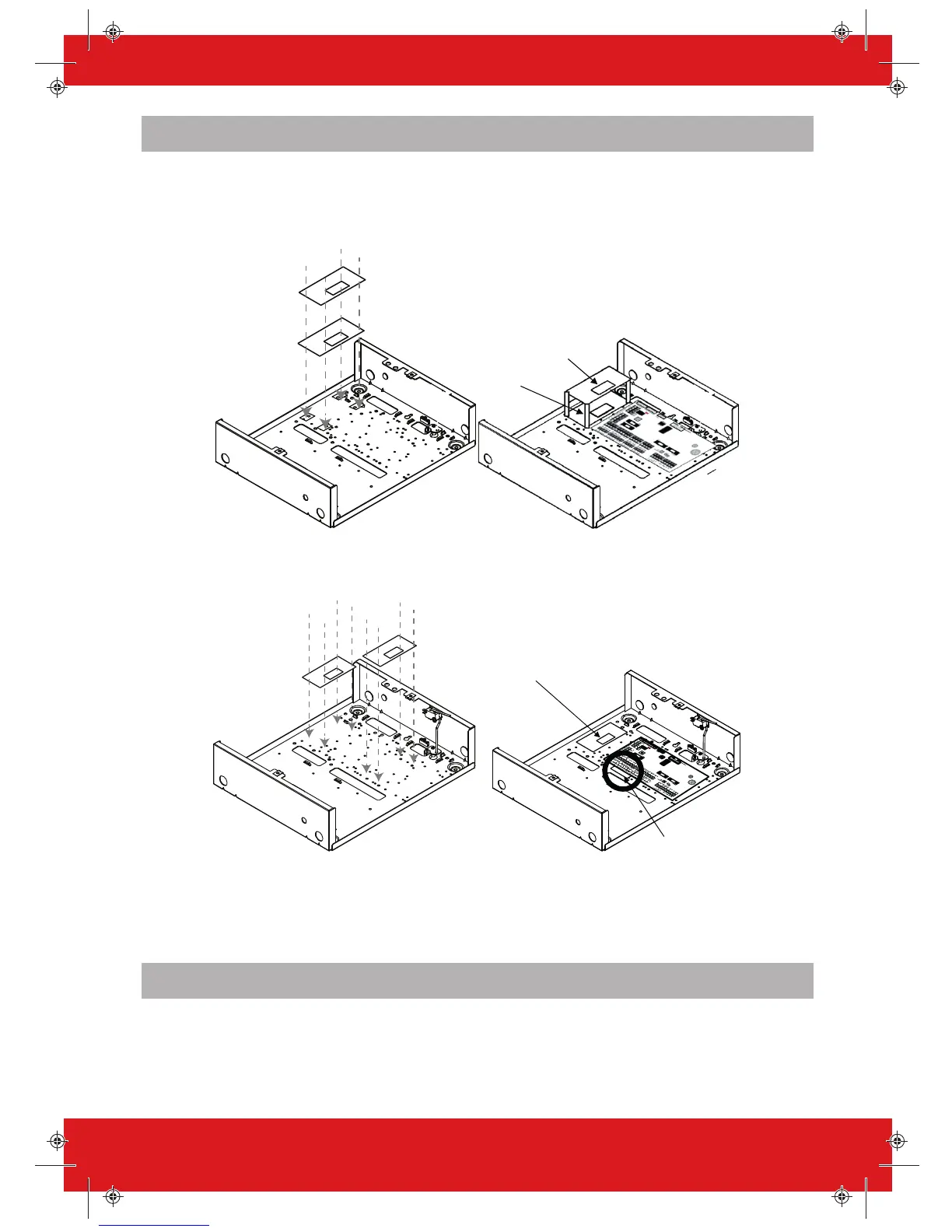

a. If you have the PCXS, connect the modems as shown below. The PSTN modem should be
located at the bottom (closest to the base). The GPRS, LAN and Wi-Fi modems should be
located at the top.
GPRS/LAN/WIFI Modem
PSTN Modem
b. If you have the PCXL, connect the modems as shown below. The PSTN modem should be
located underneath the PCX PCB. The GPRS, LAN and Wi-Fi modems should be located to
the left of the PCX PCB.
GPRS/LAN/WIFI Modem
PSTN Modem
2. Connect the modems to the control panel.
You can only connect the PSTNmodem to the left modem port on the panel's PCB.
► For more information, see the user documentation for the modem
PSTN Modem (DIGI-1200)
The PSTN modem card is used to enable the PCX to communicate either via contact ID or SIA.
Before making these connections, all power must be disconnected from the system.
