7 INSTALLATION
Before beginning any installation work read through this section carefully. Plan out the various areas and degrees of
protection required from each zone. It is important to decide which type each zone should be if part sets are to be used.
Work out the cable routes avoiding mains cabling and consider the chosen position for the control panel.

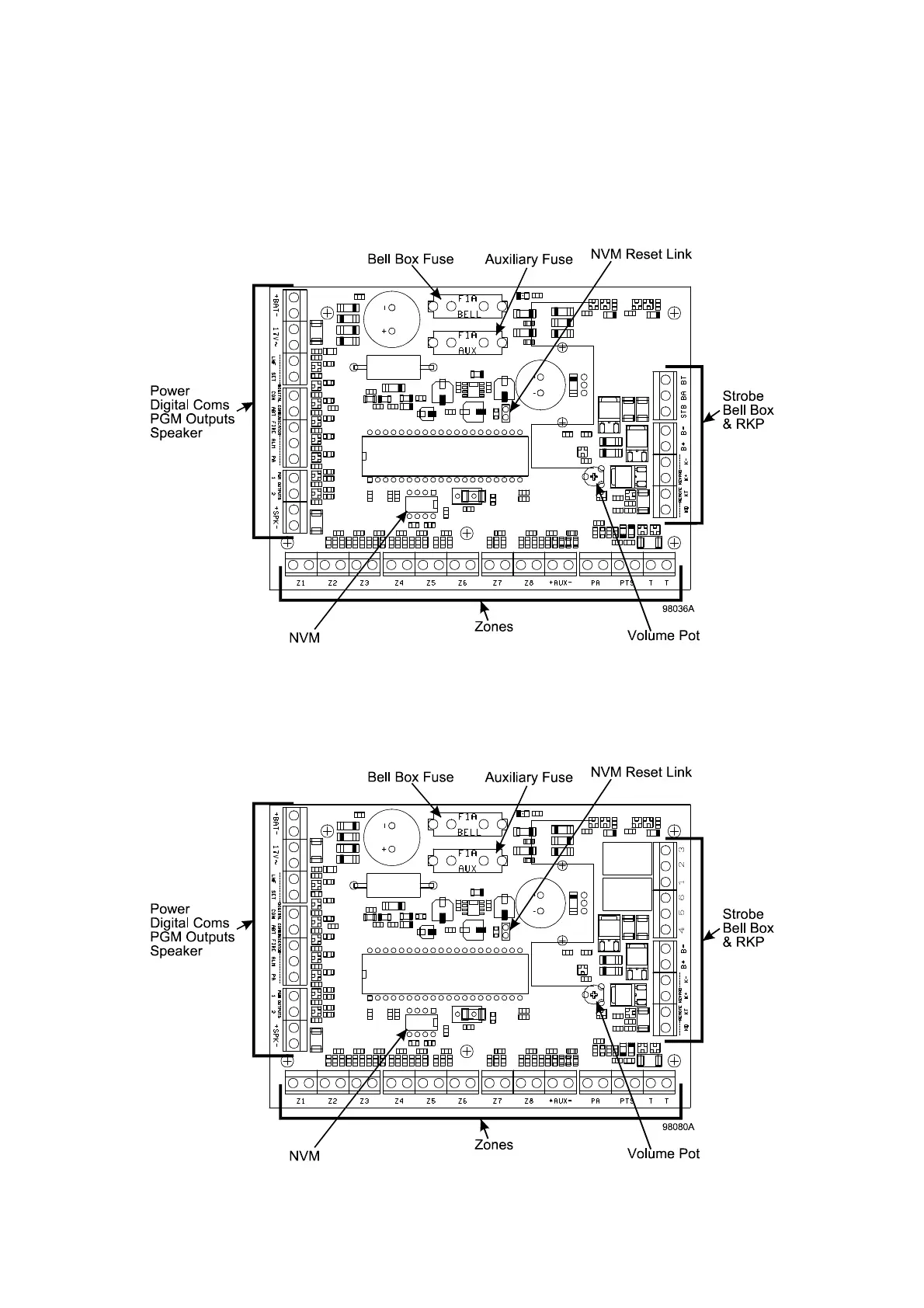

Sterling PCB Layout Transistor Version
Sterling PCB Layout Relay Version
