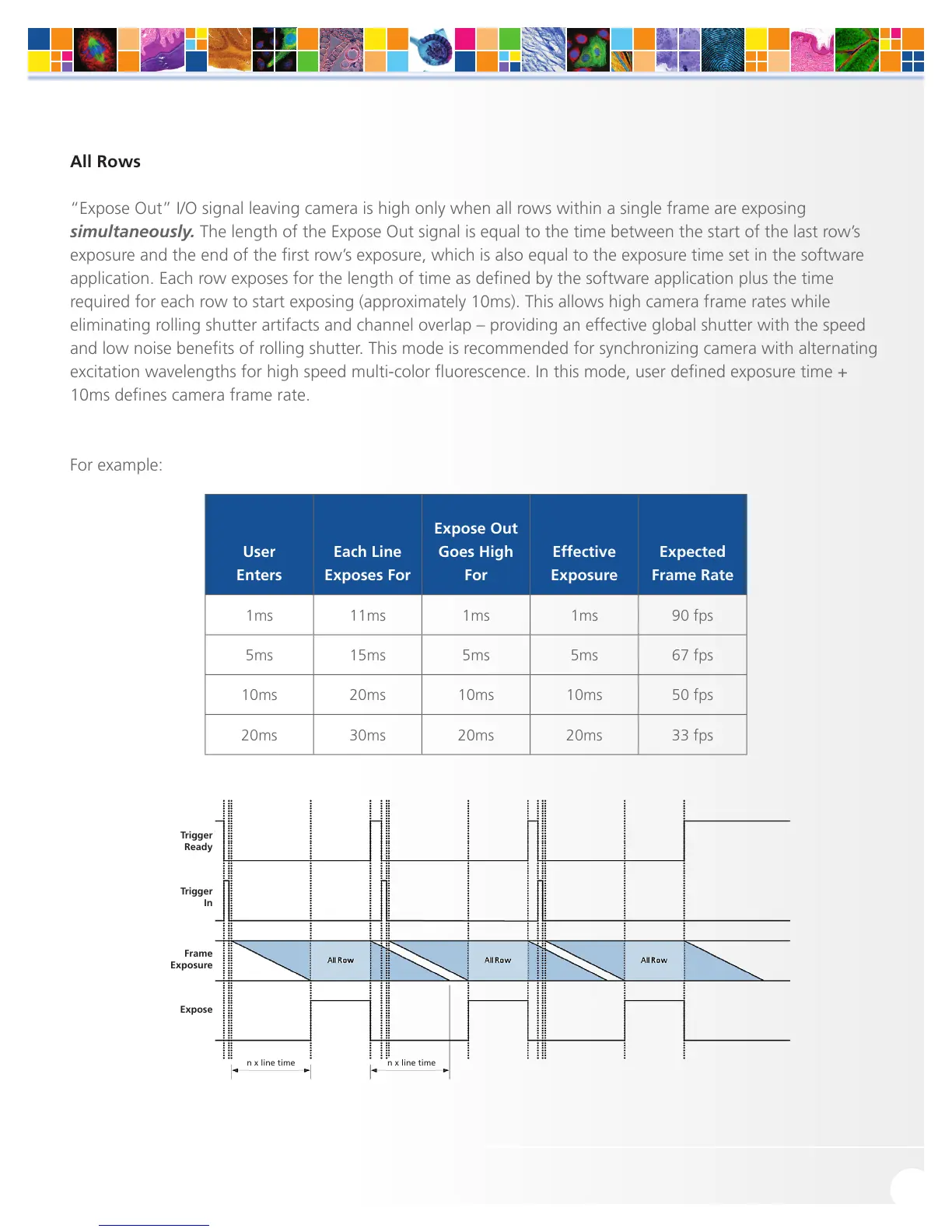

All Rows
“Expose Out” I/O signal leaving camera is high only when all rows within a single frame are exposing
simultaneously. The length of the Expose Out signal is equal to the time between the start of the last row’s
exposure and the end of the first row’s exposure, which is also equal to the exposure time set in the software
application. Each row exposes for the length of time as defined by the software application plus the time
required for each row to start exposing (approximately 10ms). This allows high camera frame rates while
eliminating rolling shutter artifacts and channel overlap – providing an effective global shutter with the speed
and low noise benefits of rolling shutter. This mode is recommended for synchronizing camera with alternating
excitation wavelengths for high speed multi-color fluorescence. In this mode, user defined exposure time +
10ms defines camera frame rate.
For example:
User
Enters
Each Line
Exposes For
Expose Out
Goes High
For
Effective
Exposure
Expected
Frame Rate
1ms 11ms 1ms 1ms 90 fps
5ms 15ms 5ms 5ms 67 fps
10ms 20ms 10ms 10ms 50 fps
20ms 30ms 20ms 20ms 33 fps
Trigger
Ready
Trigger
In
Frame
Exposure
Expose
n x line time n x line time
