12 13
1
2
3
4
5
VGA
USB
AUDIO IN CVBS OUTAUDIO
OUT
VIDEO IN
1
GND
COM1
NO1
COM2
NO2
GND
485A-2
485B-2
GND
485A-1
485B-1
GND
+12V
GND
2 3 4 5 6 7 8 9 10 11 12 13 14
16 15
ALM IN
RJ45
DC +12V
IN
2
1
3 4 5 6 87 9
Item #
Connector Description
1 VIDEO IN Video input for connecting analog video signal input (BNC)
2
DC 12V/3A Power Connection
3 VGA OUTPUT To connect to VGA monitor
4 NETWORK For connecting Ethernet cable
5 USB Mouse port
6
ALARM INPUT 8 I/O Alarm input
ALARM
OUTPUT
I/O Output for alarm
RS485 RS485 for connecting PTZ
RS232 Debugging port
+12V
Power supply for DC relay, the current is 100MA (to prevent
short circuits)
7 AUDIO IN Audio input for connecting audio signal (2 feeds)
8
AUDIO
OUTPUT
For connection to amplified speaker
9 VIDEO OUT Video output for connecting TV (BNC)
Item # Name/ Symbol Description
1 STANDBY Press to set the system in standby mode. Press again to wake.
2 MENU/EXIT Press to open/close the main menu.
3 CHANNEL/
NUMBERS
Press the number buttons to view the selected channel full-
screen; press buttons 1-0 to input passwords and user IDs.
4
NAVIGATION
▲
Press to move cursor up; in PTZ mode, press to pan
camera up.
▼
Press to move cursor down; in PTZ mode, press to
pan camera down.
◄
Press to move cursor left; in PTZ mode, press to pan
camera left.
►
Press to move cursor right; in PTZ mode, press to
pan camera right.
5 LED
INDICATORS
Shows status of hard drive, recording, alarm, HDD full and
network.
6 IR SENSOR IR Receiver for remote control.
7
OK
In menus, press to confirm selections; in PTZ mode, press to
change the navigation buttons to control a connected PTZ
camera (not included)
8
DURING
PLAYBACK
PRESS:
◄ ◄
Increase reverse playback speed 1X, 2X, 4X.
n
/
►
Press to freeze playback to one frame, then press
again to advance frame-by-frame.
►
Press to start playback
► ►
|
Press to slow playback speed by 1/2, 1/4, 1/8.
► ►
Press to increase forward playback speed 1X, 2X,
4X.
9
USB Connect a USB flash drive for data backup and
firmware upgrades

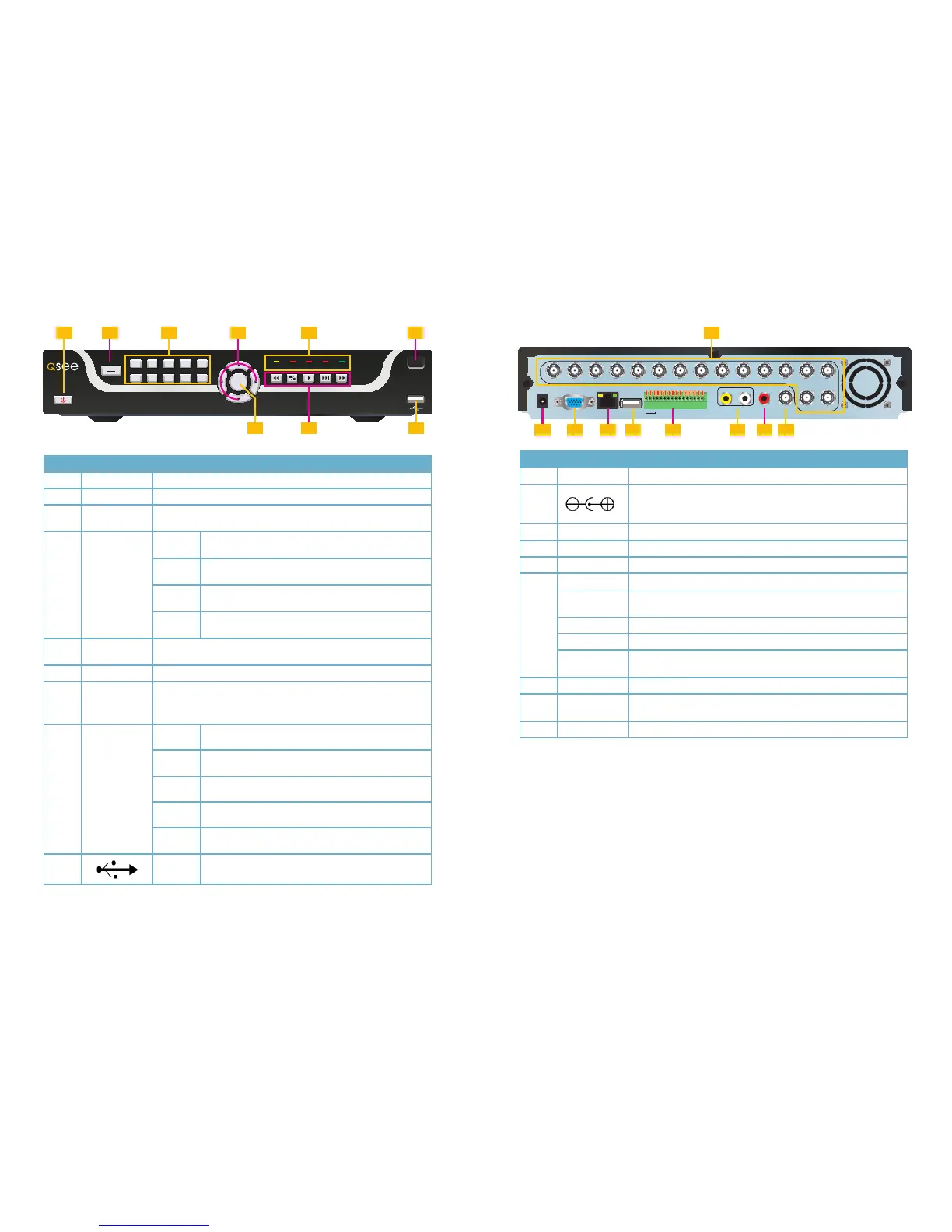

QS206
FRONT PANEL
HDD REC ALM FULL NET
OK
MENU
EXIT
1 2 3 4 5
6 7 8 9 0
QS206
16CH H.264 Digital Video Recorder
21 4 63 5
7 8 9
REAR PANEL
