CONNECTING AND MOUNTING CAMERAS
What makes Internet Protocol (IP) or Network cameras different is that they each have a
little computer processor inside them that allows them to talk to the NVR over a network -
including the Internet.
There are three ways you can connect your cameras to your NVR:
1. Directly through the PoE Ports
2. Through your local network
3. Remotely over the Internet

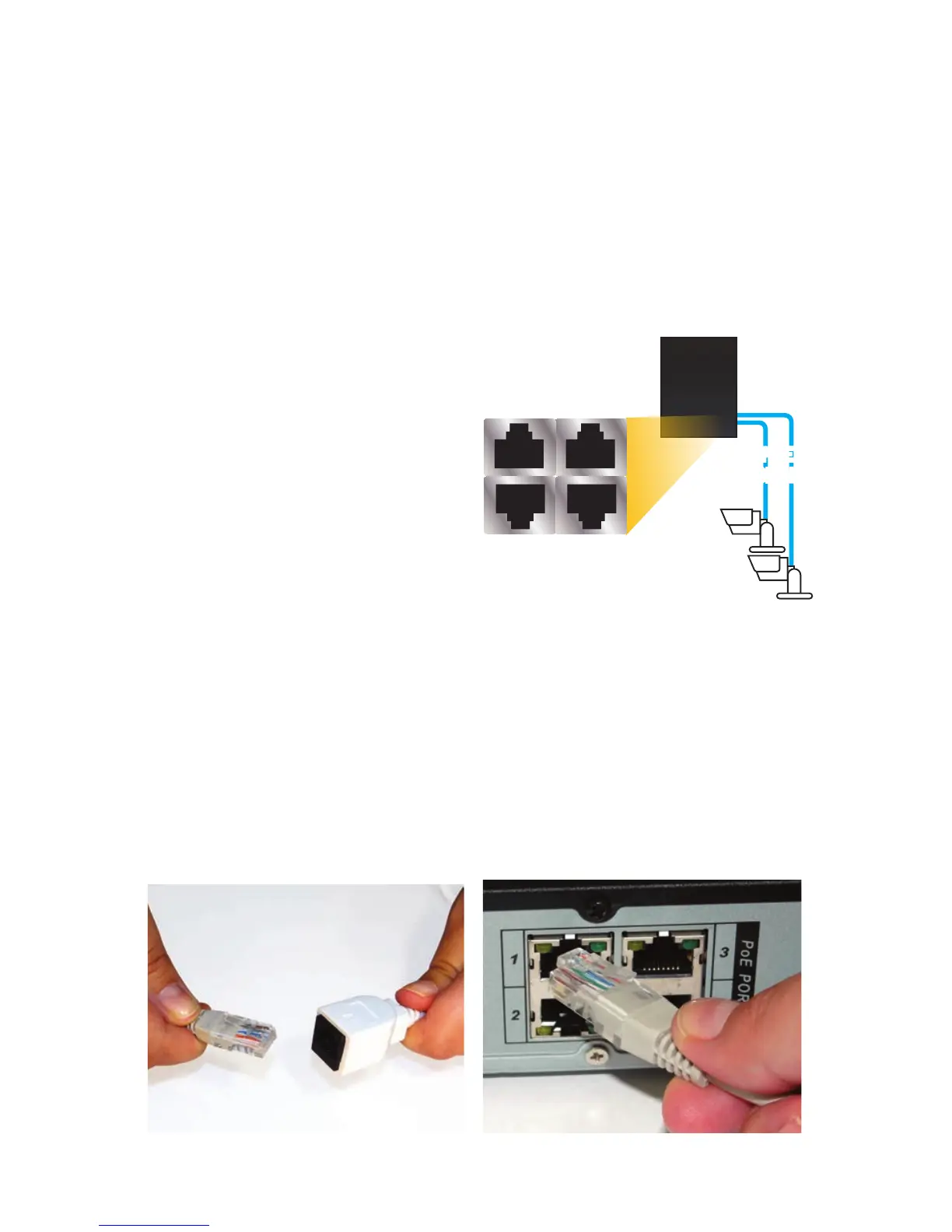

USING THE POE PORTS
This is the simplest method. These ports
provide power to the camera while receiving
their video signal.
• Connect the camera and NVR using the
RJ-45 Ethernet cable.
• The PoE port can power a camera up to
200 feet away.
• The camera’s video will appear after a few
seconds. (Non QT-series NVRs will need to
search for the camera)
• Cameras will be assigned to a channel
based on the order they were connected.
PICTURE 2
PICTURE 3
1
2
STEP 1. Connect one of the long Ethernet cables to the socket on the wire leading from
the camera.
STEP 2. Plug the other end of the Ethernet cable into any of the Power over Ethernet
(PoE) ports on the back of the NVR.
STEP 3. Repeat for additional cameras.
