Connect the Devices
1 Plug the VGA cable into the port marked “VGA” in the back of the DVR.
2 Plug the other end of the VGA cable into the similar port on the back of the monitor.
3 Plug the monitor’s power cable into the surge protector.
Plug in the mouse to the port labeled USB on the rear of the DVR.
NOTE: The USB port on the front is used for backing up video files.
1
Connect the BNC to RCA cable to the Video Out port on the back of the DVR.
2 Plug the RCA end into the Video In port on the television.
3 Plug the television’s power cable into surge protector.
4 Press and hold the ESCAPE button on the front of the DVR for 10 seconds or until
you hear a beep to indicate that the video mode has been changed.
1 Connect the power cable to the DVR.
2 Connect the power adapter to the power cable.
3 Plug the power cable into a surge protector.
4 Turn on the DVR.
You will hear a beep as the DVR powers up.

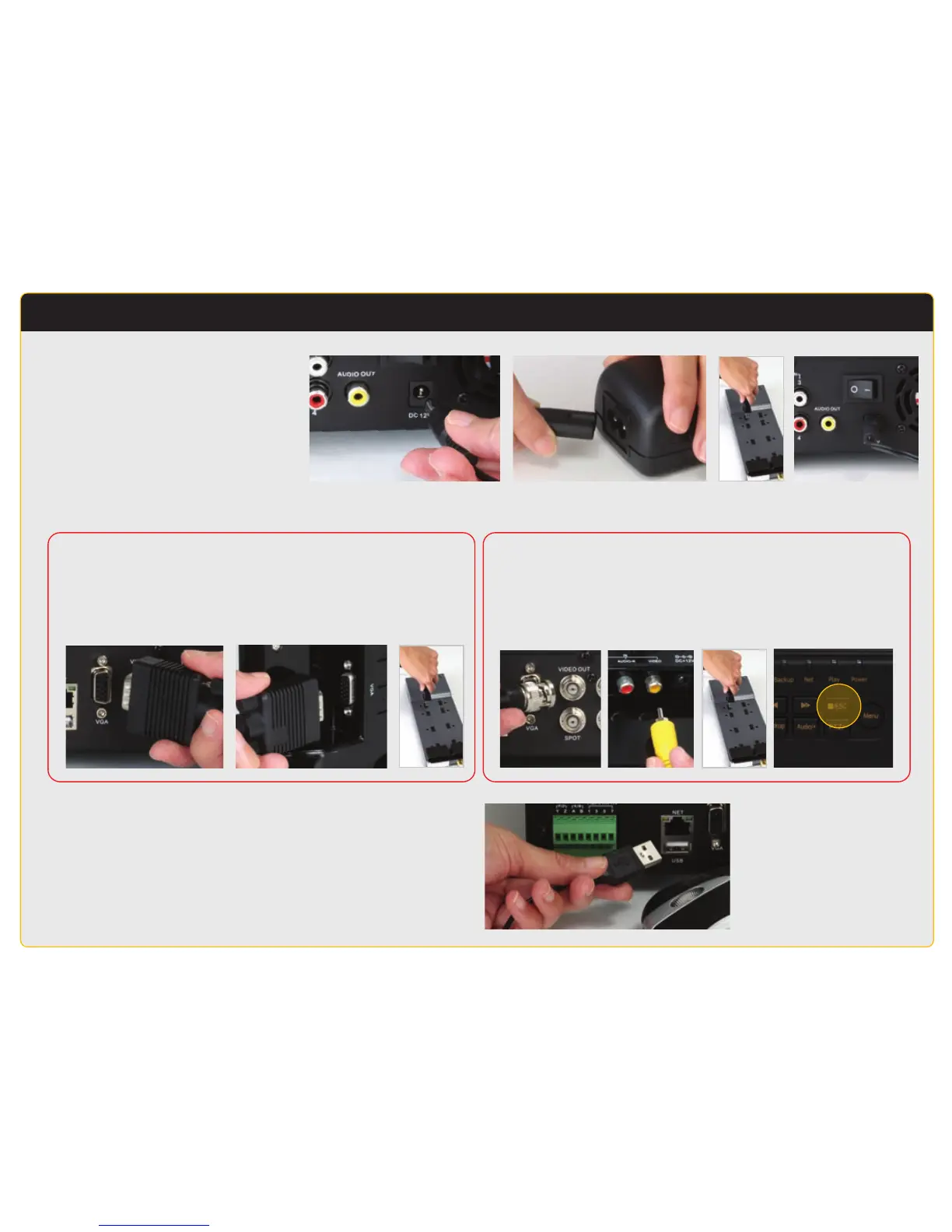

STEP 1 Turning on the DVR
STEP 2 Connect a PC Monitor or Television
STEP 3 Connect Mouse
Option A: Connect a VGA PC Monitor Option B: Connect a Television
1 42 3
1 2 3 4
2 3
1
To Next Page
