INSTALLATION
R
S

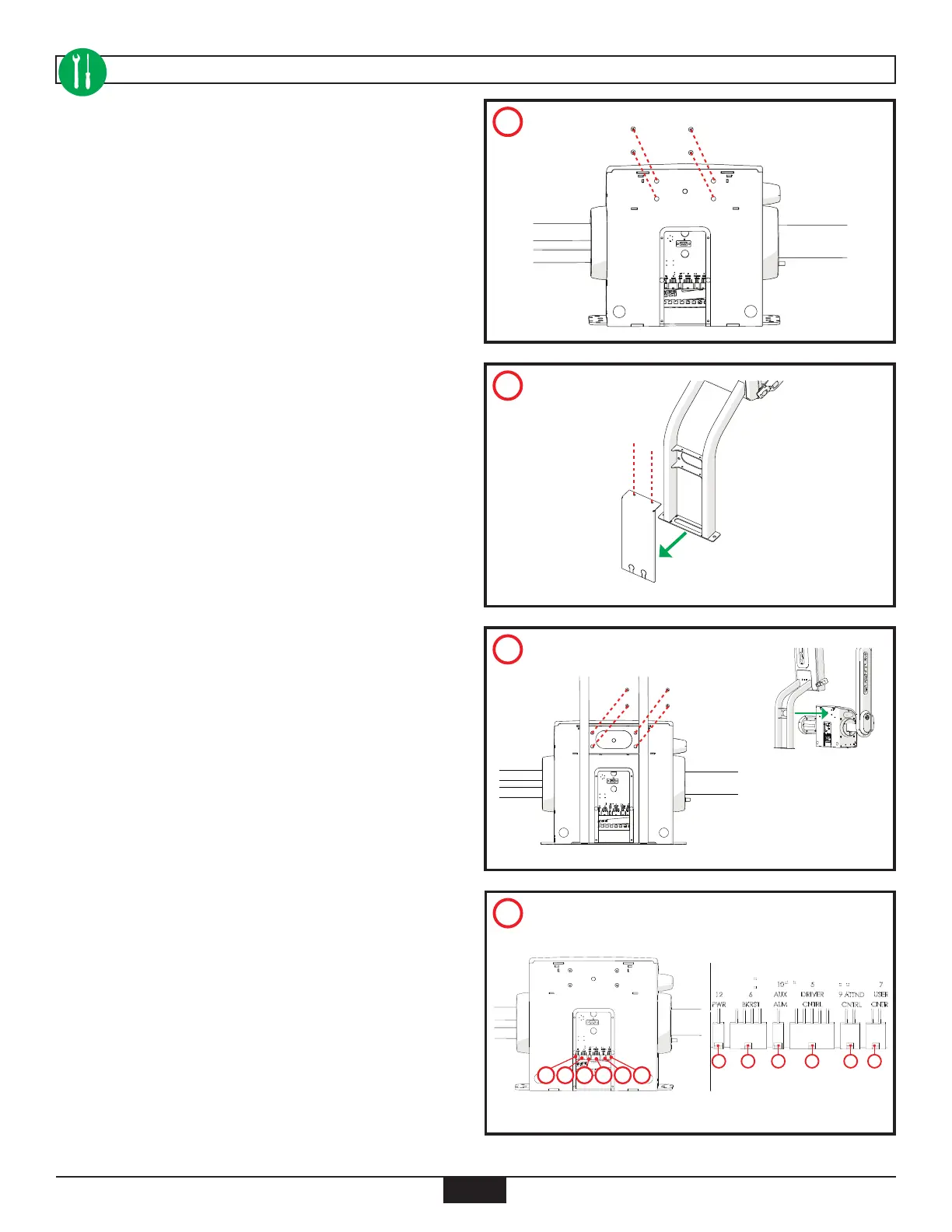

21. Unscrew the 4 screws from the back of the QUANTUM® (Q).
22. Unscrew the 2 screws from the Backrest and remove
Backrest cover (R).
23. Use the 4 screws that were removed from the QUANTUM®
to permanently install Backrest onto the QUANTUM® (S).
24. Connect the Power Source Harness to connector 1 (12
PWR), Park Brake, Ignition and Driver Interface Harness to
connector 4 (5 DRIVER CNTRL) and Occupant Interface
Harness to connector 6 (7 USER CNTRL) on the Electrical
Panel (T).
T
1 2 3 4 5 6
1 2 3 4 5 6
