37
Y
INSTALLATION
Z
AA

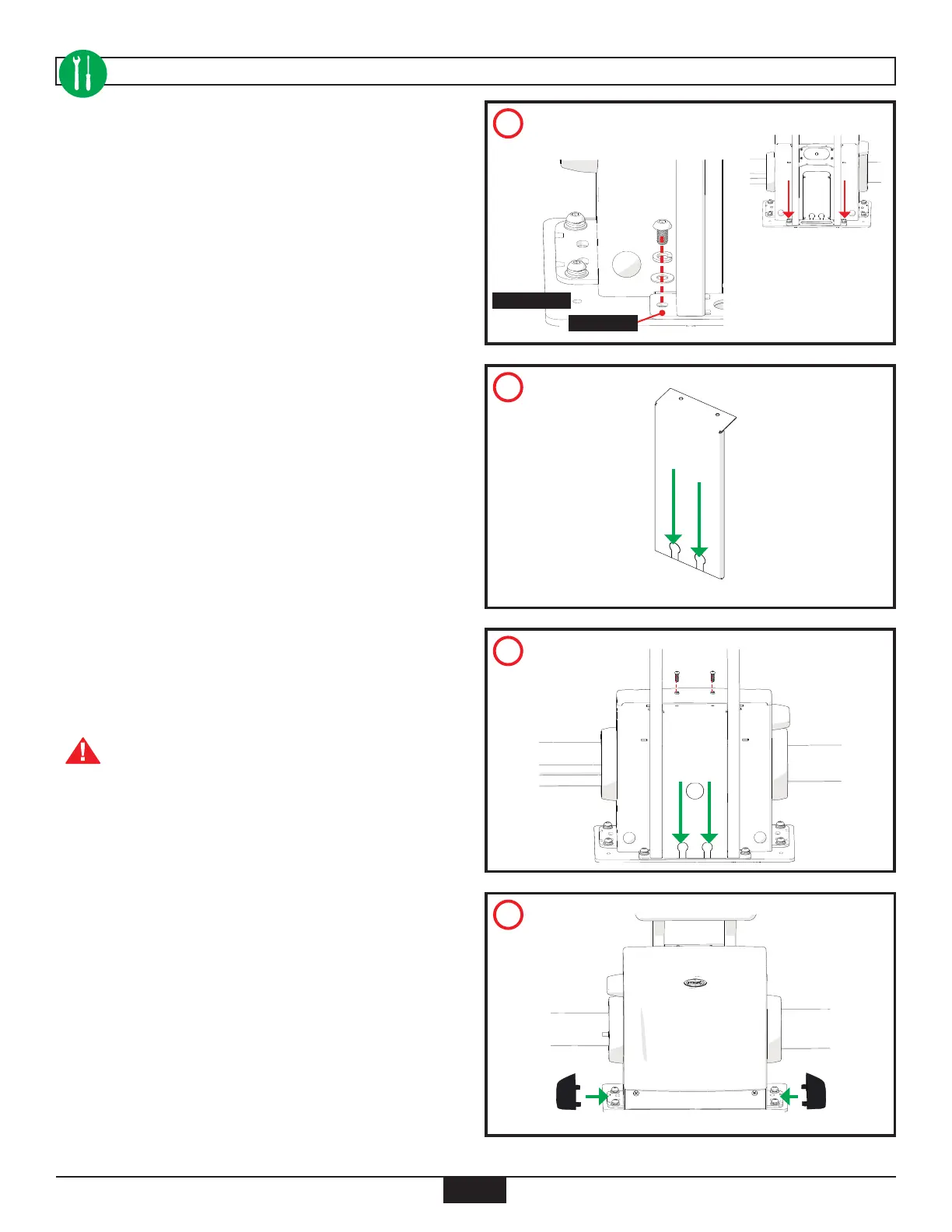

29. Permanently install the Backrest onto the Mounting Plate,
by placing the Bolt through a lock washer, a washer, the
Backrest Base, Mounting Plate and tighten Bolt (Y). Repeat
step 29 for the remaining hole (Y).
30. Choose the best Knock-Out Hole(s) on the Backrest Cover,
push out the insert(s) and place a grommet in the hole(s)
opening to protect the wires running through it (Z).
31. Run the wires through the Knock-Out Hole(s). Place back
the Backrest Cover. Then place the 2 screws through the
lock washer, Backrest Cover and tighten (AA).
Make sure there is no tension with wires running
through the Backrest Cover Knock-Out Holes.
32. Place back the Base Feet on the QUANTUM® (BB).
BB
Mounting Plate
Backrest Base
To Next Page
