CC
INSTALLATION
DD

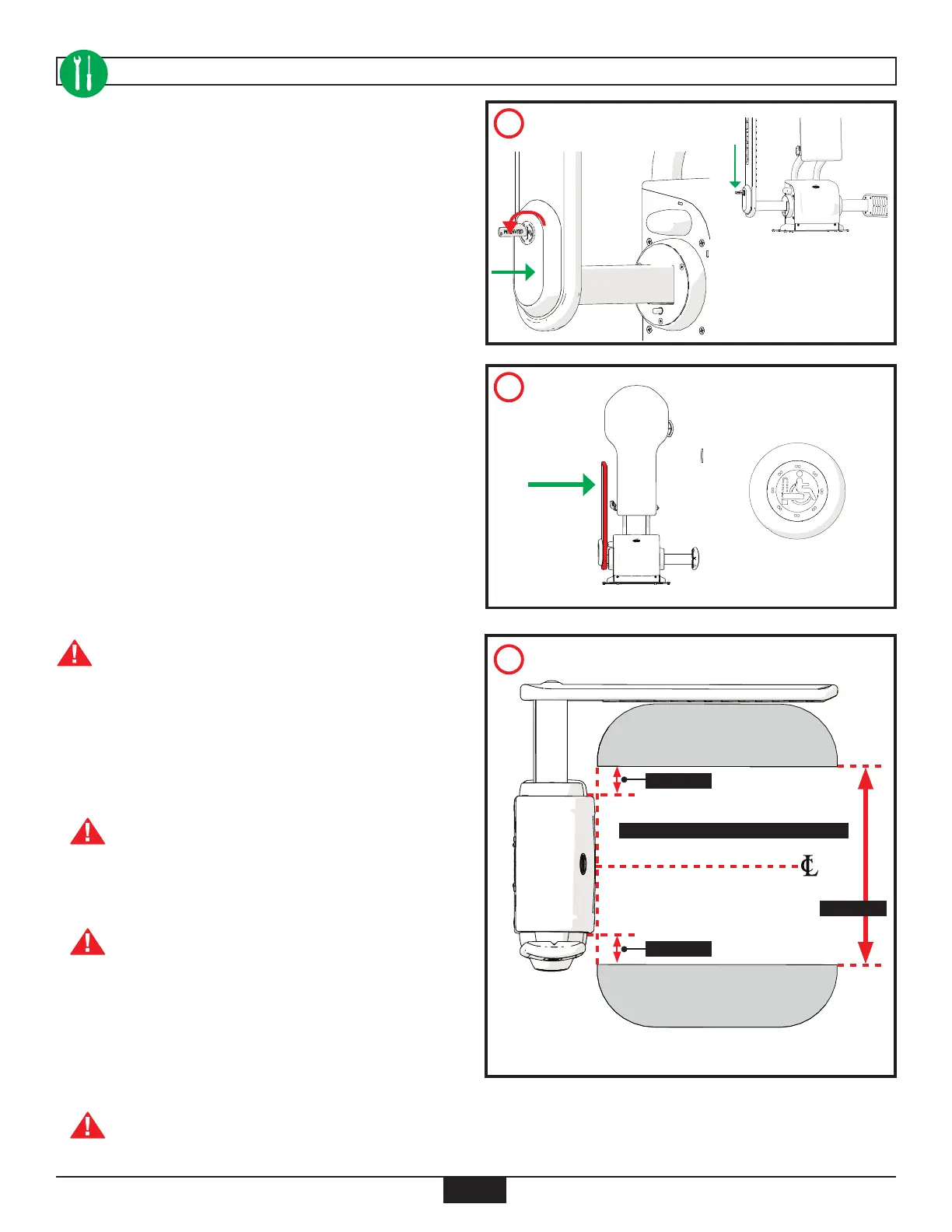

33. Place back the Manual Release Cover by inserting the
QUANTUM® Key (or a quarter) into the slit and turn it
counter clockwise (to the left) to lock cover (CC).
34. Turn “ON” the ignition. Press Occupant Interface to return
the QUANTUM® to Stow Position (DD). Turn “OFF” the
ignition.
The QUANTUM® Floor Marker MUST be installed according
to the specific measurements below.
The Floor Marker cannot be peeled off the floor and
reinstalled again since it can ONLY be used one time.
35. Before installing the QUANTUM® Floor Marker, clean the
floor installation area with soap and water.
Make sure the floor is completely dry before installing
the Floor Marker.
36. Measure and mark the area for the Floor Marker
installation.
Make sure to follow the exact measurements above to
ensure the proper securement of the mobility device.
37. Peel the protective paper on the backside of the Floor
Marker and install Floor Marker on top of the marked
area.
38. Once installed, press down on the Floor Marker to secure
it in place.
ONLY Clean the QUANTUM® Floor Marker with soap
and water. Make sure to dry it.
EE
3” (76mm)
3” (76mm)
19” (483mm)
MOUNT IN LINE WITH FRONT OF QUANTUM
To Next Page
