QNAP QSW-M3212R Quick Installation Guide

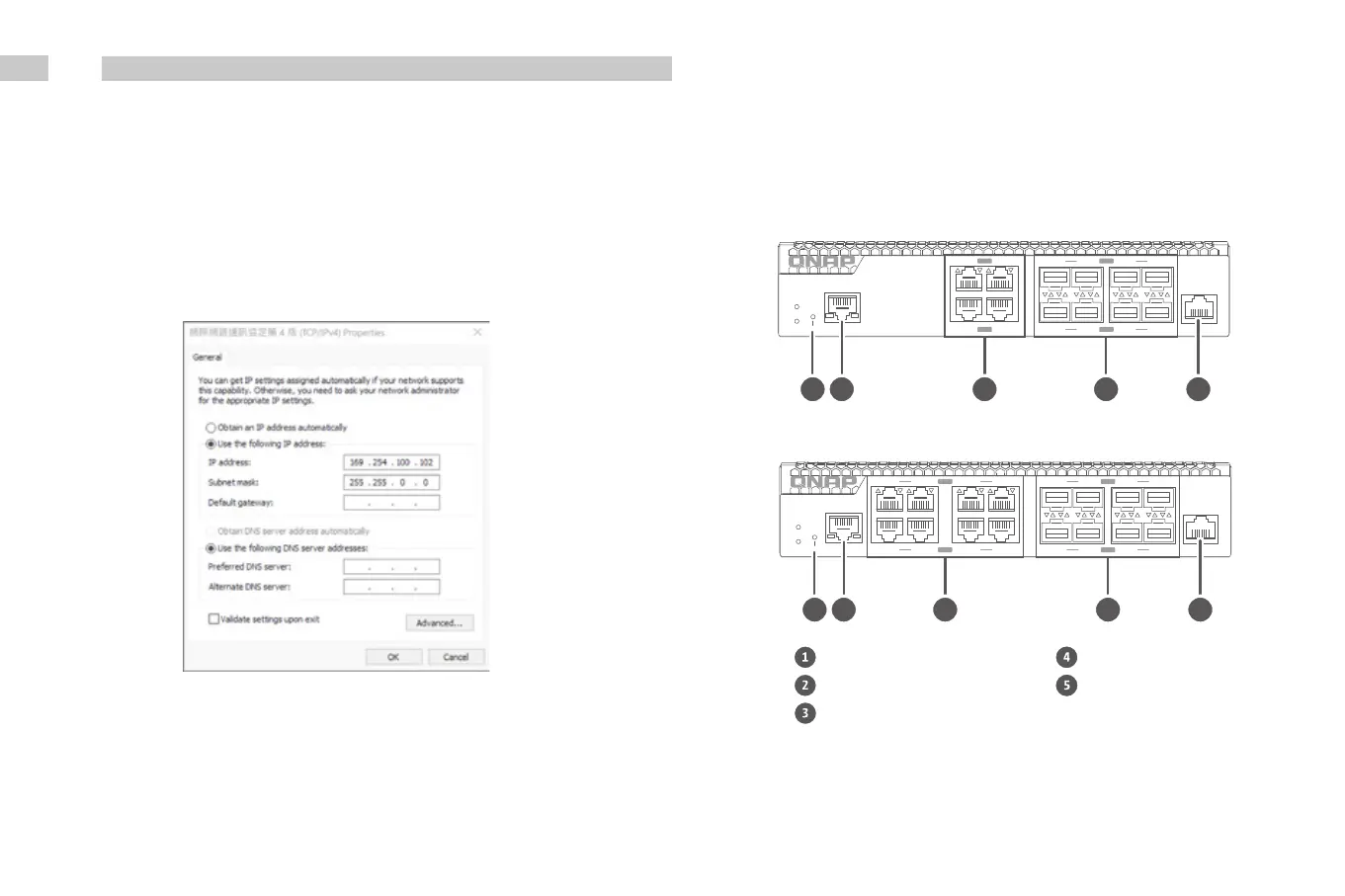

Front Panel Ports
Reset button 10GbE SFP+ ports
RJ45 Management port RJ45 Console port
10GbE RJ45 ports
Default username : admin
Default password : The default password is the first MAC address in uppercase letters without special
characters. For example, if the first MAC address is 00-08-9B
-
F6-15-75, then the admin password would
be 00089BF61575.
Accessing the Web User Interface
Logging into the Web User Interface
EN
B D
CA
MGMT
Console
Rst
Status
Locator
1 3
2 4
9 11
10 12
13 15
14 16
SFP+
SFP+
10GbE
10GbE
B D
CA
B D
CA
1 3
2
MGMT
Console
Rst
Status
Locator
4
5 7
6 8
9 11
10 12
13 15
14 16
SFP+
SFP+
10GbE
10GbE
5431 2
5431 2
B D
CA
MGMT
Console
Rst
Status
Locator
1 3
2 4
9 11
10 12
13 15
14 16
SFP+
SFP+
10GbE
10GbE
B D
CA
B D
CA
1 3
2
MGMT
Console
Rst
Status
Locator
4
5 7
6 8
9 11
10 12
13 15
14 16
SFP+
SFP+
10GbE
10GbE
5431 2
5431 2
Hardware Overview
QSW
-
M3212R-8S4T
QSW
-
M3216R-8S8T
By default, the QSW
-
M3216R-8S8T and QSW
-
M3212R-8S4T switch series support DHCP clients. When
connected to a network, the switch automatically obtains an IP address from a DHCP server. You can then
use Qfinder Pro to locate the switch and access QSS.
If the device is unable to connect to a DHCP server to obtain an IP address, you can access the web user
interface by changing the IP address of the computer to 169.254.100.102.
Note : Ensure that you change the IP address of the computer to its previous setting after configuring the switch.
The default IP address of the switch is 169.254.100.101.

QNAP QSW-M3212R Specifications

General

Brand	QNAP
Model	QSW-M3212R
Category	Switch
Language	English
