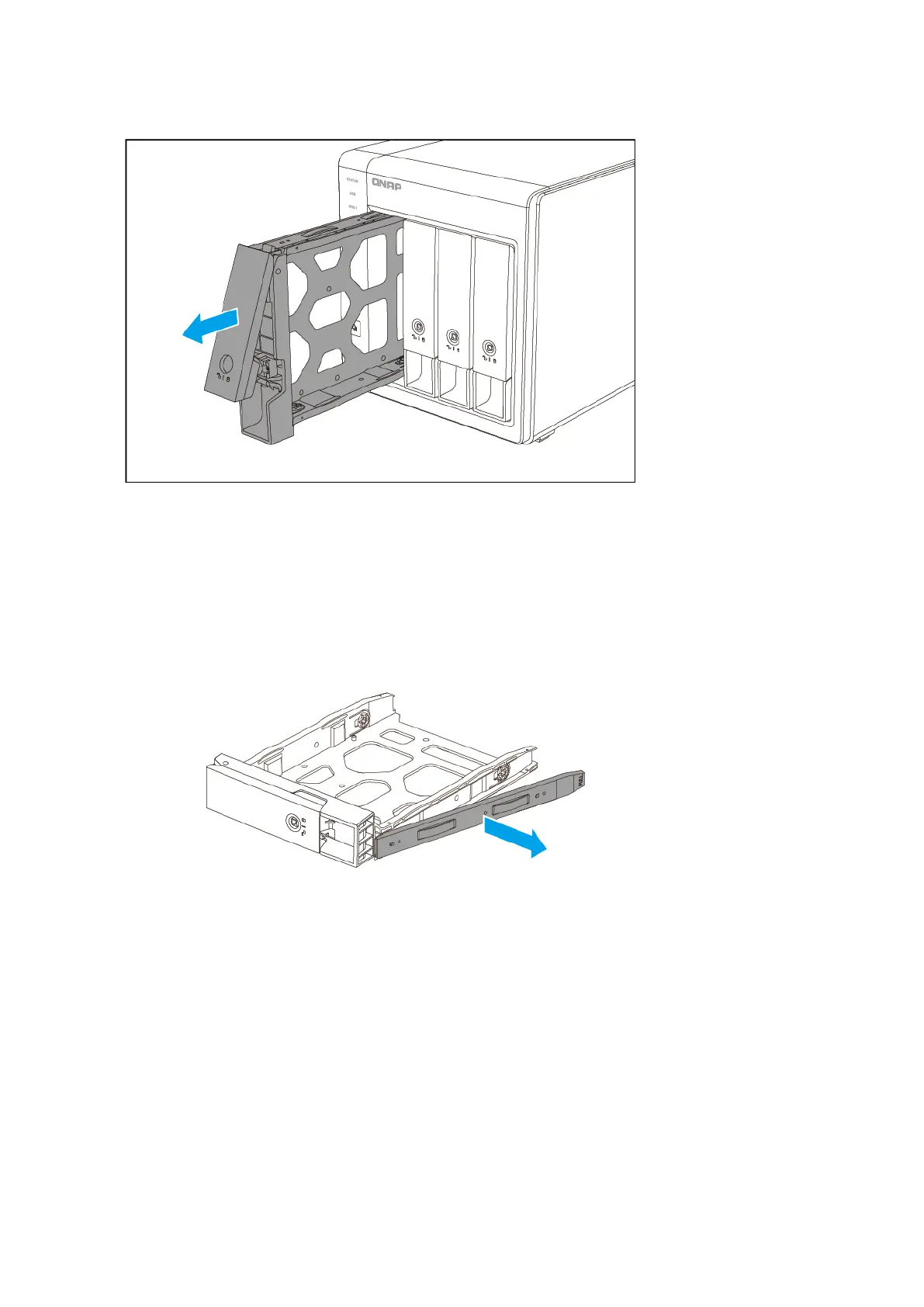

3. Install a drive on the tray.
a. Remove the right fastening panel from the tray.
b. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes
on the bottom of the tray.
c. Attach the screws.
QNAP External RAID Enclosure User Guide
Hardware Installation 17
