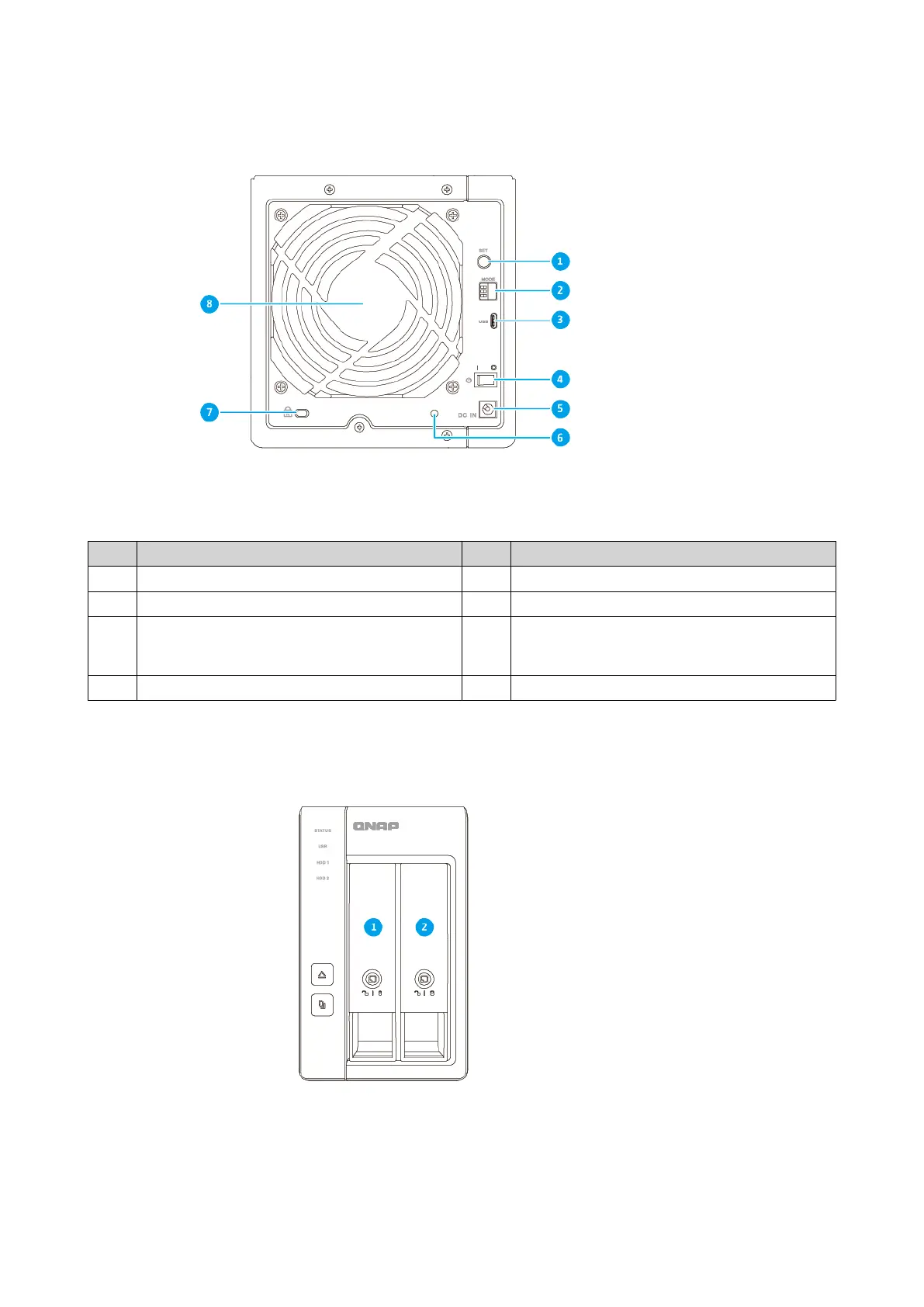

TR-004
No.
Component
No.
Component
1
Set button
5
Power input
2
Mode switch
6
USB cable clip slot
3
•
TR-002: USB 3.1 Gen 2 Type-C port
•
TR-004: USB 3.0 Type-C port
7
Kensington security slot
4
Power switch
8
System fan
Drive Numbering
TR-002
QNAP External RAID Enclosure User Guide
Product Overview
8
8
10
Table of Contents
Table of Contents
2
Preface
4
About this Guide
4
Audience
4
Document Conventions
4
Product Overview
5
About QNAP External RAID Enclosures
5
Hardware Specifications
5
Package Contents
6
Components
7
Front Panel
7
Rear Panel
8
Drive Numbering
9
Safety Information
10
Installation Requirements
11
Setting up the RAID Enclosure
11
Hardware Installation
13
Drive Installation
13
Installing 3.5-Inch Drives on 3.5-Inch Trays
13
Installing 2.5-Inch Drives on 3.5-Inch Trays
16
Connecting the RAID Enclosure to a NAS
20
Connecting the RAID Enclosure to a Computer
21
Attaching the USB Cable Clip
22
Removing a USB Cable from the USB Cable Clip
24
RAID Configuration
26
Supported RAID Types
26
Storage Modes
28
Storage Modes and Platform Support
28
Mode Switch
28
Configuring RAID Settings Using the Mode Switch
29
Basic Operations
31
Eject Button
31
USB One Touch Copy Button
31
Set Button
31
Leds
31
Audio Alert
32
Standby Mode
32
Troubleshooting
33
Forcing Storage & Snapshots or QNAP External RAID Manager to Recognize the RAID Enclosure
33
Hot-Swapping Failed Drives
33
Support and Other Resources
34
Glossary
35
Qts
35
QNAP External RAID Manager
35
Storage & Snapshots
35
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the QNAP TR-004-US and is the answer not in the manual?
Ask a question
