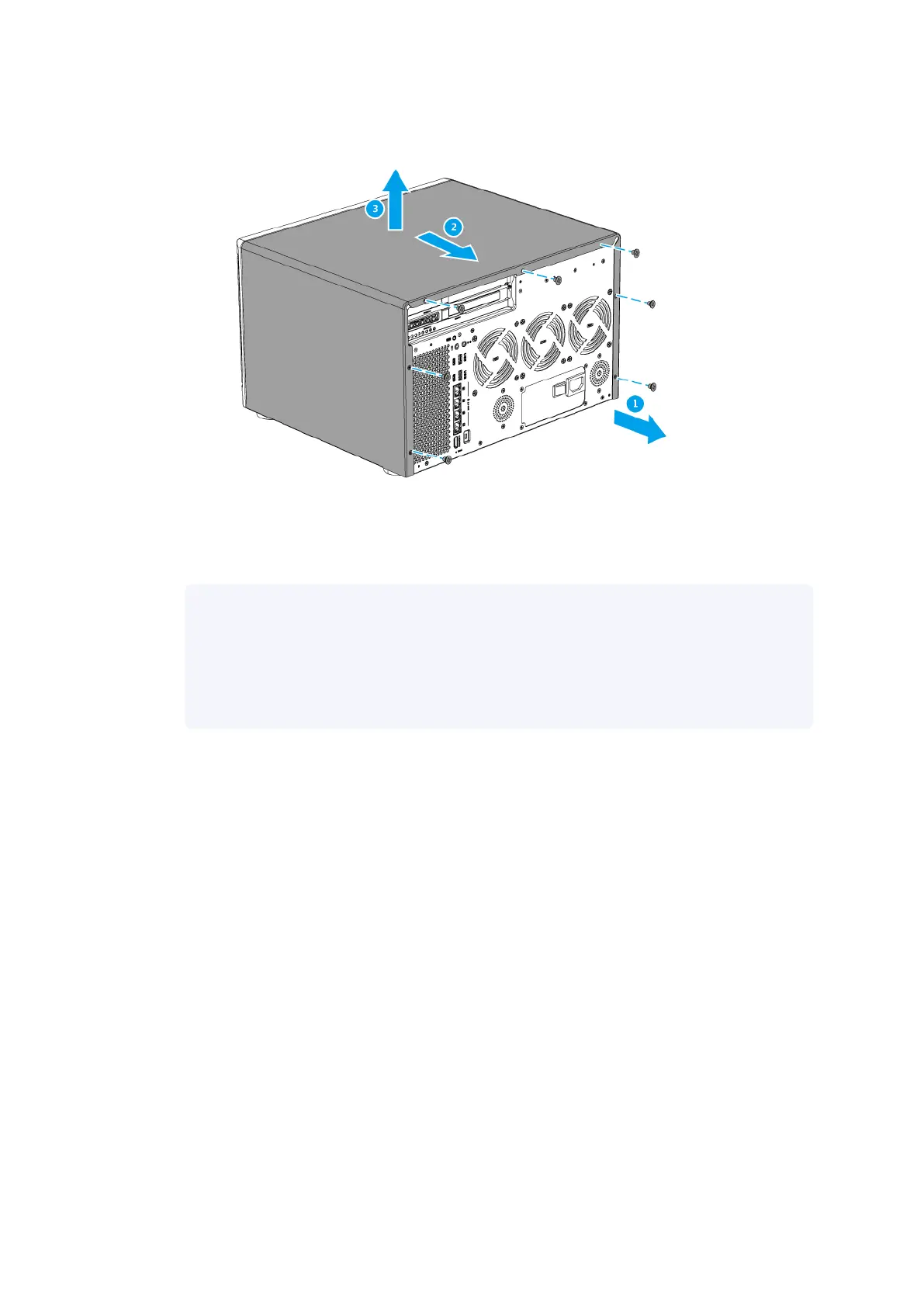

c. Lift the cover until it is completely detached from the chassis.
7. Remove expansion cards.
a. Remove the screw that secures the expansion card to the chassis.
Note
The pan head M3x5 screw requires a Phillips #2 screwdriver.
A torque of 5 kgf.cm (4.34 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
b. Hold the card by the edges.
| NAS Repair Manual
Category D NAS Models 99
