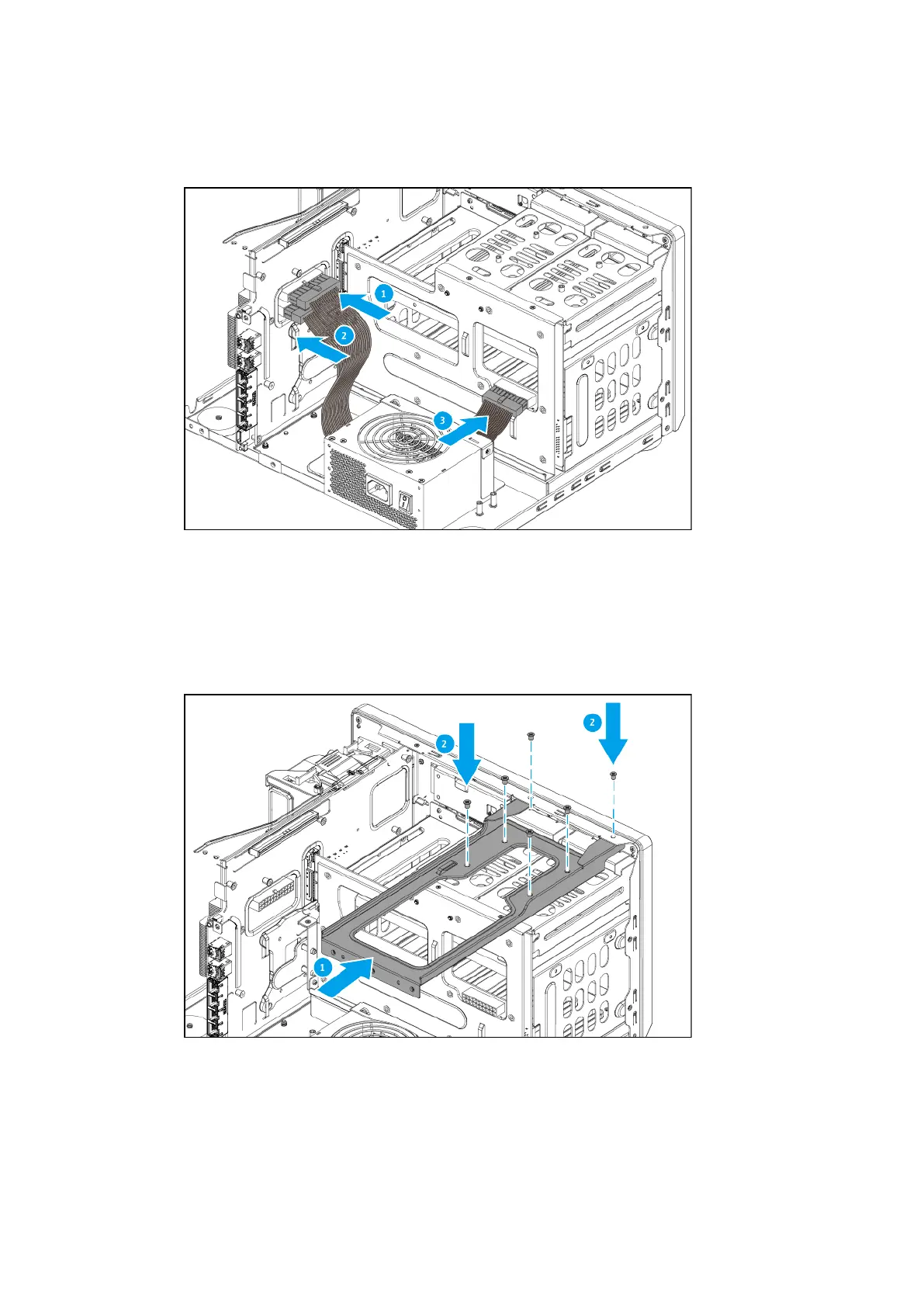

e. Attach the power cables to the system board.
f. Attach the power cable to the backplane.
11. Attach the top bracket to the chassis.
a. Slide in the top bracket.
b. Align the holes in the top bracket to the screw holes on the chassis.
c. Attach the screws.
| NAS Repair Manual
Category D NAS Models 126
