Note
The pan head M3x5 screws require a Phillips #2 screwdriver.
A torque of 7 kgf.cm (6.08 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.

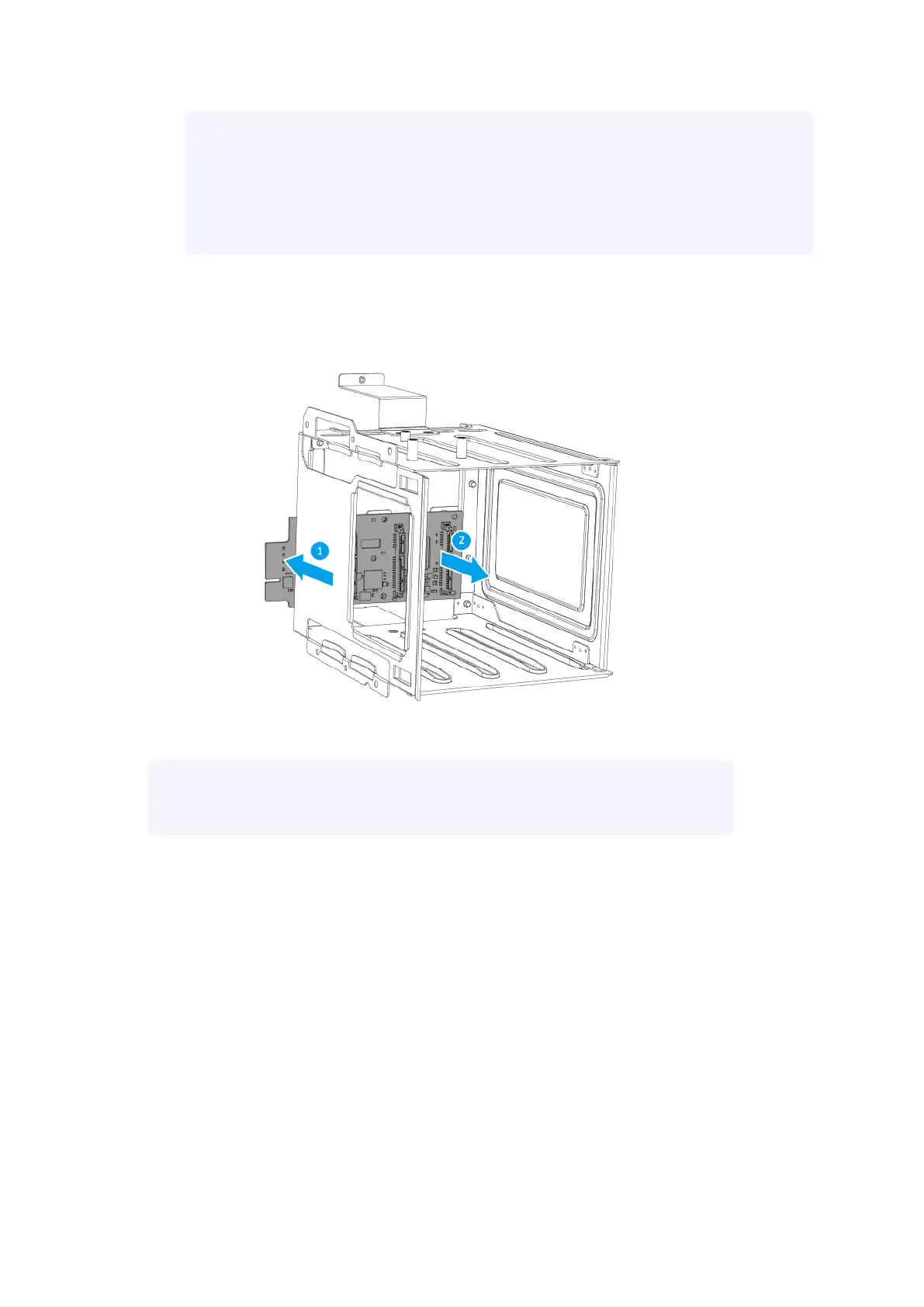

b. Lightly push back the connector end of the backplane so that the other end of the
backplane is lifted o of the drive cage surface.
c. Carefully remove the backplane from the drive cage.
12. Remove the system board tray.
Note
The system board tray and the rear panel are connected as a single component.
| NAS Repair Manual
Category A NAS Models 19
