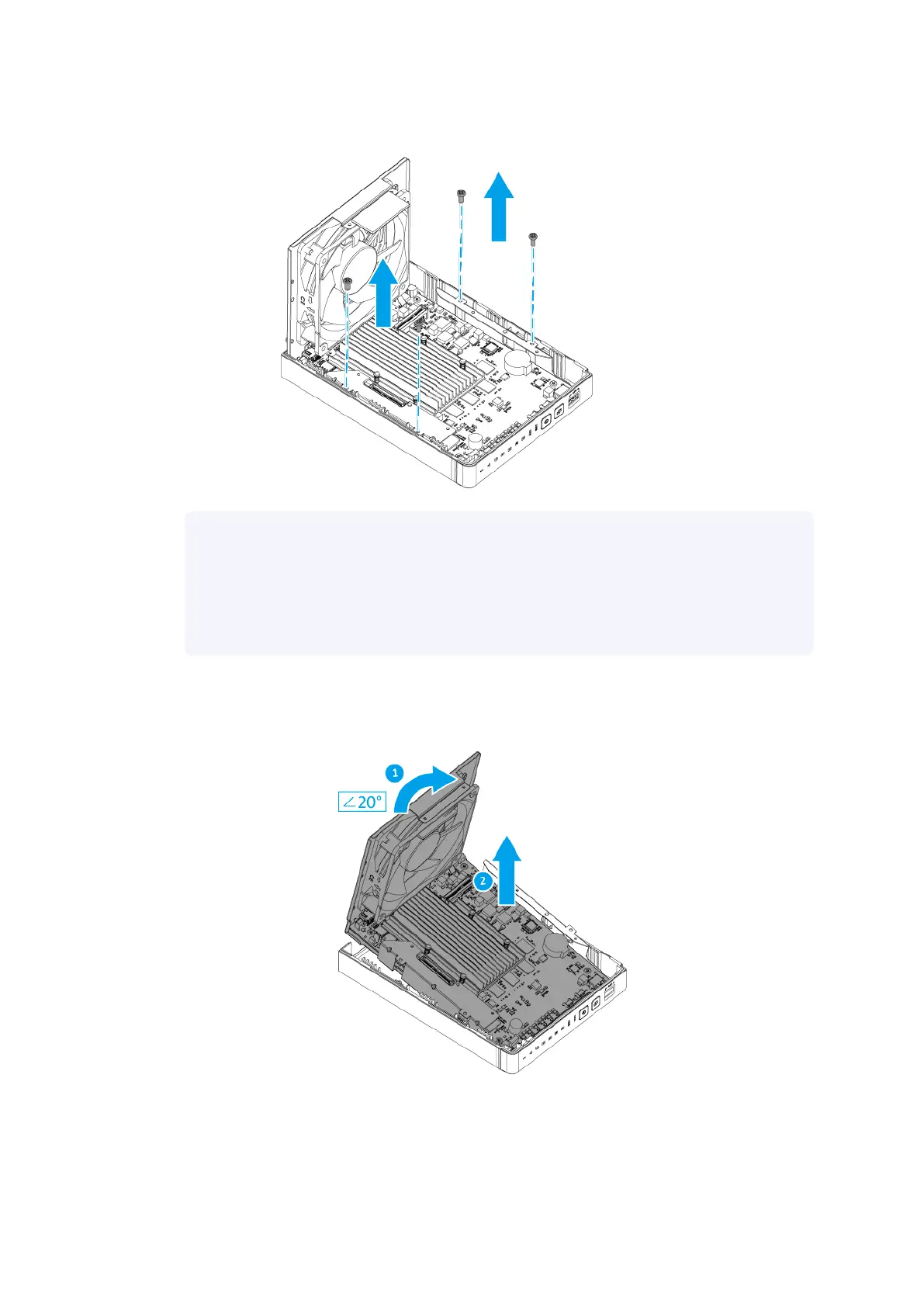

a. Remove the screws that secure the tray to the left panel.
Note
• The pan head self-tapping D3x6 screws require a Phillips #2 screwdriver.
• A torque of 5 kgf.cm (4.34 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
b. Tilt the rear end of the tray up by about 20 degrees.
c. Lift the tray out of the left panel.
| NAS Repair Manual
Category A NAS Models 20
