QNAP TS-212P User Manual

79

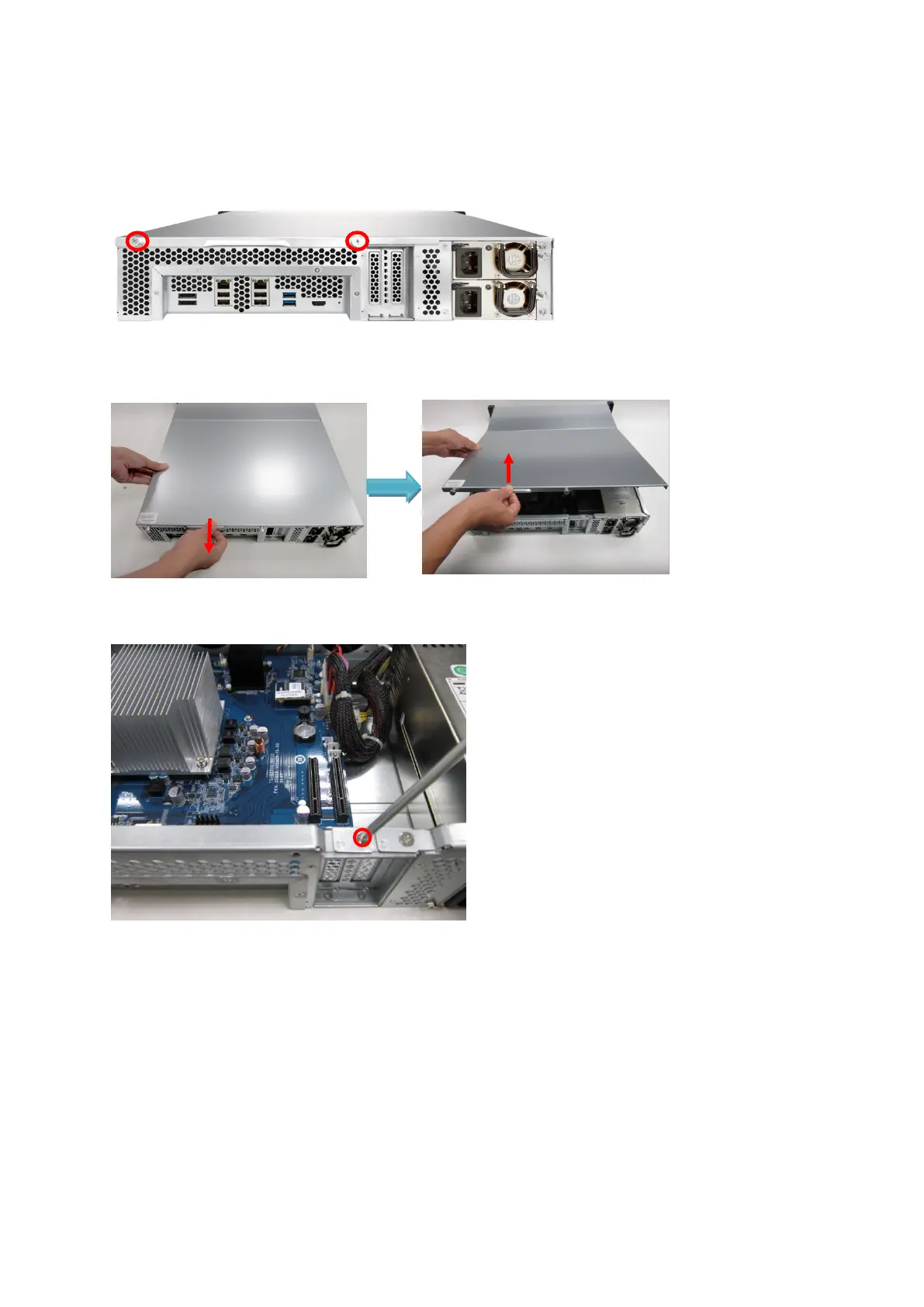

prevent electrostatic discharge. The crocodile clip should be connected to the ground.
3. Loosen the two screws on the rear of the NAS.
4. Hold the notch at the edge of the top cover. Remove the top cover in both hands.
5. Loosen the screw and remove the expansion slot cover.
6. Grasp the edge of the expansion card. Align the notch on the gold edge of the card with
the notch in the PCIe slot. Insert the network expansion card to the PCIe slot until it
cannot go any further.

QNAP TS-212P Specifications

General

RAID levels	0, 1, JBOD
RAID support	Yes
Storage drive capacity	8 GB
Storage drive interface	Serial ATA II
Storage drives installed	No
Installed storage drive type	-
Supported storage drive types	HDD
Total installed storage capacity	0 TB
Maximum supported storage capacity	8 TB
Number of storage drives installed	0
Number of storage drives supported	2
Processor family	Marvell
Processor frequency	1.66 GHz
Flash memory	16 MB
Internal memory	512 GB
Internal memory type	DDR3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Product color	White
Type	NAS
Power consumption (sleep)	6 W
Power consumption (typical)	13 W

Weight and Dimensions

Depth	218.4 mm
Width	85 mm
Height	165.5 mm
Weight	910 g
Package weight	2200 g
