QNAP TS-212P User Manual

94

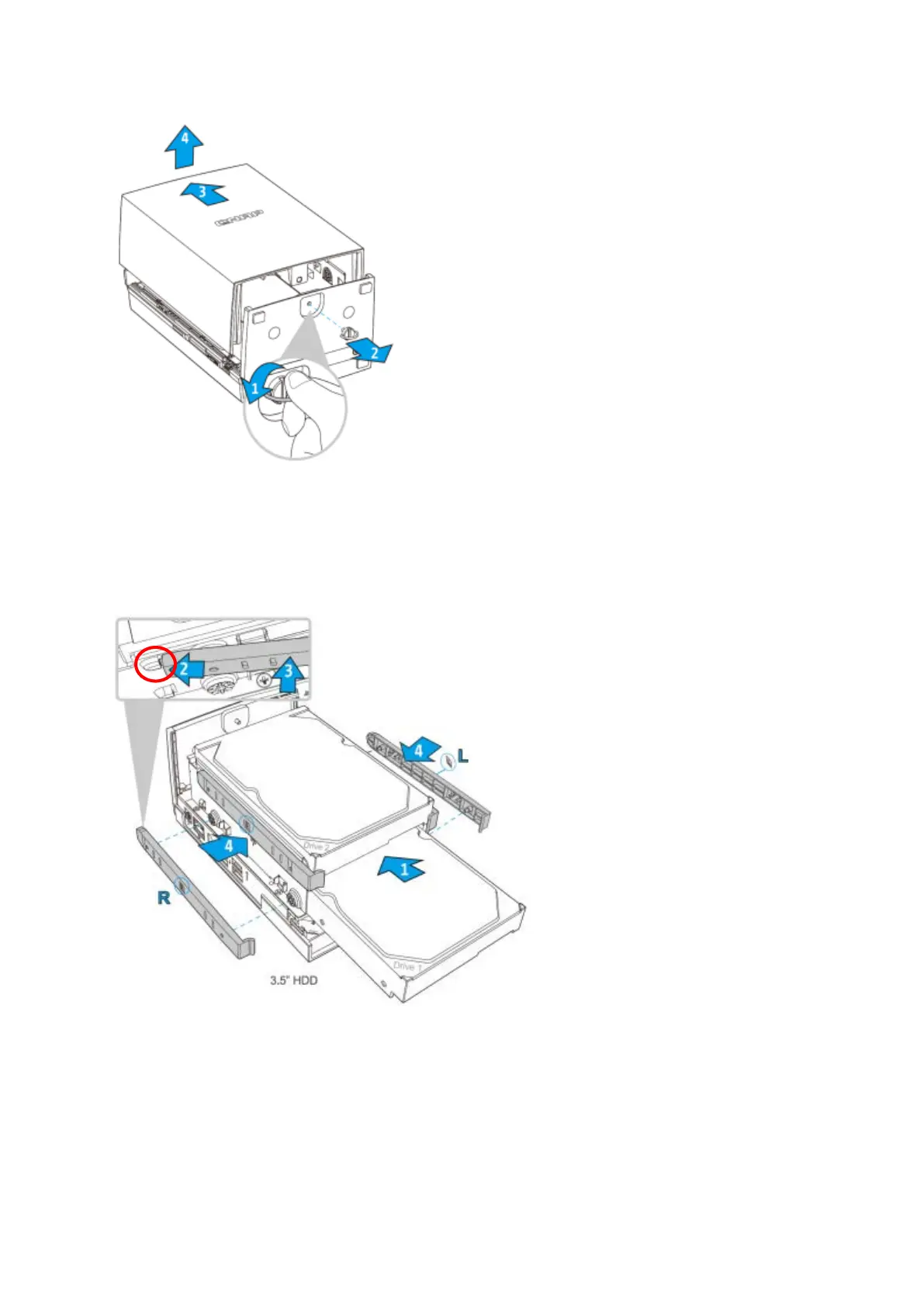

2. Put the hard drive in the hard drive cradle and slide it forwards to lock it into the SATA
connector. Clip in both brackets, slide the bracket into the hole in point 2 before pressing
the bracket towards the HDD (for the TAS-268, repeat the same step for the second
drive.)
3. Align point a on the case cover with point b on the front of the NAS (see figure below).
Push forward the case cover (step 2) and fasten the toolless screw to secure the case
cover.

QNAP TS-212P Specifications

General

RAID levels	0, 1, JBOD
RAID support	Yes
Storage drive capacity	8 GB
Storage drive interface	Serial ATA II
Storage drives installed	No
Installed storage drive type	-
Supported storage drive types	HDD
Total installed storage capacity	0 TB
Maximum supported storage capacity	8 TB
Number of storage drives installed	0
Number of storage drives supported	2
Processor family	Marvell
Processor frequency	1.66 GHz
Flash memory	16 MB
Internal memory	512 GB
Internal memory type	DDR3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Product color	White
Type	NAS
Power consumption (sleep)	6 W
Power consumption (typical)	13 W

Weight and Dimensions

Depth	218.4 mm
Width	85 mm
Height	165.5 mm
Weight	910 g
Package weight	2200 g
