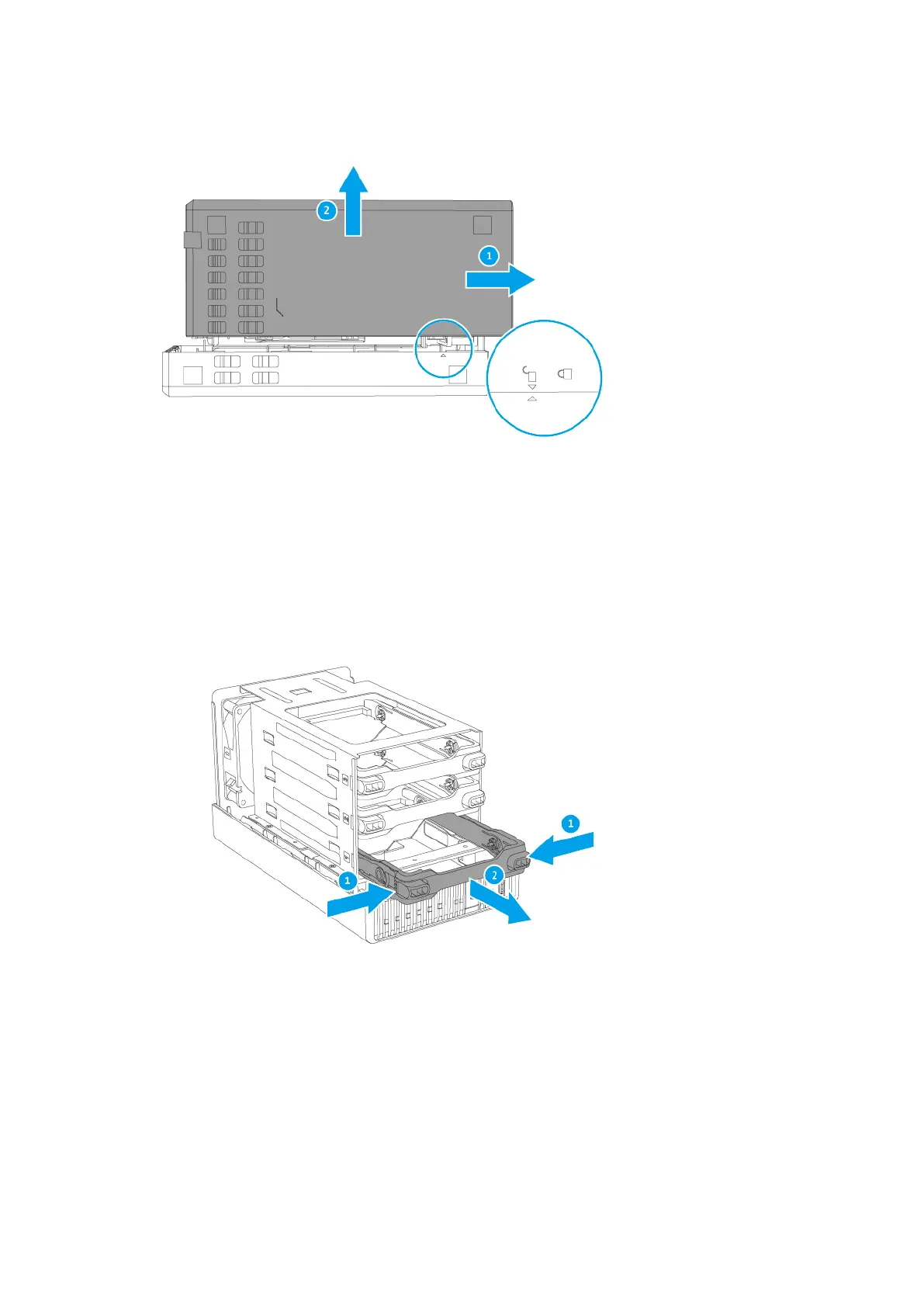

5. Remove each drive tray caddy.
a. Squeeze the clips.
b. Pull out the caddies.
6. Install a heatsink on the M.2 SSD controller.
a. Locate the controller on the M.2 SSD.
The controller location varies depending on the model and manufacturer of the M.2 SSD.
For details, refer to the documentation or contact the manufacturer.
b. Remove the protective film from the bottom of the heatsink.
TS-351 User Guide
Installation and Configuration 23
