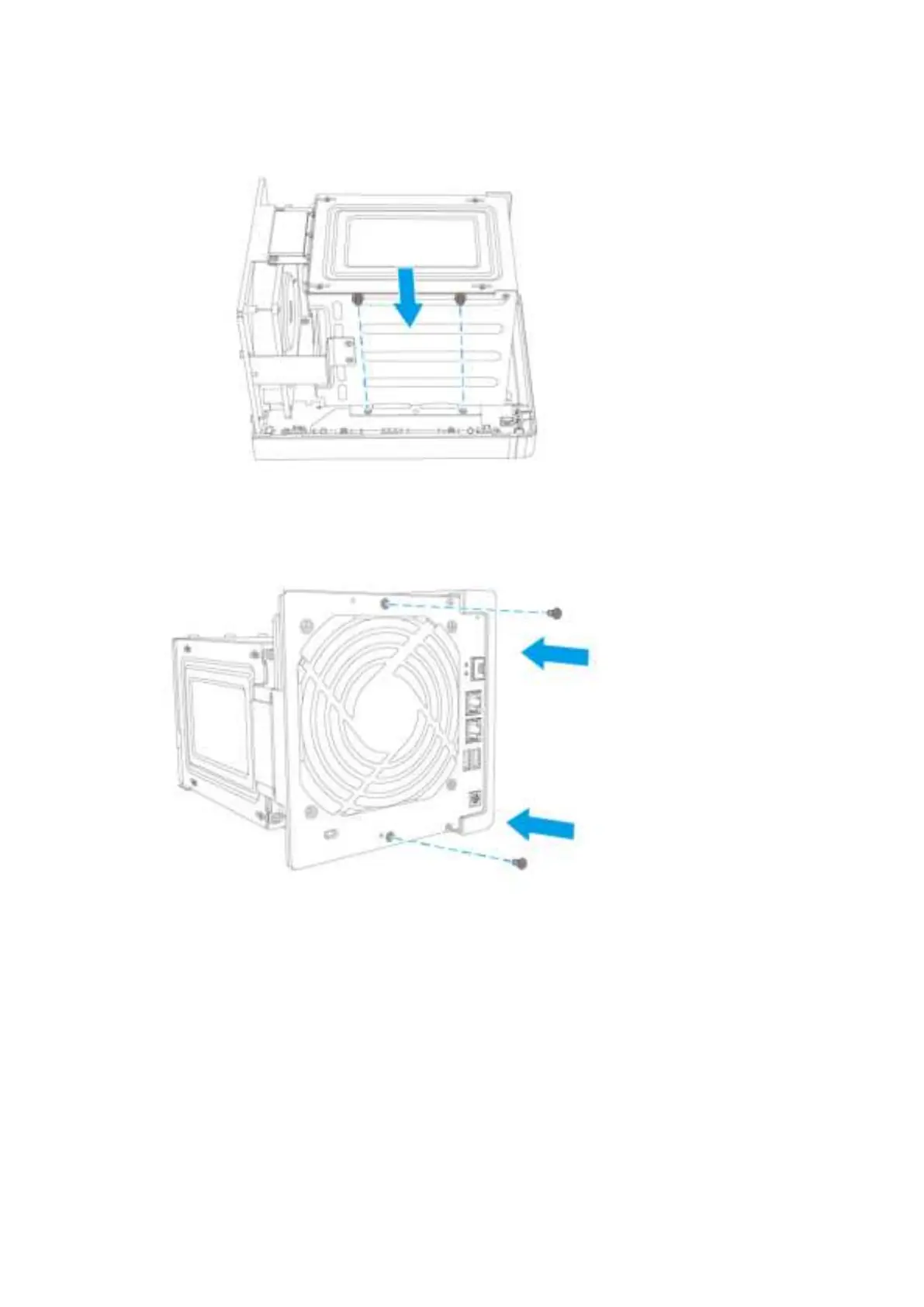

14. Attach the top and bottom screws on the back of the NAS.
15. Attach the case cover.
a. Place the NAS on its left side.
b. Align the triangle icon on the case cover with the unlock icon on the chassis.
c. Slide the case cover onto the chassis.
d. Slide the case cover to the left so that the triangle aligns with the lock icon.
TS-431KX/TS-431X3 User Guide
Installation and Configuration 28
