QNAP TS-453mini User Manual

105

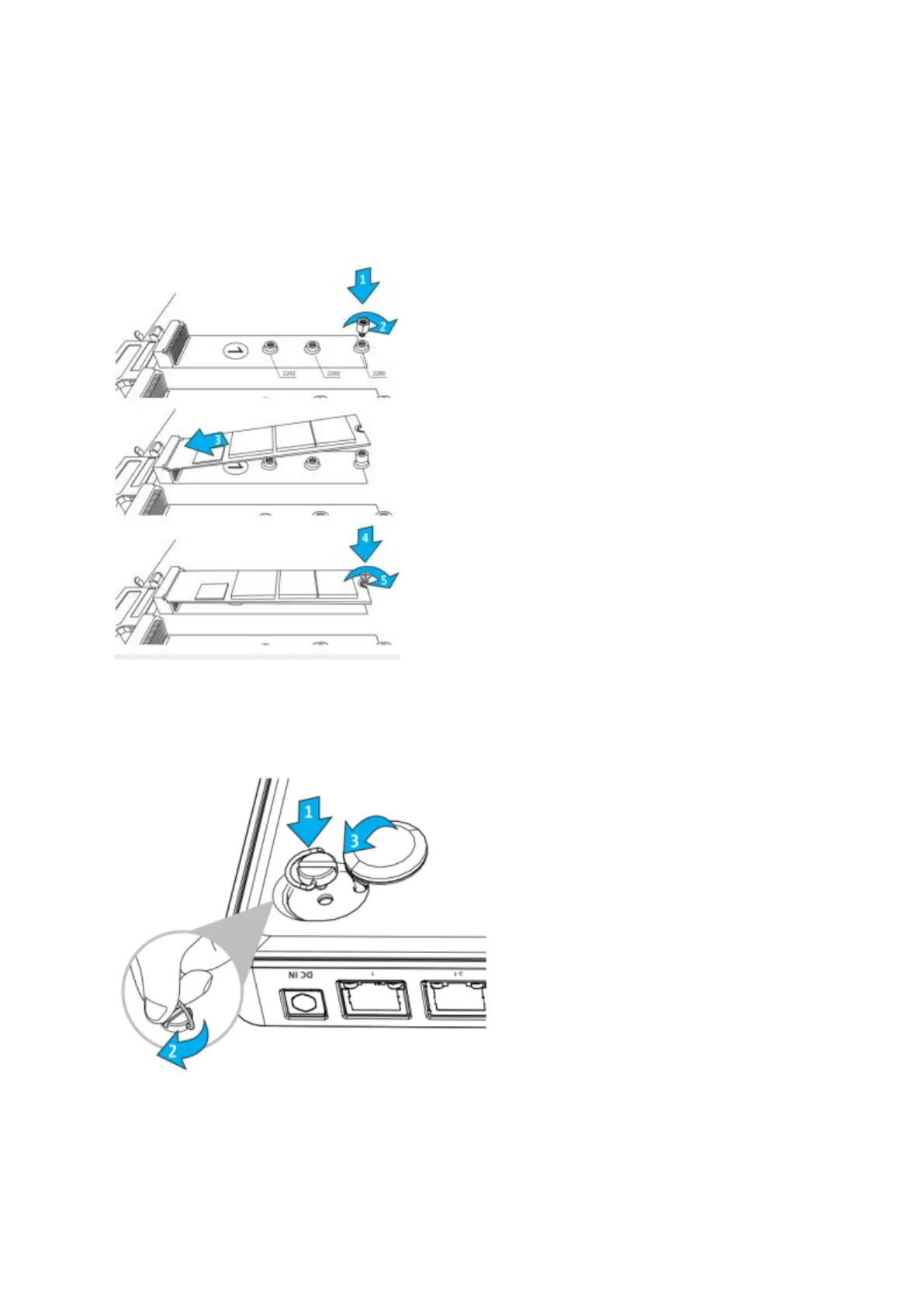

2. TBS-453A supports 3 different sizes of M.2 SSD (2242, 2260, and 2280). Move and
fasten the riser screw to the appropriate location according your M.2 SSD size. Then
insert the M.2 SSD to the slot and secure it in place with the supplied screws.
3. Secure the bottom cover back to the system by installing the screws of four corners
(clockwise). Then put the rubber feet back as well.
8.2.2 TVS-473, TVS-673, TVS-873

QNAP TS-453mini Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
RAID support	Yes
Storage drive size	2.5/3.5 \
Storage drive capacity	0 GB
Storage drive interface	Serial ATA III
Storage drives installed	No
Installed storage drive type	-
Supported storage drive types	HDD & SSD
Total installed storage capacity	0 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	0
Number of storage drives supported	4
Processor family	Intel® Celeron®
Processor frequency	2 GHz
Flash memory	512 MB
Memory slots	2
Internal memory	2 GB
Internal memory type	DDR3L
Maximum RAM supported	8 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Cooling type	Active
Product color	Black
Number of fans	1 fan(s)
Type	NAS
Operating system version	4.1.2
Operating system installed	QNAP Turbo System
AC input voltage	100-240 V
Power supply location	Built-in
Power consumption (sleep)	1.04 W
Power consumption (typical)	30.23 W
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	AC, LAN (RJ-45)

Weight and Dimensions

Depth	200 mm
Width	151 mm
Height	210 mm
Weight	2000 g
Package weight	3400 g
