QNAP TS-453mini User Manual

74

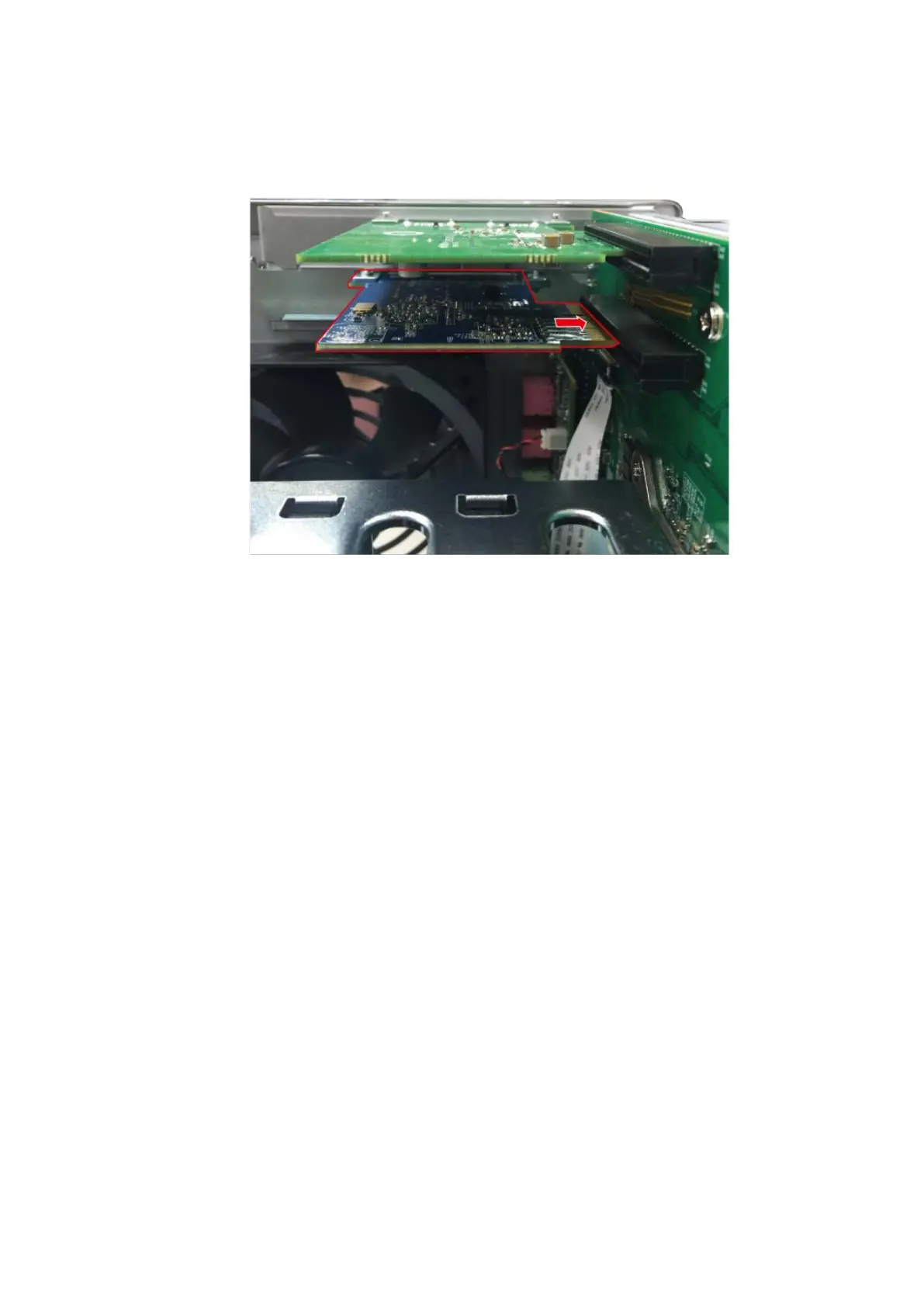

network expansion card to the break in the PCIe slot. Fully insert the network
expansion card to the expansion slot.
10. Fasten screw to lock in card.
11. Place PSU back to its original position and fasten the 5 screws that were removed in
steps 6 and 7.
12. Close the case cover and fasten the screws. Connect the power adaptor and cables
to the NAS.
13. To verify that the network expansion card has been installed correctly and is being
recognized by the operating system, log into QTS as administrator and go to
“Control Panel” > “System Settings” > “System Status” > “Network Status” and
check for the total number of network interfaces.
6.4 TS-431XU, TS-463U, TS-463U-RP, TVS-471 Series
1. Turn off the NAS. Disconnect the power adaptor, network cable(s), and any other
connectors or cables from the NAS.
2. Before installing the network expansion card, put on an antistatic wrist strap to
prevent electrostatic discharge. The crocodile clip should be connected to the ground.

QNAP TS-453mini Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
RAID support	Yes
Storage drive size	2.5/3.5 \
Storage drive capacity	0 GB
Storage drive interface	Serial ATA III
Storage drives installed	No
Installed storage drive type	-
Supported storage drive types	HDD & SSD
Total installed storage capacity	0 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	0
Number of storage drives supported	4
Processor family	Intel® Celeron®
Processor frequency	2 GHz
Flash memory	512 MB
Memory slots	2
Internal memory	2 GB
Internal memory type	DDR3L
Maximum RAM supported	8 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Cooling type	Active
Product color	Black
Number of fans	1 fan(s)
Type	NAS
Operating system version	4.1.2
Operating system installed	QNAP Turbo System
AC input voltage	100-240 V
Power supply location	Built-in
Power consumption (sleep)	1.04 W
Power consumption (typical)	30.23 W
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	AC, LAN (RJ-45)

Weight and Dimensions

Depth	200 mm
Width	151 mm
Height	210 mm
Weight	2000 g
Package weight	3400 g
