QNAP TS-453mini User Manual

107

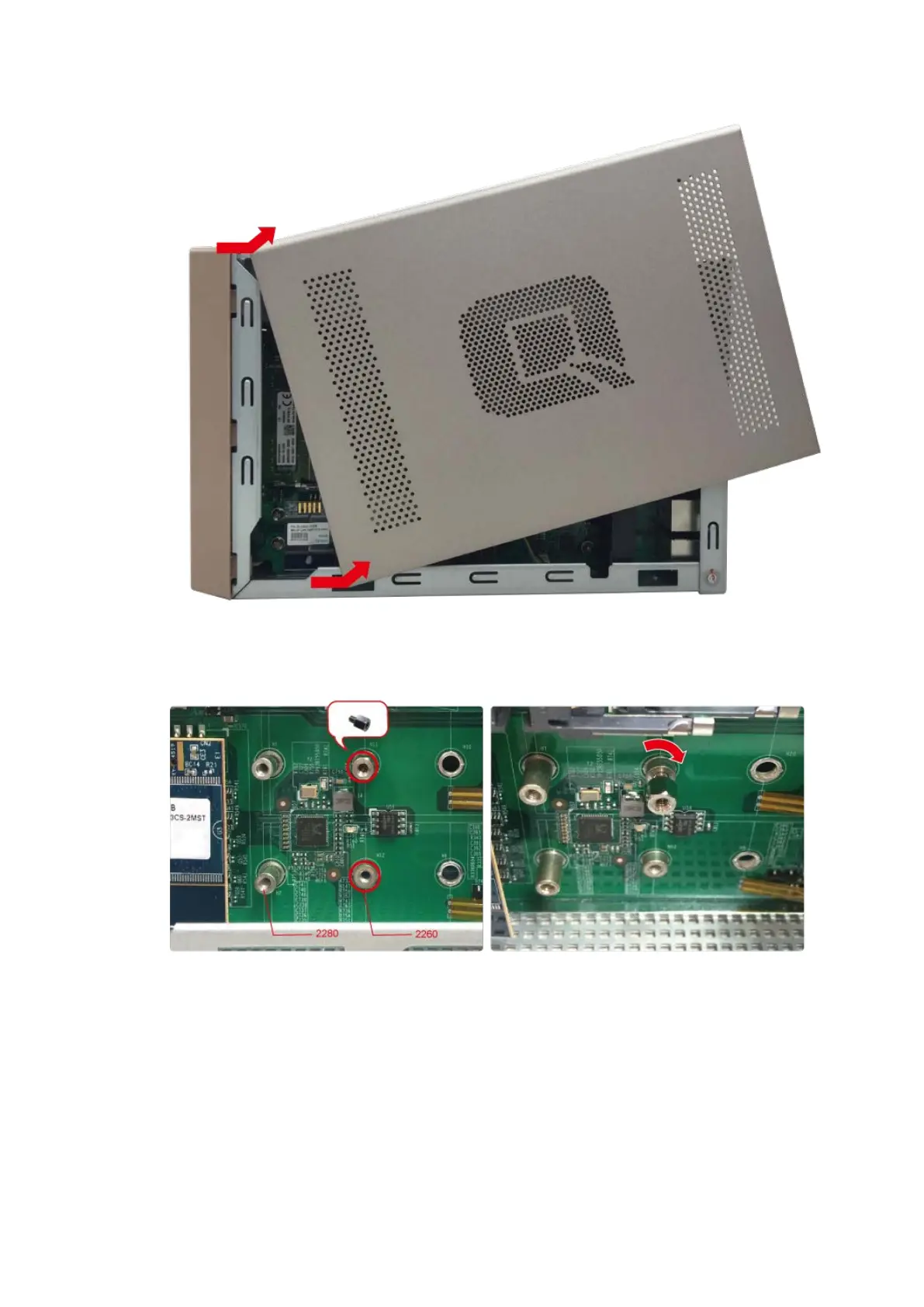

5. [Optional: for M.2 2260 SSD only] Insert and fasten riser screw.
6. Hold the M.2 SSD module by grasping its edges. Align the notch on the module with
the ridge in the M.2 socket. Gently slide the memory module into the socket at a
15-degree angle. Ensure that the module is firmly inserted into slot. Do not force
the M.2 drive into socket.

QNAP TS-453mini Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
RAID support	Yes
Storage drive size	2.5/3.5 \
Storage drive capacity	0 GB
Storage drive interface	Serial ATA III
Storage drives installed	No
Installed storage drive type	-
Supported storage drive types	HDD & SSD
Total installed storage capacity	0 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	0
Number of storage drives supported	4
Processor family	Intel® Celeron®
Processor frequency	2 GHz
Flash memory	512 MB
Memory slots	2
Internal memory	2 GB
Internal memory type	DDR3L
Maximum RAM supported	8 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Cooling type	Active
Product color	Black
Number of fans	1 fan(s)
Type	NAS
Operating system version	4.1.2
Operating system installed	QNAP Turbo System
AC input voltage	100-240 V
Power supply location	Built-in
Power consumption (sleep)	1.04 W
Power consumption (typical)	30.23 W
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	AC, LAN (RJ-45)

Weight and Dimensions

Depth	200 mm
Width	151 mm
Height	210 mm
Weight	2000 g
Package weight	3400 g
