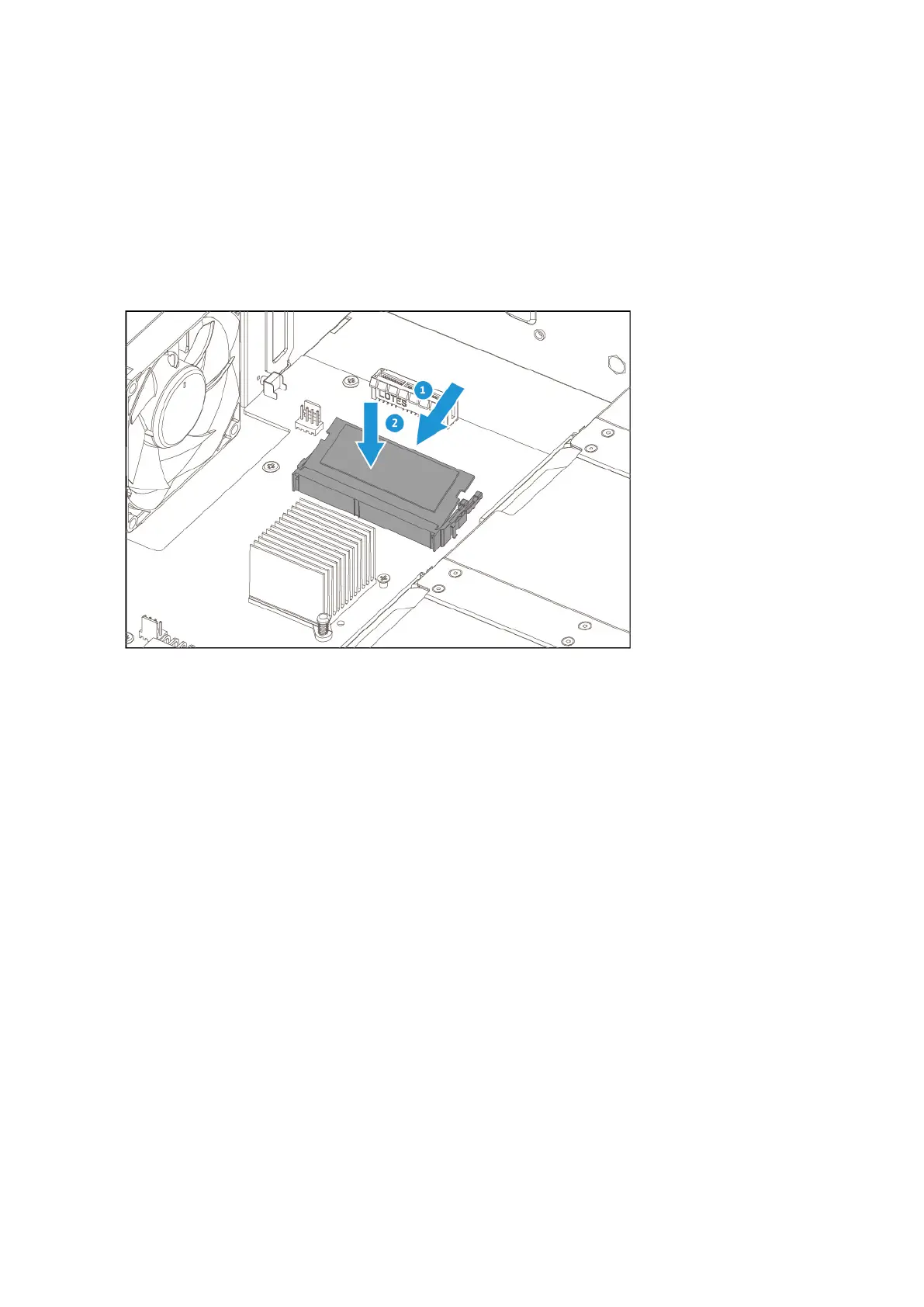

6. Install a new module.
a. Align the notch with the ridge in the slot.
b. Insert the module into the slot.
c. Verify that the metal connectors are completely inserted into the slot.
d. Carefully press down on the module until the retention clips lock the module into place.
7. Attach the case cover.
a. Place the cover on the device.
b. Slide the cover forward.
c. Tighten the screws.
TS-x64U User Guide
Installation and Conguration 22
