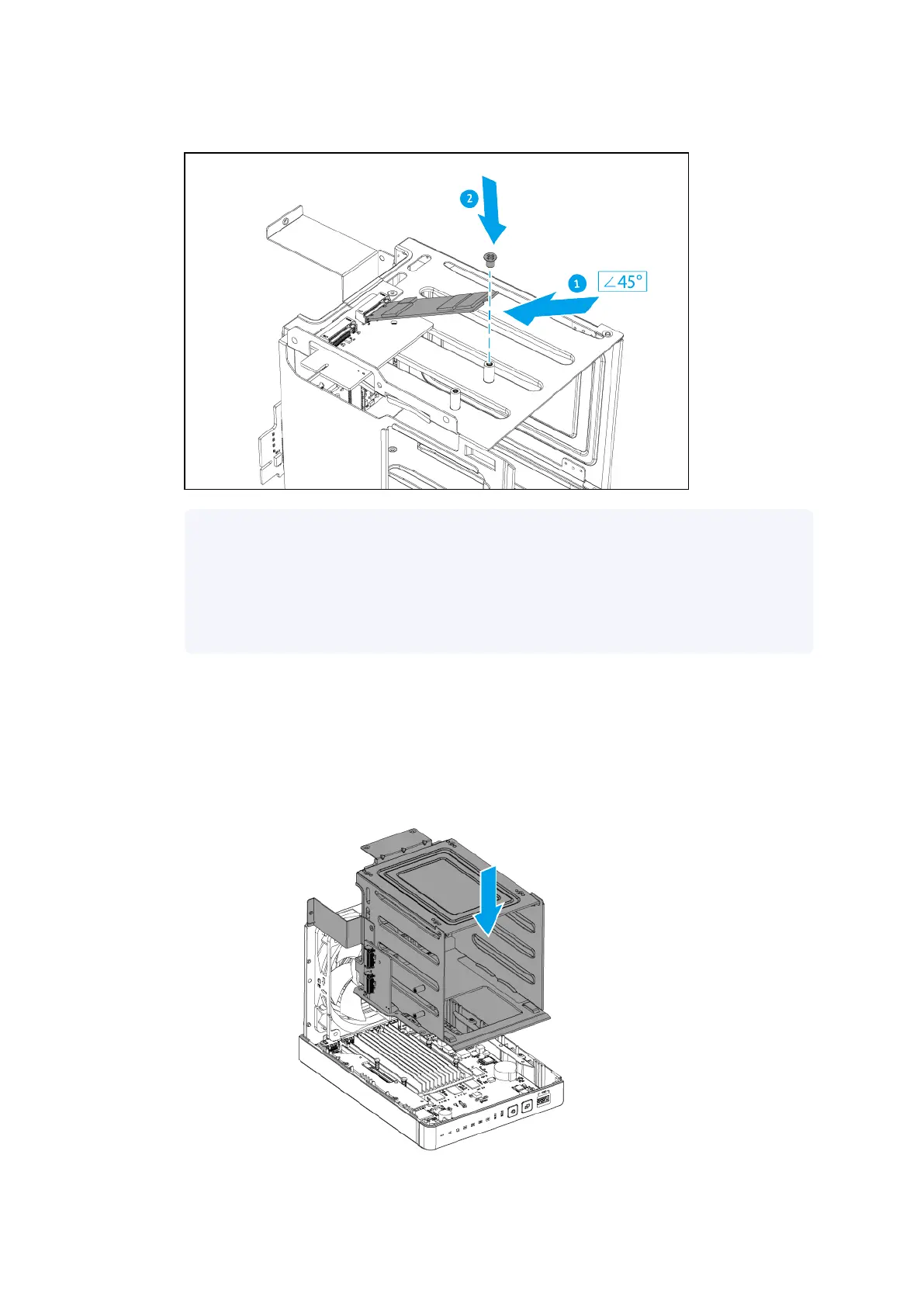

b. Attach the screw.
Note
• The pan head M2.5x3 screw requires a Phillips #2 screwdriver.
• A torque of 3 kgf.cm (2.60 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
c. Optional: Install an additional M.2 SSD.
7. Attach the drive cage.
a. Align the connectors on the riser card and backplane to the slots on the system board.
b. Firmly push down on the drive cage so that the connectors are inserted into the slots.
| NAS Repair Manual
Category A NAS Models 32
