QNAP TS-53E Series Repair Manual

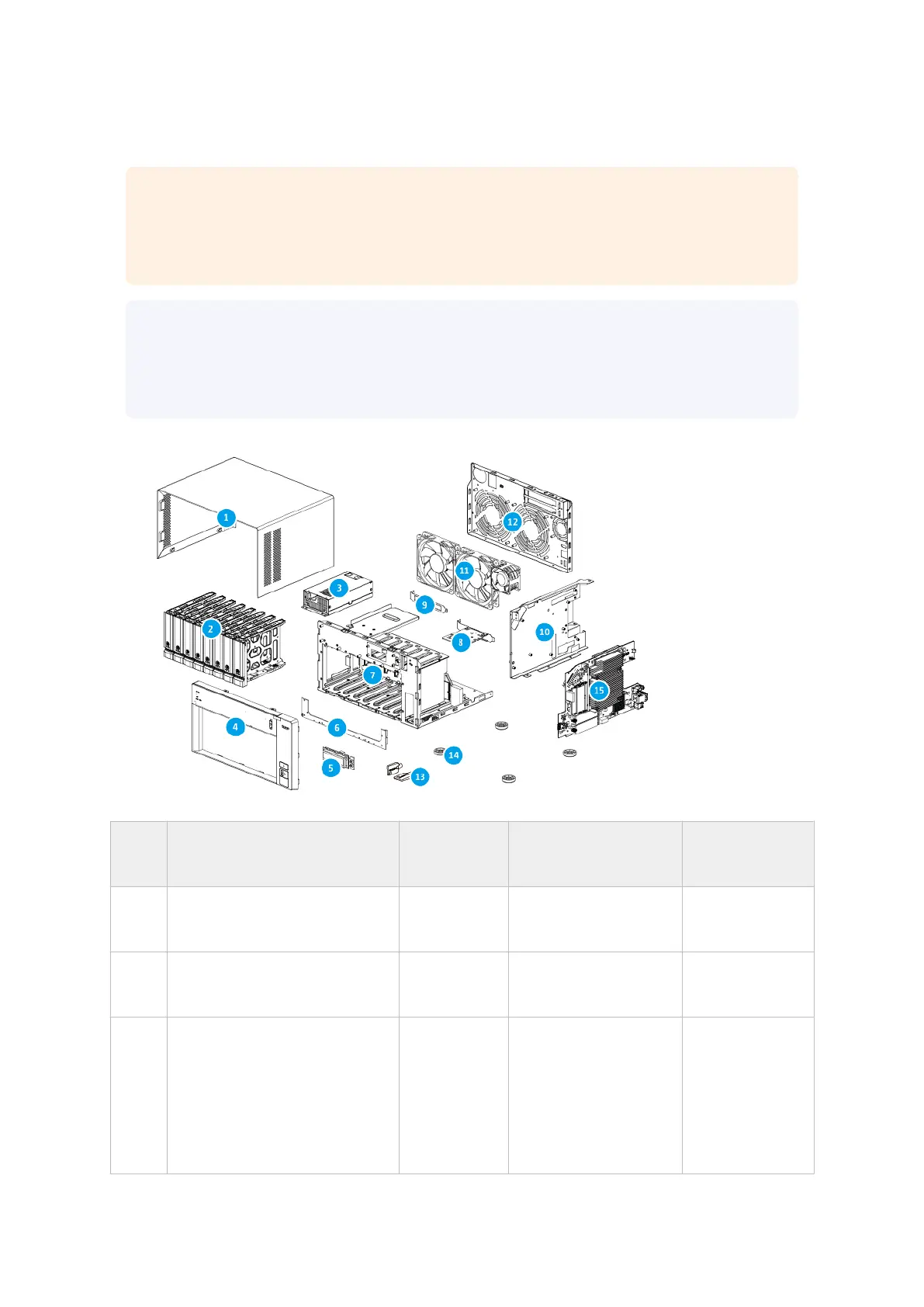

TVS-h874T components and screws
Important
The information presented here apply only to the representative model of the NAS category.
While all models within a NAS category have the same general structural design, their
components and screws may dier in size, quantity, and other specications.
Note
Recommended torque values are provided for electric screwdrivers. To avoid damage to the
screw or component, the actual torque setting should not exceed ± 0.5 kgf.cm (0.43 lbf.in) of
the recommended value, unless specied otherwise.
No. Component
(Quantity)
Screw Type
(Quantity)
Screwdriver
(Torque)
Attached To
1 Case cover
(1)
- - -
2 Drive tray (3.5-inch)
(8)
- - -
3 Power supply unit
(1)
Flat head
• M3x4
(3)
• M3x5
(2)
Phillips #2 Chassis
| NAS Repair Manual
Category C NAS Models 93
