QNAP TS-53E Series Repair Manual

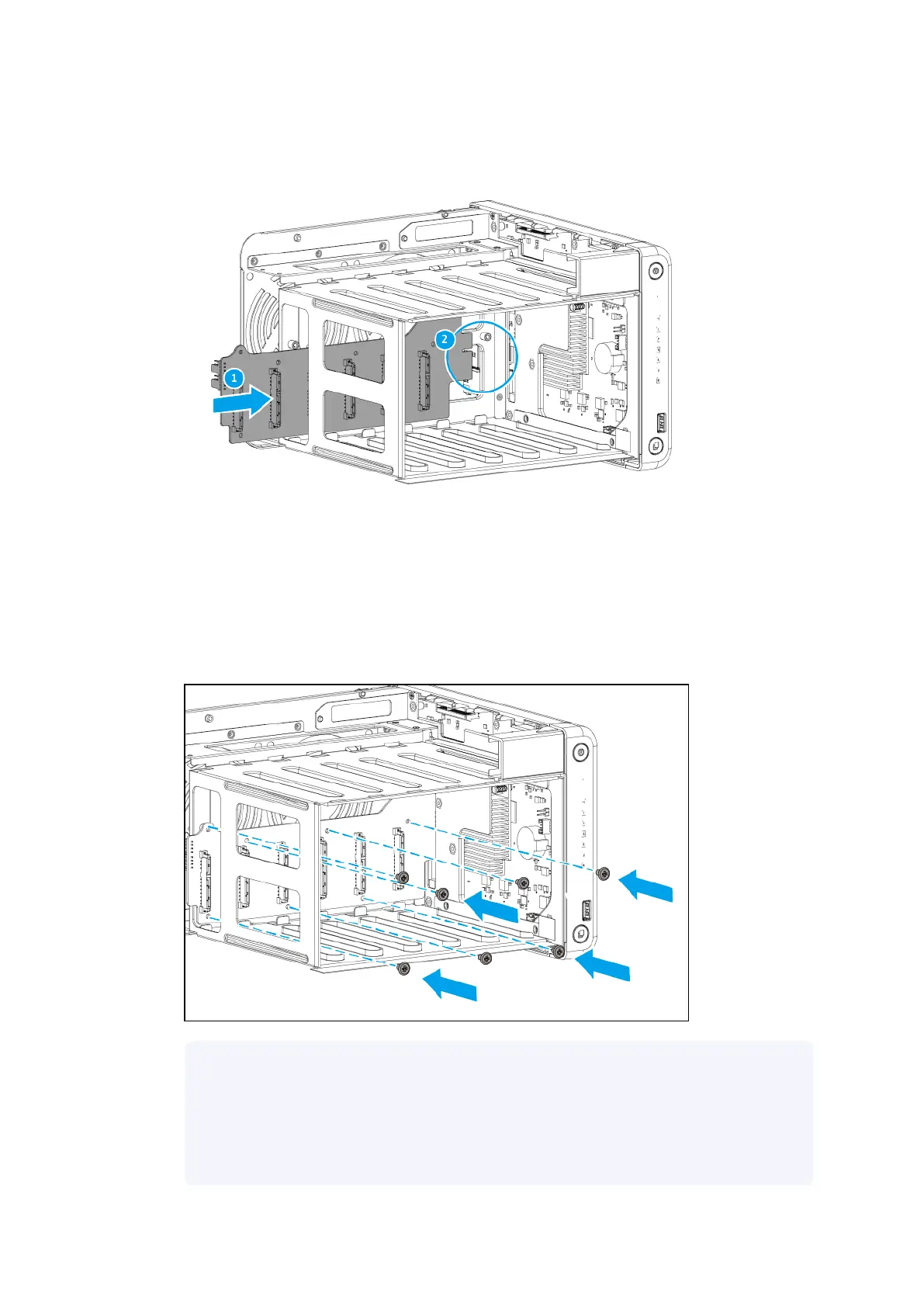

a. Carefully insert the connector end of the backplane into the hole at the back of the drive
cage.
b. Align the holes on the backplane to the positioning posts and screw holes on the drive
cage.
c. Place the backplane on the drive cage so that the positioning posts keep the backplane in
place.
d. Attach the screws.
Note
• The pan head M3x5 screws require a Phillips #2 screwdriver.
• A torque of 7 kgf.cm (6.08 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
| NAS Repair Manual
Category B NAS Models 52
