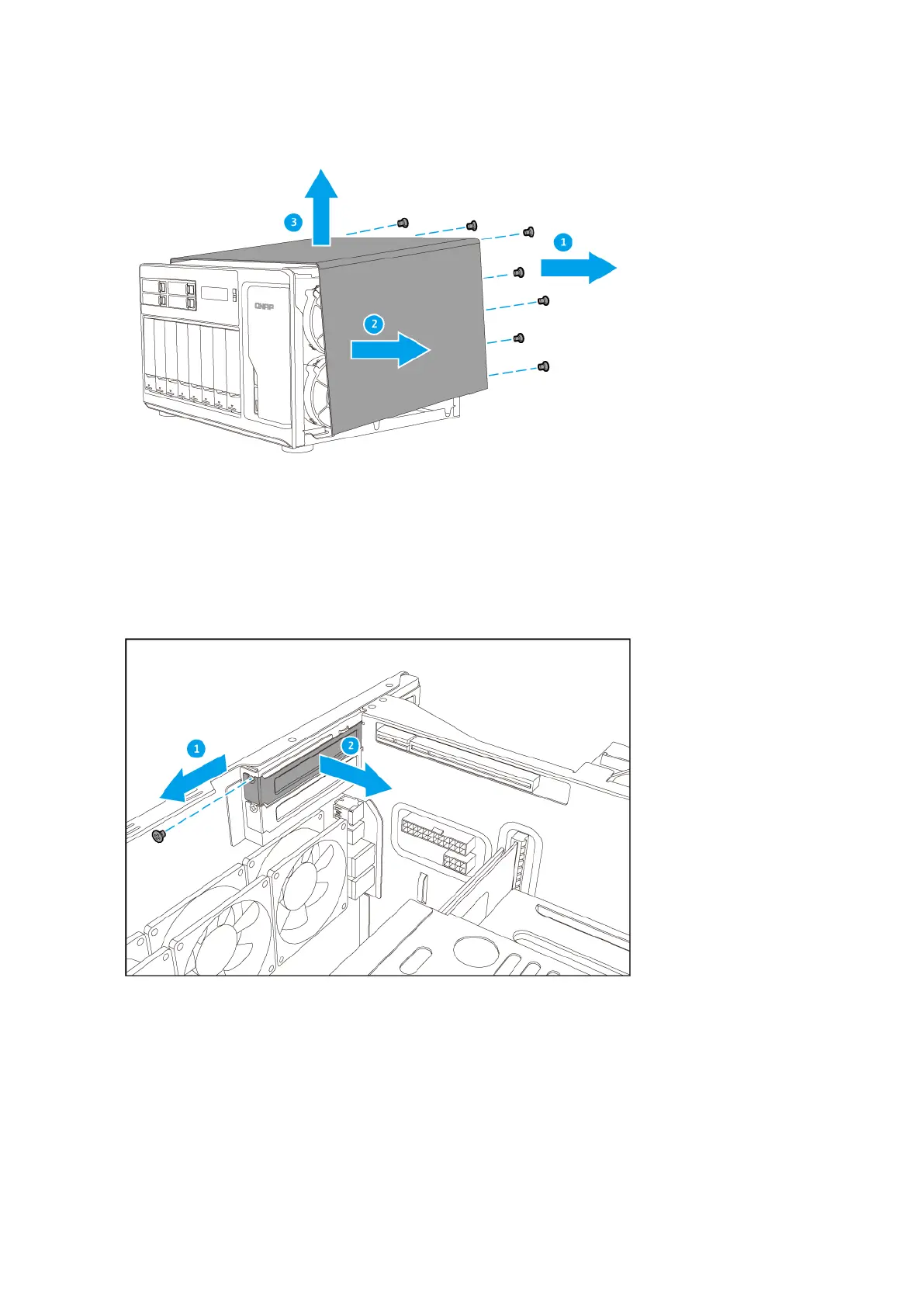

6. Remove the PCIe cover.
a. Remove the screw that secures the cover to the chassis.
b. Pull the cover away from the slot.
PCIe 3.0 x8
TS-x77 User Guide
Installation and Configuration 30
