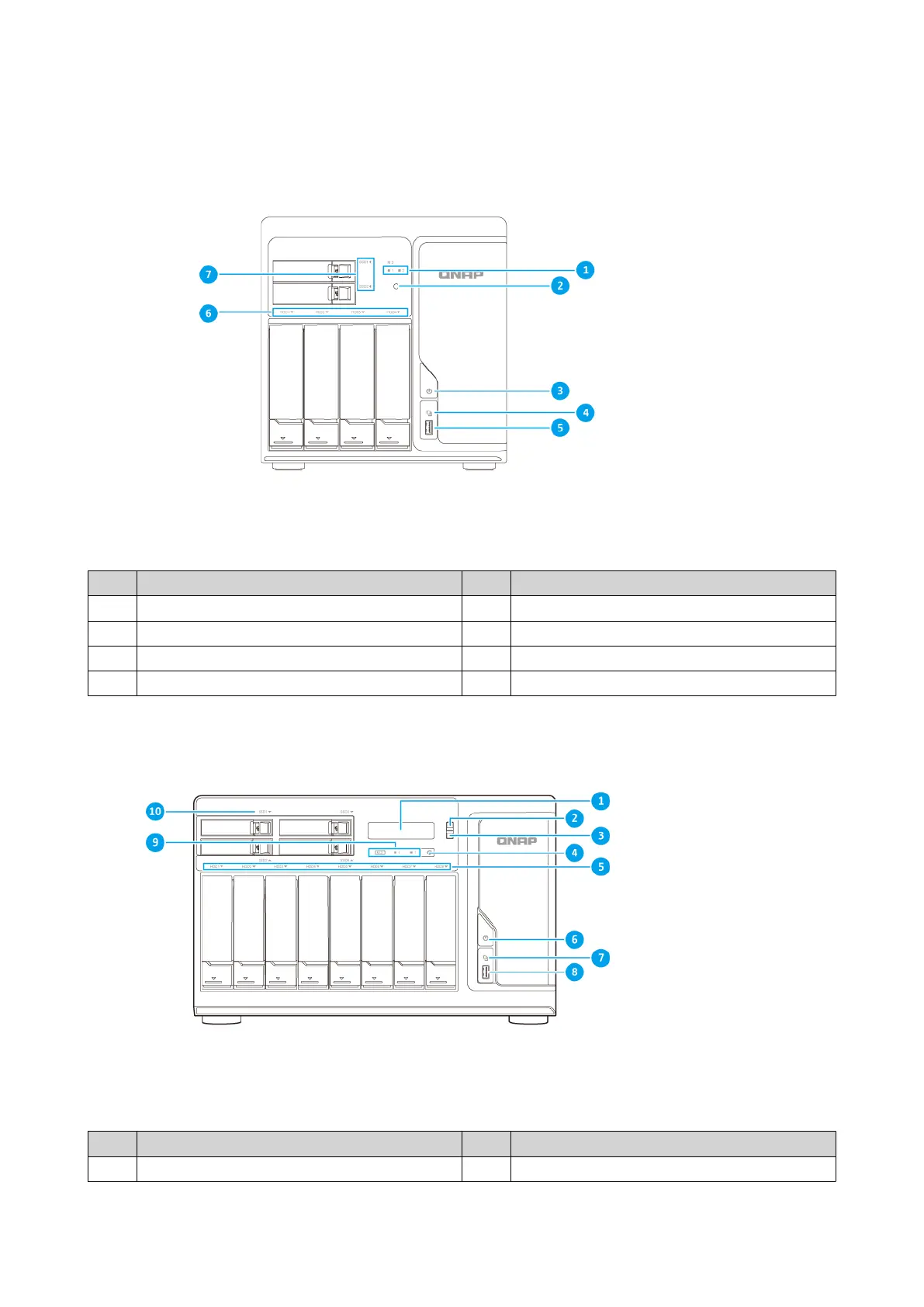

Front Panel
TS-677
No.
Component
No.
Component
1
M.2 SSD LEDs
5
USB 3.0 One-T
ouch Copy port
2
Infrared (IR) receiver
6
Drive LEDs
3
Power button
7
SSD LEDs
4
USB One-T
ouch Copy button
-
-
TS-877 and TS-1277
No.
Component
No.
Component
1
LCD panel
6
Power button
TS-x77 User Guide
Product Overview
8
8
10
Table of Contents
Table of Contents
2
Preface
4
About this Guide
4
Audience
4
Document Conventions
4
Product Overview
5
About the TS-X77
5
Hardware Specifications
5
Package Contents
8
Components
8
Front Panel
9
Rear Panel
10
Right Panel
11
Left Panel
11
Front Drive Numbering
12
Installation Requirements
13
Setting up the NAS
13
Installation and Configuration
15
Hardware Installation
15
Drive Installation
15
Installing Expansion Cards
30
Replacing Memory Modules
35
Replacing CPU Fans
40
QTS Installation
45
Installing QTS Using Qfinder Pro
46
Installing QTS Using the Cloud Key
47
Basic Operations
50
Power Button
50
Reset Button
50
USB One-Touch Copy Button
50
LCD Panel
51
Viewing TCP/IP Settings
51
Configuring TCP/IP Settings
51
Viewing Drive Information
52
Viewing Volume Information
52
Viewing System Information
53
Powering off the NAS
53
Restarting the NAS
53
Changing the LCD Password
53
LCD Error Messages
54
Leds
54
Beep Alarm
56
Troubleshooting
57
Forcing Qfinder Pro or Myqnapcloud to Locate the NAS
57
Hot-Swapping Failed Drives
57
Recovering Unintentionally Removed Healthy Drives
58
Support and Other Resources
58
Glossary
59
Cloudkey
59
Cloudlink
59
Myqnapcloud
59
Myqnapcloud ID
59
Qfinder Pro
59
Qts
59
Notices
60
Limited Warranty
60
Disclaimer
60
GNU Public License
60
FCC Notice
68
CE Notice
68
Sj/T 11364-2006
69
4
Based on 1 rating
