QNAP TS 77 Series User Manual

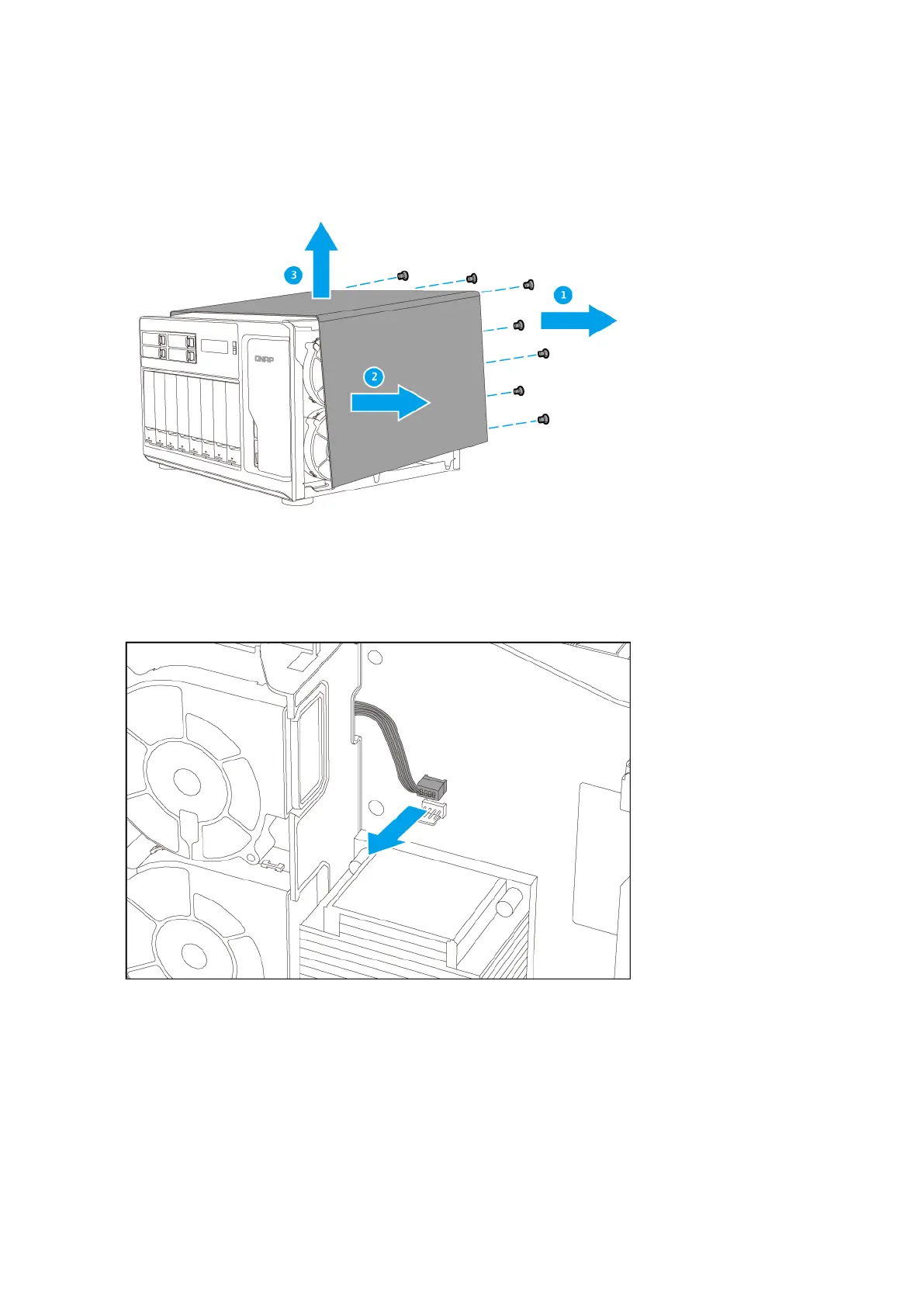

b. Slide the cover back.
c. Pull the cover up until it completely detaches from the chassis.
5. Remove the fan module.
a. Disconnect the fan cable from the system board.
b. Remove the screw that secures the fan module to the chassis.
c. Press the clip and then pull the fan module away from the system board.
TS-x77 User Guide
Installation and Configuration 35
