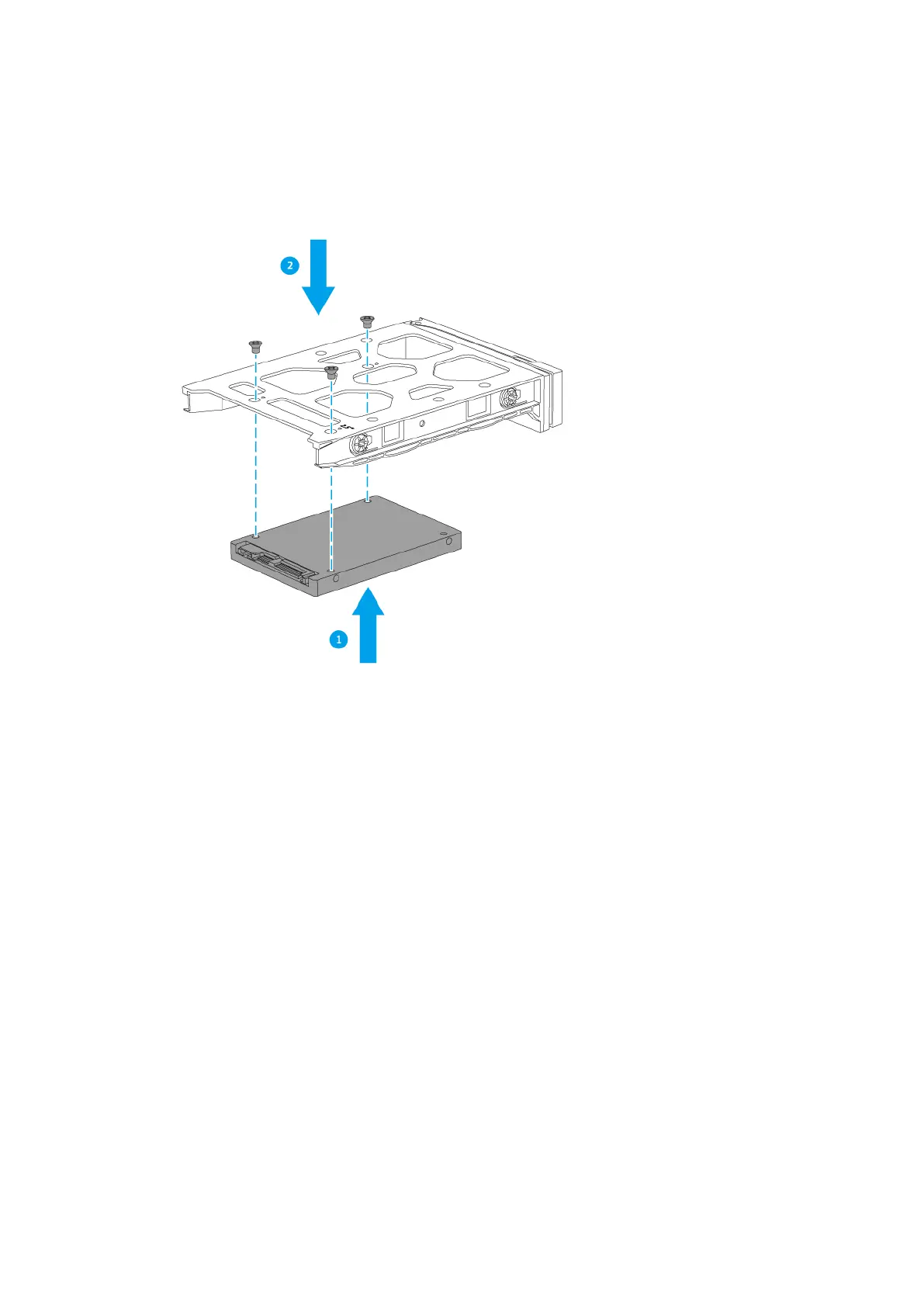

b. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes
on the bottom of the tray.
c. Attach the screws to lock the drive to the tray.
4. Load the tray into the bay.
a. Slide the tray into the drive bay.
b. Push the handle.
c. Slide the lock up.
TS-963X User Guide
Installation and Configuration 14
