OPA-102/101
OPERATION MANUAL
- 9 -

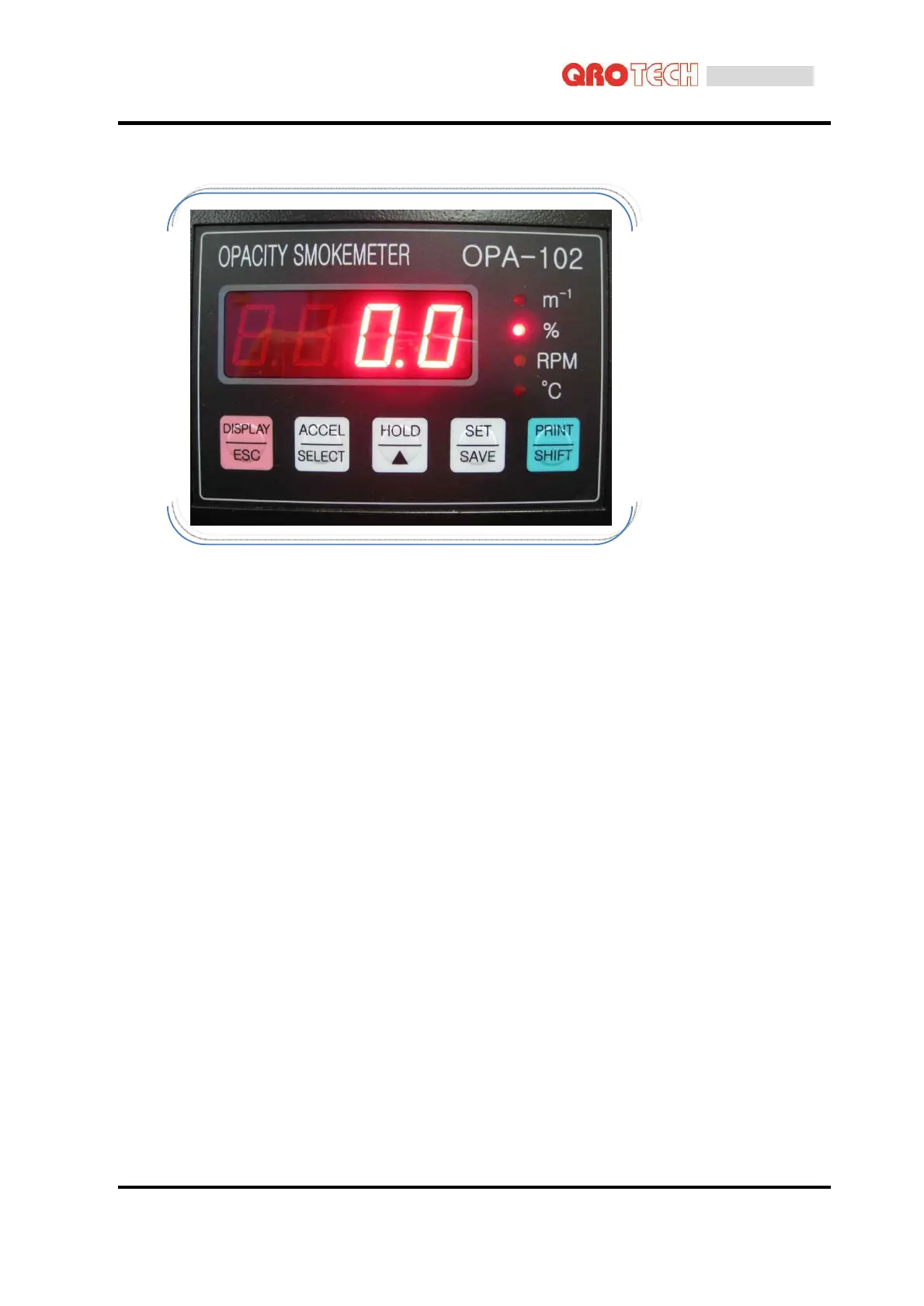

3-5 Display and Function Key structure
① DISPLAY : Select display screen
② ACCEL : FREE ACCELERATION TEST (Inspection mode)
③ HOLD : Holding the displayed screen (Ref.8-3. Hold set-up)
There are two kinds of hold mode, which are HOLD and PEAK HOLD.
ü HOLD : Pressing HOLD key, displayed screen is being held. Once more pressing
releases the Hold.
ü PEAKHOLD : Pressing HOLD key, highest value of the measure is displayed on the
screen and is being held. Once more pressing releases the Hold.
④ SET : Moving from Measuring mode to Set-up mode. (Ref. Section 8, Set-up)
⑤ PRINT : Printing
⑥ ESC : Moving from Set-up mode, Free acceleration test to Measuring mode.
⑦ SELECT : Moving from one Set-up mode to another Set-up mode.
⑧ ▲ : Changing from each set-up value
⑨ SAVE : Save the each set up value
⑩ ▼(SHIFT) : Changing from each set-up value
